4.3 Standard wiring

4.3.1 Main circuit connection diagram

4.3.1.1 For VFDs of AC 3PH 380 V (-15%)–440 V (+10%)
1PH 220V optional
3PH power supply
380V±15%
50/60Hz
1PH 220V optional
3PH power supply
380V± 15%
50/60Hz

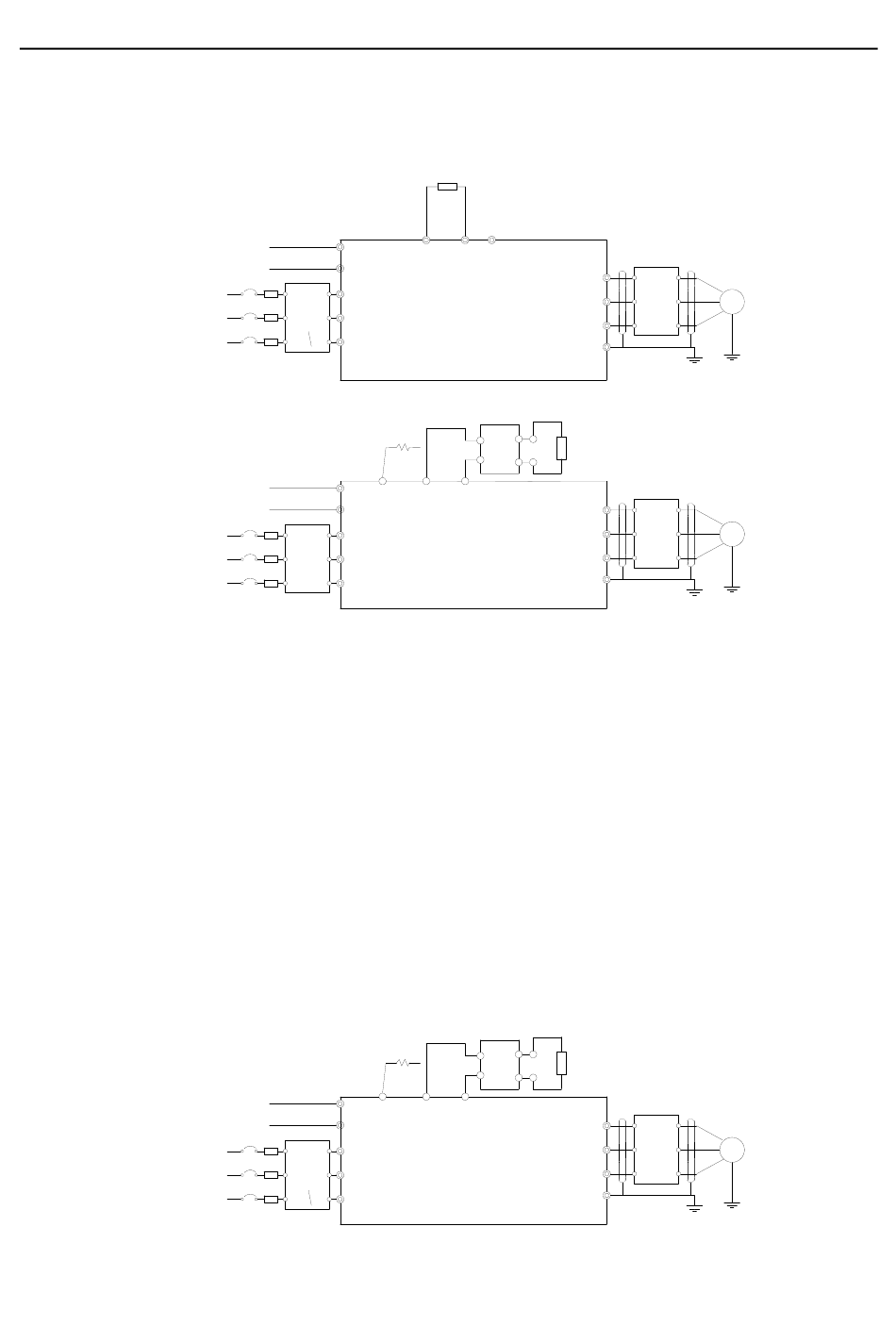

Figure 4-7 Connection diagram of main circuit for the VFDs of 380 V
Note:
1. The fuse, DC reactor, brake unit, brake resistor, input reactor, input filter, output reactor, and output
filter are optional parts. Please refer to Appendix D "Optional peripheral accessories" for detailed
information.
2. A1 and A2 are optional parts.
3. P1 and (+) are short circuited in factory for the VFDs of 380 V (≥37 kW), if need to connect with the
1PH 220V optional
DC rector, please remove the contact tag between P1 and (+).
3PH power supply
380V±15%
4. Before connecting the brake resistor cable, remove the yellow labels of PB, (+), and (-) from the
50/60Hz
terminal blocks. Otherwise, poor connection may occur.
4.3.1.2 For VFDs of AC 3PH 520 V (-15%)–690 V (+10%)
1PH 220V optional
3PH power supply
380V±15%
50/60Hz
Figure 4-8 Connection diagram of main circuit for the VFDs of 660 V
A1
A2
Input R
reactor
30kW and below
S
Input
T
filter
Fuse
DC reactor
P1
A1
A2
Input R
reactor
S
37kW and above
Input
T
filter
Fuse
A1
A2
Input R
reactor
30kW and below
S
Input
T
filter
Fuse
DC reactor
P1
A1
A2
Input R
reactor
S
37kW and above
Input
T
filter
Fuse
Brake resistor
PB
(+) (-)
U
V
W
PE
Brake unit
DC+
Brake resistor
DC-
(+) (-)
U
V
W
PE
Brake resistor
(+) PB (-)
U
V
W
PE
Brake unit
DC+
Brake resistor
DC-
(+) (-)
U
V
W
PE
