Goodrive35 Series Closed-loop Vector Control VFD
Extension card
2. Bus connector
3. Rotation node address selection switches
4. State display LEDs
5. Ethernet communication interface

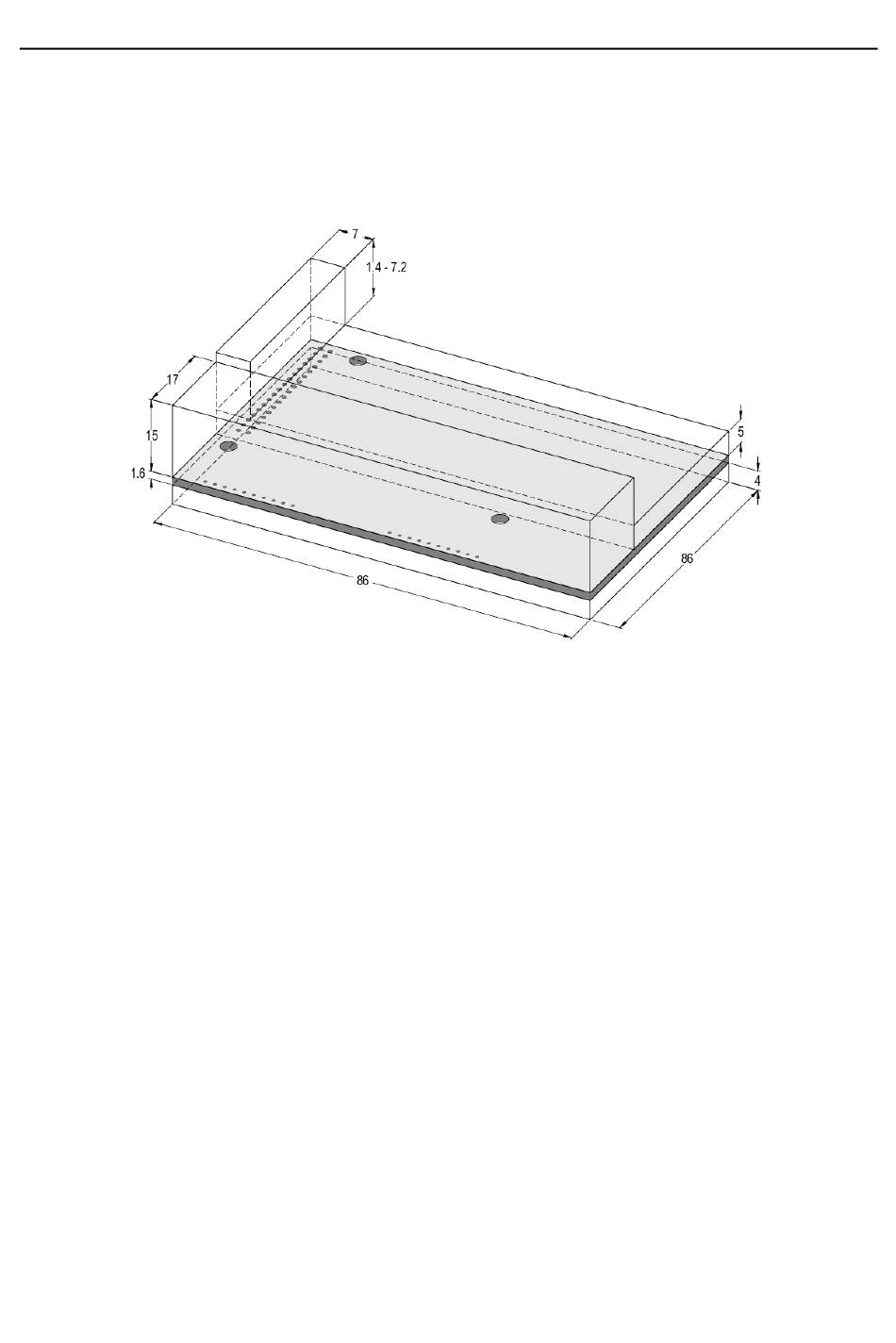

Figure A-2 External dimensions of EC-TX-103 communication card (Unit: mm)
A.2.4 Compatible motor of EC-TX-103 communication card
EC-TX-103 communication card is compatible with the following products:
● Goodrive35 series VFDs and all VFDs supporting PROFIBUS extension
● Host station supporting PROFIBUS-DP protocol
A.2.5 Delivery list
The package of EC-TX-103 communication card contains:
● EC-TX-103 communication card
● Three screws (M3x10)
● User's manual
Contact Shenzhen INVT Electric Co., Ltd. or suppliers if there is something missing. Notice will not be
given for the reason of product upgrades.
A.2.6 Installation of EC-TX-103 communication card
A.2.6.1 Mechanical installation of EC-TX-103 communication card
1. Installation ambient
● Ambient temperature: 0° C–+40° C
● Relative humidity: 5%–95%
● Other climate conditions: no drew, ice, rain, snow, hail air condition and the solar radiation is below
240
