INVT Goodrive35 Series Operation Manual page 79

Goodrive35 Series Closed-loop Vector Control VFD
Functio
Name
n code
Voltage increasing
P04.29
time
Voltage decreasing
P04.30
time
Maximum output
P04.31
voltage
Minimum output
P04.32
voltage
P05 Group Input terminals
P05.00 HDI input
P05.01 S1 terminal function
P05.02 S2 terminal function
P05.03 S3 terminal function
P05.04 S4 terminal function
P05.05 S5 terminal function
P05.06 S6 terminal function
Detailed instruction of parameters
Voltage increasing time is the time when the VFD
accelerates from the output minimum voltage to the
output maximum voltage.
Voltage decreasing time is the time when the VFD
decelerates from the output maximum voltage to the
output minimum voltage.
The setting range: 0.0–3600.0s

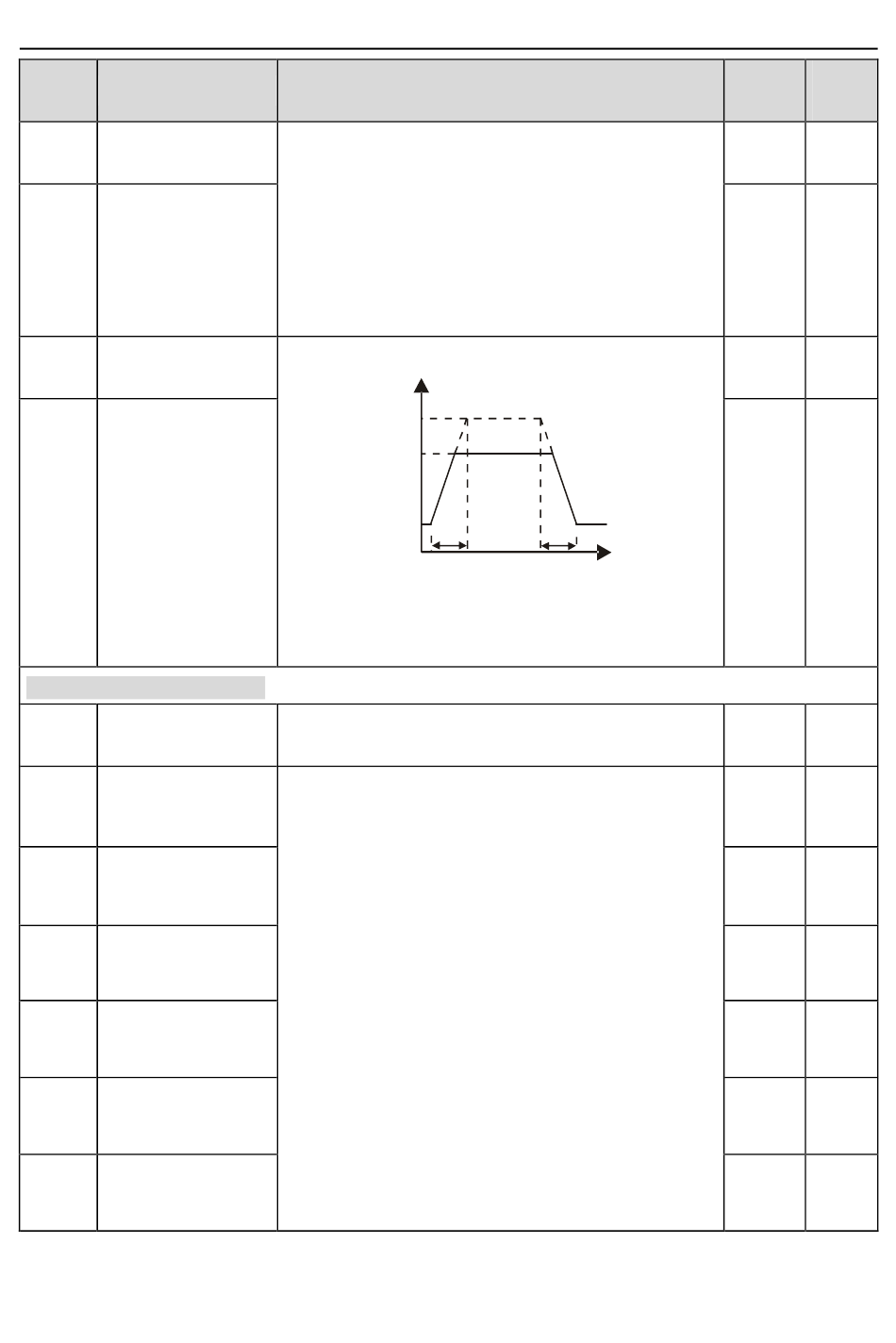

Set the upper and low limit of the output voltage.
Vmax
Vset
Vmin
t1
The setting range of P04.31: P04.32–100.0% (the
rated voltage of the motor)
The setting range of P04.32: 0.0%–P04.31
0: High pulse input. See P05.49–P05.54
1: Digital input. See P05.09
0: No function
1: Forward rotation operation (FWD)
2: Reverse rotation operation (REV)
3: 3-wire control operation (SIn)
4: Forward jogging
5: Reverse jogging
6: Coast to stop
7: Fault reset
8: Operation pause
9: External fault input
10: Increasing frequency setting (UP)
11: Decreasing frequency setting (DOWN)
12: Frequency setting clear
13: Shift between A setting and B setting
14: Shift between combination setting and A setting
72
Function parameters
t1=P04.29
t2=P04.30
t2
T
Default Modif
value y
5.0 s
○
5.0 s
○
100.0%
◎
0.0%
◎
0
◎
1
◎
4
◎
7
◎
0
◎
0
◎
0
◎
