Goodrive35 Series Closed-loop Vector Control VFD Dimension drawings

Appendix C Dimension drawings

C.1 What this chapter contains
Dimension drawings of the Goodrive35 are shown below. The dimensions are given in millimeters
and inches.

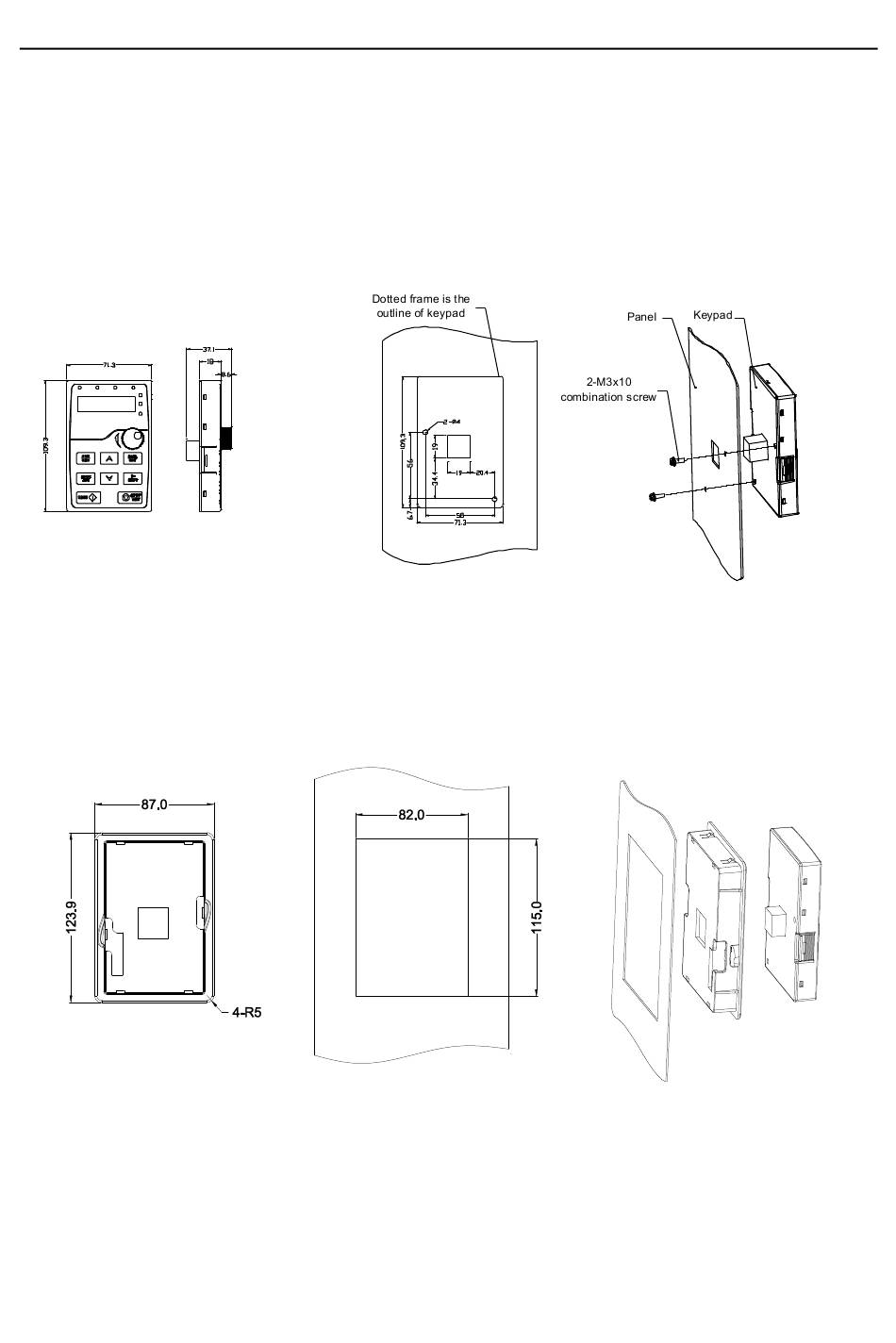

C.2 Keypad structure
C.2.1 Structure chart
Hole dimension and diagram for keypad installation w ithout bracket
C.2.2 Installation bracket
Note: The external keypad can be fix by M3 screws directly or the installation bracket. The installation
bracket for VFDs of 380 V 1.5–30 kW is optional, the installation bracket for VFDs of 380 V 37–315
kW and 660 V 22–630 kW is optional or substitutive by the external standard one.
Customer installation dimension
Keypad bracket
Figure C-1 Installation bracket of the keypad (380 V 1.5–315 kW; 660 V 22–630 kW) (optional)
260
