Goodrive35 Series Closed-loop Vector Control VFD
Installation guide

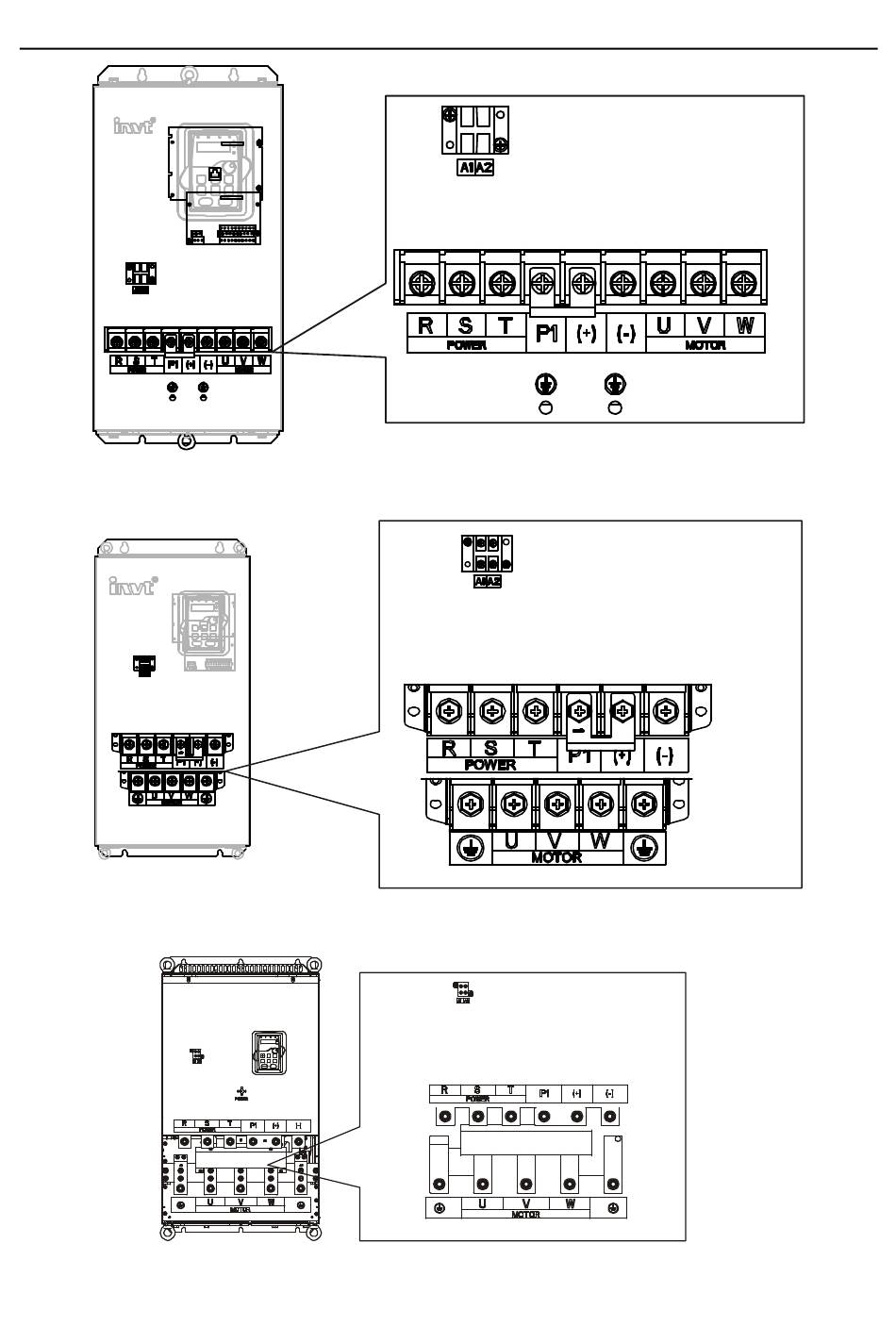

Figure 4-14 Terminals of main circuit for the VFDs of 380 V 37–55 kW and 660 V 22–45 kW
Figure 4-15 Terminals of main circuit for the VFDs of 380 V 75–110 kW and 660 V 55–132 kW
kW
Figure 4-16 Terminals of main circuit for the VFDs of 380 V 132–200 kW and 660 V 160–220
24
