Under the third-level menu, if the parameter has no flickering bit, it means the function code cannot be
modified. The possible reasons could be:
1) This function code is not modifiable parameter, such as actual detected parameter, operation
records and so on;
2) This function code is not modifiable in running state, but modifiable in stop state.
Example: Set function code P00.01 from 0 to 1.
All digits are
blinking
Note: When setting the value, you can press

5.4.2 How to set the password of the VFD

Goodrive35 series VFDs provide password protection function to users. Set P7.00 to gain the
password and the password protection becomes valid instantly after quitting from the function code
editing state. Press PRG/ESC again to the function code editing state, "0.0.0.0.0" will be displayed.
Unless using the correct password, the operators cannot enter it.
Set P7.00 to 0 to cancel password protection function.
The password protection becomes effective instantly after retreating from the function code editing
state. Press PRG/ESC again to the function code editing state, "0.0.0.0.0" will be displayed. Unless
using the correct password, the operators cannot enter it.
All digits are
blinking
The units place
is blinking
Note: When setting the value, you can press

5.4.3 How to watch the VFD state through function codes

Goodrive35 series VFDs provide group P17 as the state inspection group. Users can enter into P17
directly to watch the state.
PRG
ESC
PRG
The units place
ESC
is blinking
The units place is blinking

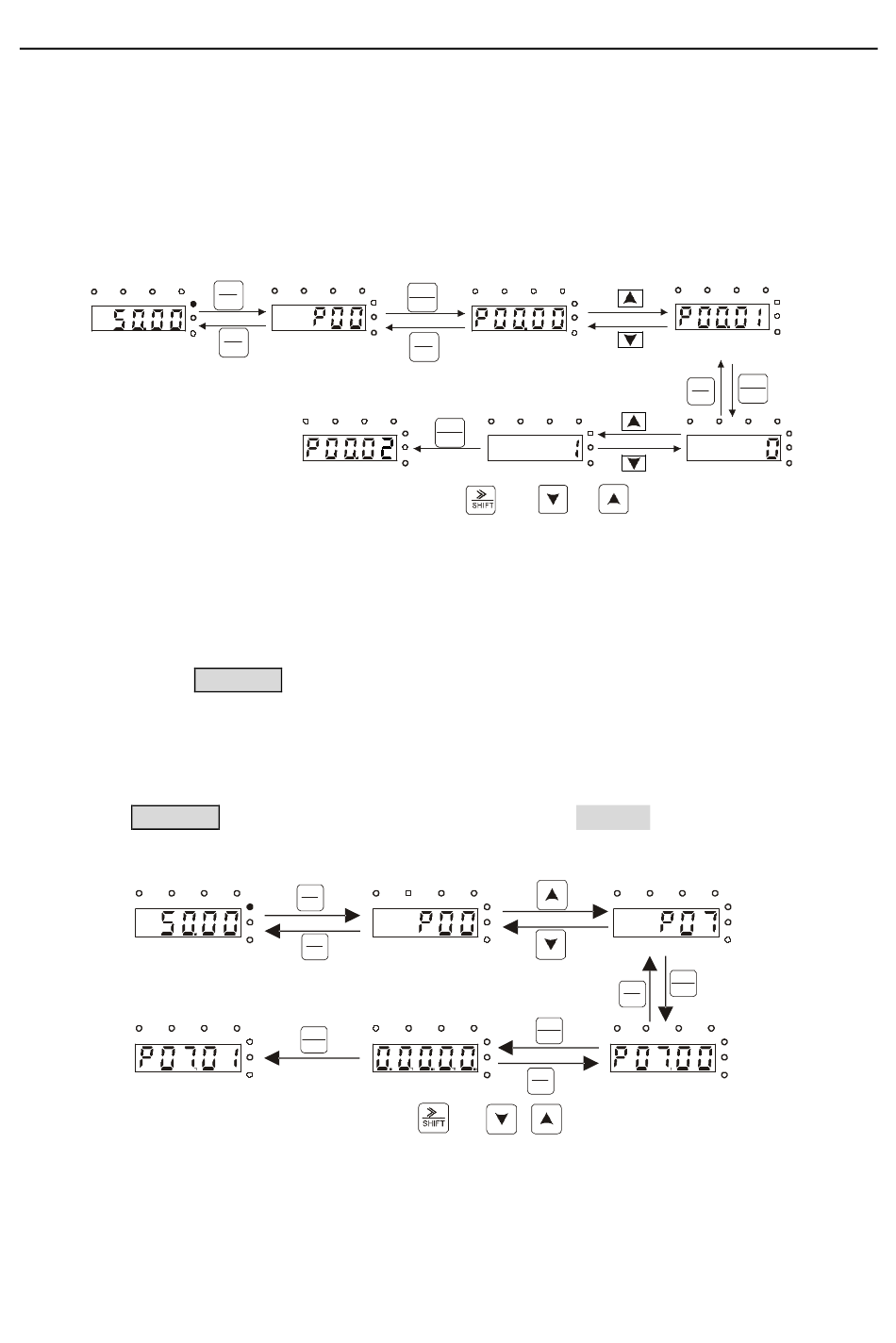

Figure 5-3 Sketch map of modifying parameters
