BIO RAD BioLogic LP Quick Start Tutorial

BioLogic LP Quick Start Tutorial
The BioLogic LP Starter Kit (Catalog # 731-8350) allows separation of a standard anion exchange mixture using the Econo Pac High Q
cartridge. Cabling and plumbing, platen adjustment, UV setup, and conductivity min and max settings are to be completed prior to

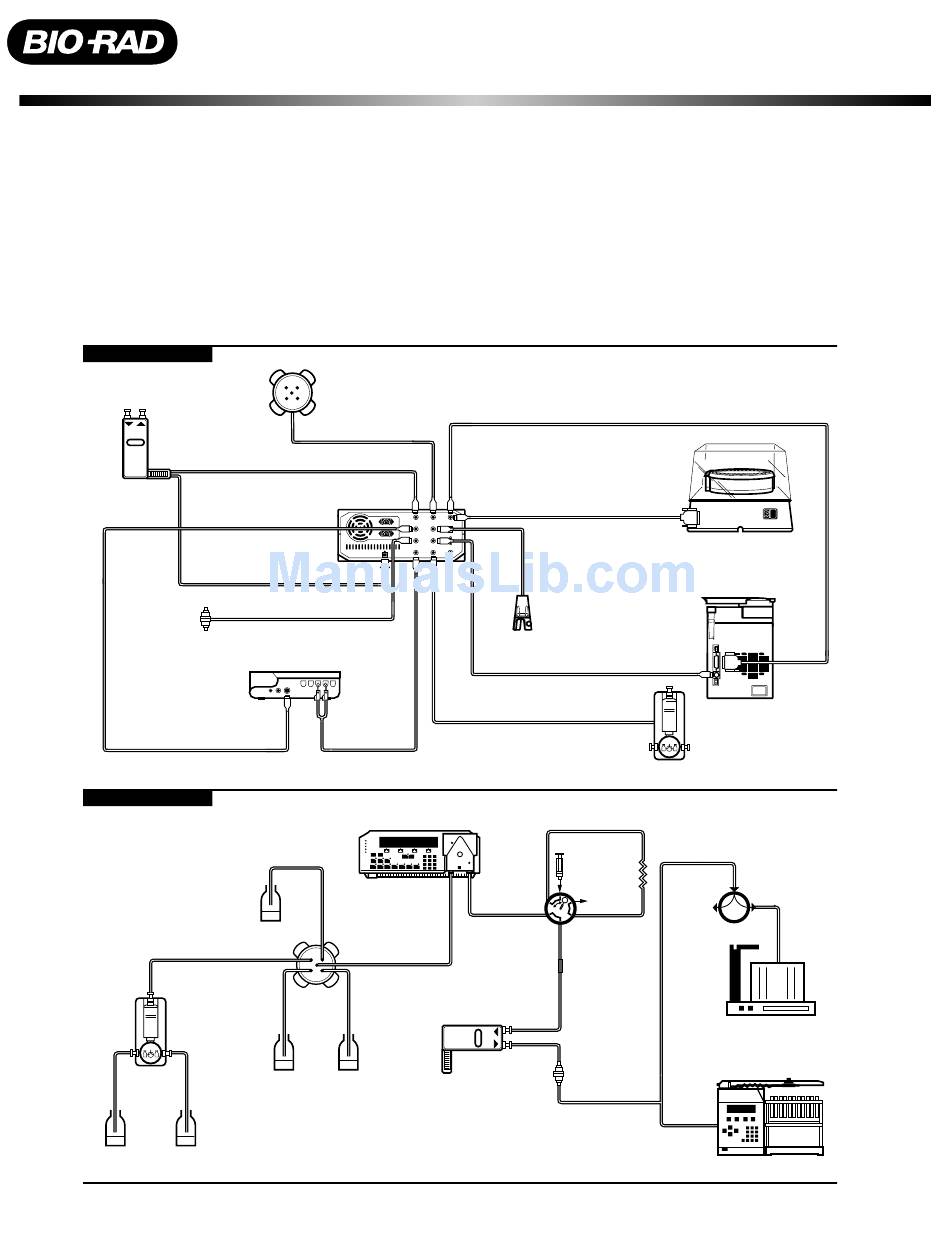

programming; instructions can be found in the BioLogic LP Starter Kit Instruction Manual, page 3–9. The illustrations below show the
suggested cabling and tubing connections for the BioLogic LP system.
SYSTEM CABLING
MODEL EM-1
UV OPTICS MODULE
CONDUCTIVITY
FLOW CELL
MODEL 1327
CHART RECORDER
SYSTEM CABLE 2
SYSTEM TUBING
PROPORTIONING VALVE
AND MIXER MODULE
MIXER
B A
BUFFERS
B A
B AND A
SV-5
BUFFER
SELECT VALVE
BIOLOGIC LP
CONTROLLER
SYSTEM CABLE 4
BIOLOGIC LP
CONTROLLER
SV-5
C
BUFFER
SELECT VALVE
UV OPTICS MODULE
E D
SYSTEM CABLE 15
SYSTEM CABLE 1
SV-3
DIVERTER VALVE FOR
2110 FRACTION COLLECTOR
SYSTEM CABLE 3 OR 2128 VALVE CABLE
SAMPLE LOOP
INJECT
PORT
MV-6
INJECT
WASTE
VALVE
FILL
COLUMN
MODEL EM-1
CONDUCTIVITY
FLOW CELL
MODEL 2110
FRACTION COLLECTOR
OR
MODEL 2128
FRACTION COLECTOR
MIXER
PROPORTIONING VALVE
B A
AND MIXER MODULE
SV-3
DIVERTER
COMMON
VALVE
WASTE
SV-3
COLLECT TO MODEL 2110
FRACTION COLLECTOR
OR
COLLECT TO MODEL 2128
FRACTION COLECTOR
