RM0008
Address mark detection (WAKE=1)
In this mode, bytes are recognized as addresses if their MSB is a '1' else they are
considered as data. In an address byte, the address of the targeted receiver is put on the 4
LSB. This 4-bit word is compared by the receiver with its own address which is programmed
in the ADD bits in the USART_CR2 register.
The USART enters mute mode when an address character is received which does not
match its programmed address. The RXNE flag is not set for this address byte and no
interrupt nor DMA request is issued as the USART would have entered mute mode.
It exits from mute mode when an address character is received which matches the
programmed address. Then the RWU bit is cleared and subsequent bytes are received
normally. The RXNE bit is set for the address character since the RWU bit has been cleared.
The RWU bit can be written to as 0 or 1 when the receiver buffer contains no data (RXNE=0
in the USART_SR register). Otherwise the write attempt is ignored.
An example of mute mode behavior using address mark detection is given in

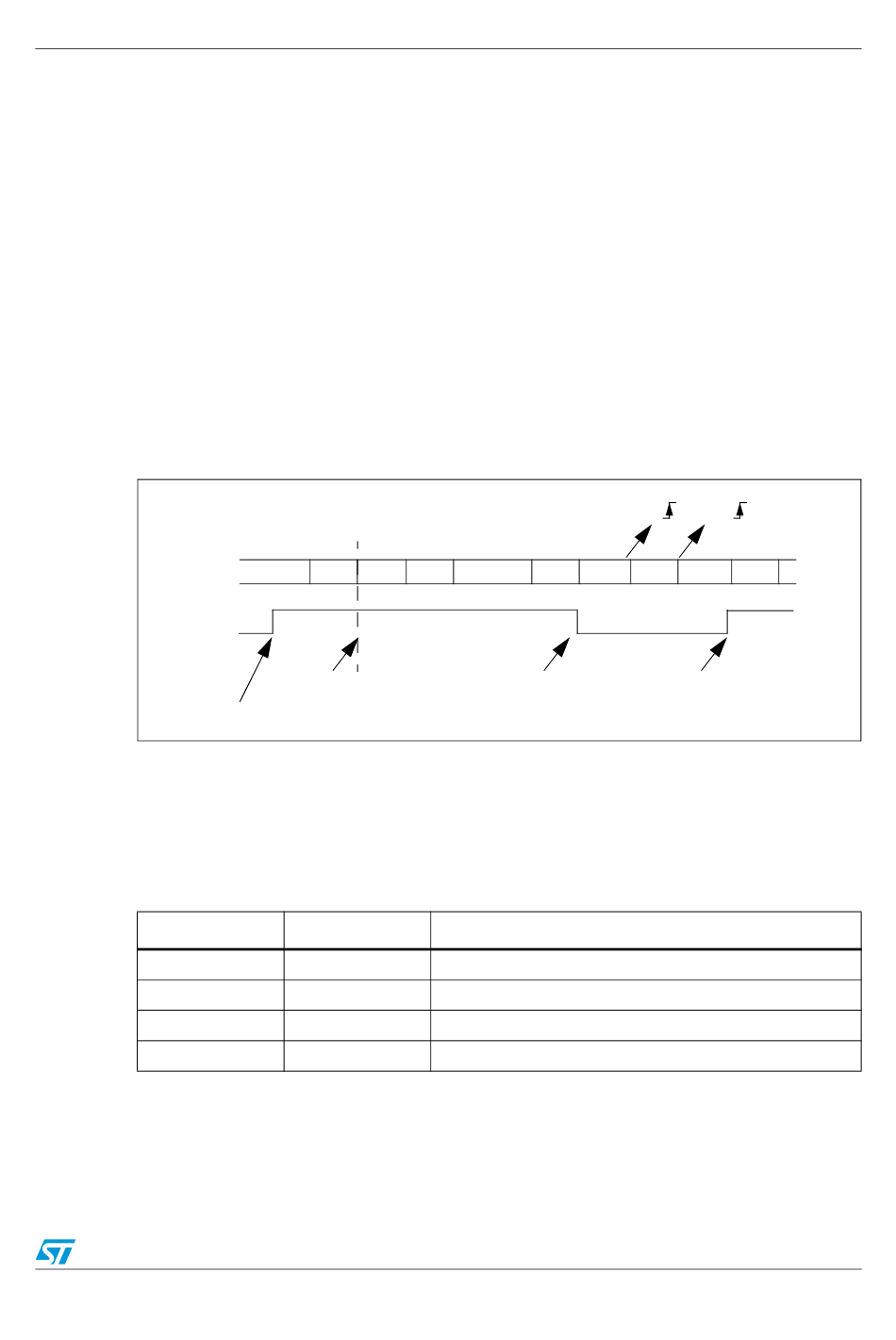

Figure 170. Mute mode using Address mark detection

In this example, the current address of the receiver is 1
(programmed in the USART_CR2 register)
RX
RWU
RWU written to 1
(RXNE was cleared)
19.3.7

Parity control

Parity control (generation of parity bit in transmission and parity checking in reception) can
be enabled by setting the PCE bit in the USART_CR1 register. Depending on the frame
length defined by the M bit, the possible USART frame formats are as listed in
Table 68.
M bit
Legends: SB: Start Bit, STB: Stop Bit, PB: Parity Bit
Note:
In case of wake up by an address mark, the MSB bit of the data is taken into account and
not the parity bit
Universal synchronous asynchronous receiver transmitter (USART)
IDLE
Addr=0
Data 1
Non-matching address
Frame formats
PCE bit
0
0
0
1
1
0
1
1
Data 2
IDLE
Addr=1
Mute Mode
Matching address
| SB | 7-bit data | PB | STB |
RXNE
RXNE
Data 3 Data 4
Addr=2
Normal Mode
Non-matching address
USART frame
| SB | 8 bit data | STB |
| SB | 9-bit data | STB |
| SB | 8-bit data PB | STB |
Figure
170.
Data 5
Mute Mode
Table
68.
443/501
