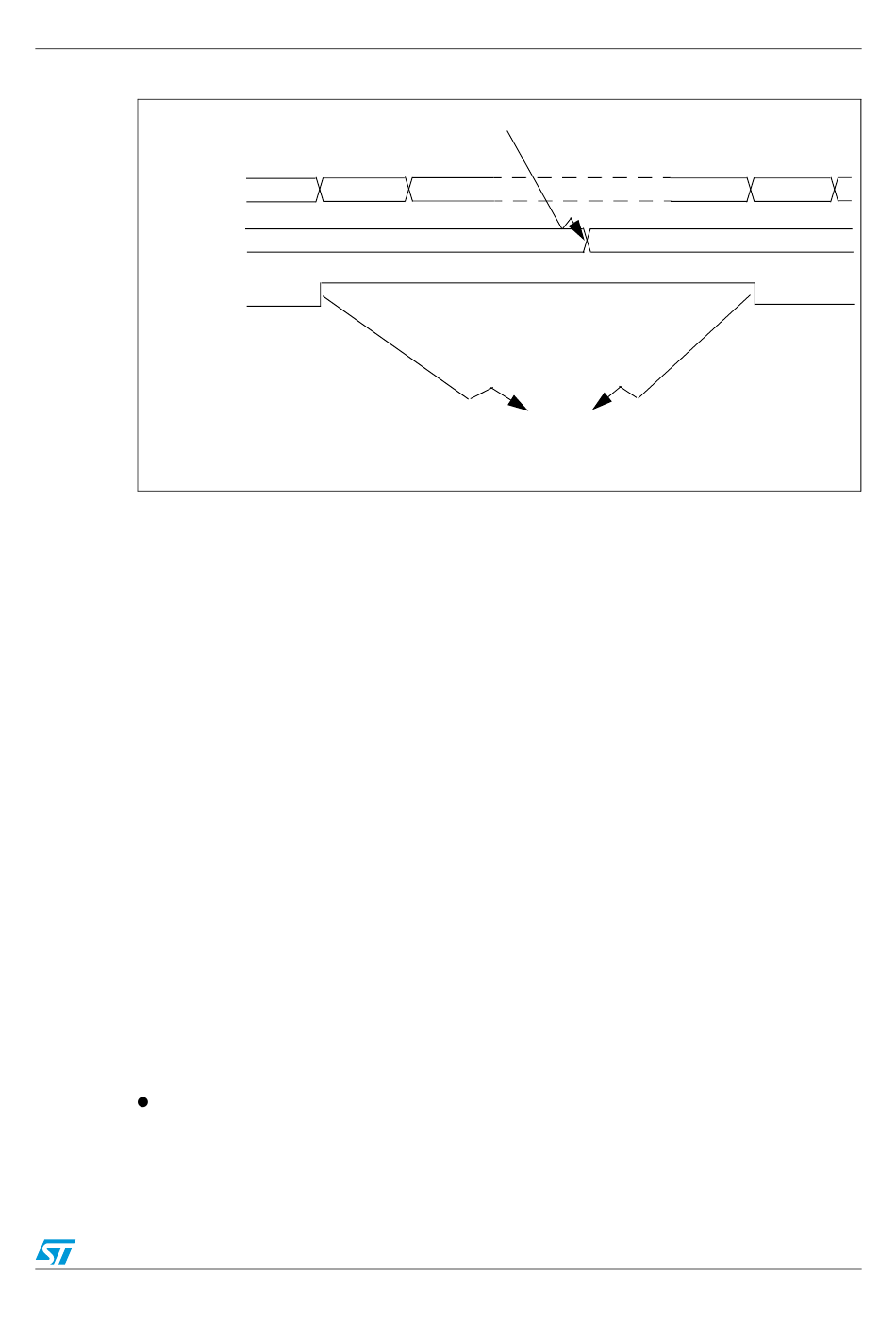

Figure 56. Output compare mode, toggle on OC1.

TIM1_CNT
TIM1_CCR1
oc1ref=OC1
12.4.10

PWM mode

Pulse Width Modulation mode allows you to generate a signal with a frequency determined
by the value of the TIM1_ARR register and a duty cycle determined by the value of the
TIM1_CCRx register.
The PWM mode can be selected independently on each channel (one PWM per OCx
output) by writing '110' (PWM mode 1) or '111' (PWM mode 2) in the OCxM bits in the
TIM1_CCMRx register. You must enable the corresponding preload register by setting the
OCxPE bit in the TIM1_CCMRx register, and eventually the auto-reload preload register (in
upcounting or center-aligned modes) by setting the ARPE bit in the TIM1_CR1 register.
As the preload registers are transferred to the shadow registers only when an update event
occurs, before starting the counter, you have to initialize all the registers by setting the UG
bit in the TIM1_EGR register.
OCx polarity is software programmable using the CCxP bit in the TIM1_CCER register. It
can be programmed as active high or active low. OCx output is enabled by a combination of
the CCxE, CCxNE, MOE, OSSI and OSSR bits (TIM1_CCER and TIM1_BDTR registers).
Refer to the TIM1_CCER register description for more details.
In PWM mode (1 or 2), TIM1_CNT and TIM1_CCRx are always compared to determine
whether TIM1_CCRx ≤TIM1_CNT or TIM1_CNT ≤TIM1_CCRx (depending on the direction
of the counter).
The timer is able to generate PWM in edge-aligned mode or center-aligned mode
depending on the CMS bits in the TIM1_CR1 register.
PWM edge-aligned mode
Upcounting configuration
Upcounting is active when the DIR bit in the TIM1_CR1 register is low. Refer to the
Upcounting mode on page
In the following example, we consider PWM mode 1. The reference PWM signal
OCxREF is high as long as TIM1_CNT < TIM1_CCRx else it becomes low. If the
Write B201h in the CC1R register
0039 003A
003B
003A
151.
Advanced control timer (TIM1)
Match detected on CCR1
Interrupt generated if enabled
B200 B201
B201
