Configuring RTC registers

To write in the RTC_PRL, RTC_CNT, RTC_ALR registers, the peripheral must enter
Configuration Mode. This is done by setting the CNF bit in the RTC_CRL register.
In addition, writing to any RTC register is only enabled if the previous write operation is
finished. To enable the software to detect this situation, the RTOFF status bit is provided in
the RTC_CR register to indicate that an update of the registers is in progress. A new value
can be written to the RTC registers only when the RTOFF status bit value is '1'.
Configuration procedure:
1.
Poll RTOFF, wait until its value goes to '1'
2.
Set the CNF bit to enter configuration mode
3.
Write to one or more RTC registers
4.
Clear the CNF bit to exit configuration mode
5.
Poll RTOFF, wait until its value goes to '1' to check the end of the write operation.
The write operation only executes when the CNF bit is cleared; it takes at least three
RTCCLK cycles to complete.
8.3.5

RTC flag assertion

The RTC Second flag (SECF) is asserted on each RTC Core clock cycle before the update
of the RTC Counter.
The RTC Overflow flag (OWF) is asserted on the last RTC Core clock cycle before the
counter reaches 0x0000.
The RTC_Alarm and RTC Alarm flag (ALRF) (see
Core clock cycle before the counter reaches the RTC Alarm value stored in the Alarm
register increased by one (RTC_ALR + 1). The write operation in the RTC Alarm and RTC
Second flag must be synchronized by using one of the following sequences:
Use the RTC Alarm interrupt and inside the RTC interrupt routine, the RTC Alarm
and/or RTC Counter registers are updated.
Wait for SECF bit to be set in the RTC Control register. Update the RTC Alarm and/or
the RTC Counter register.

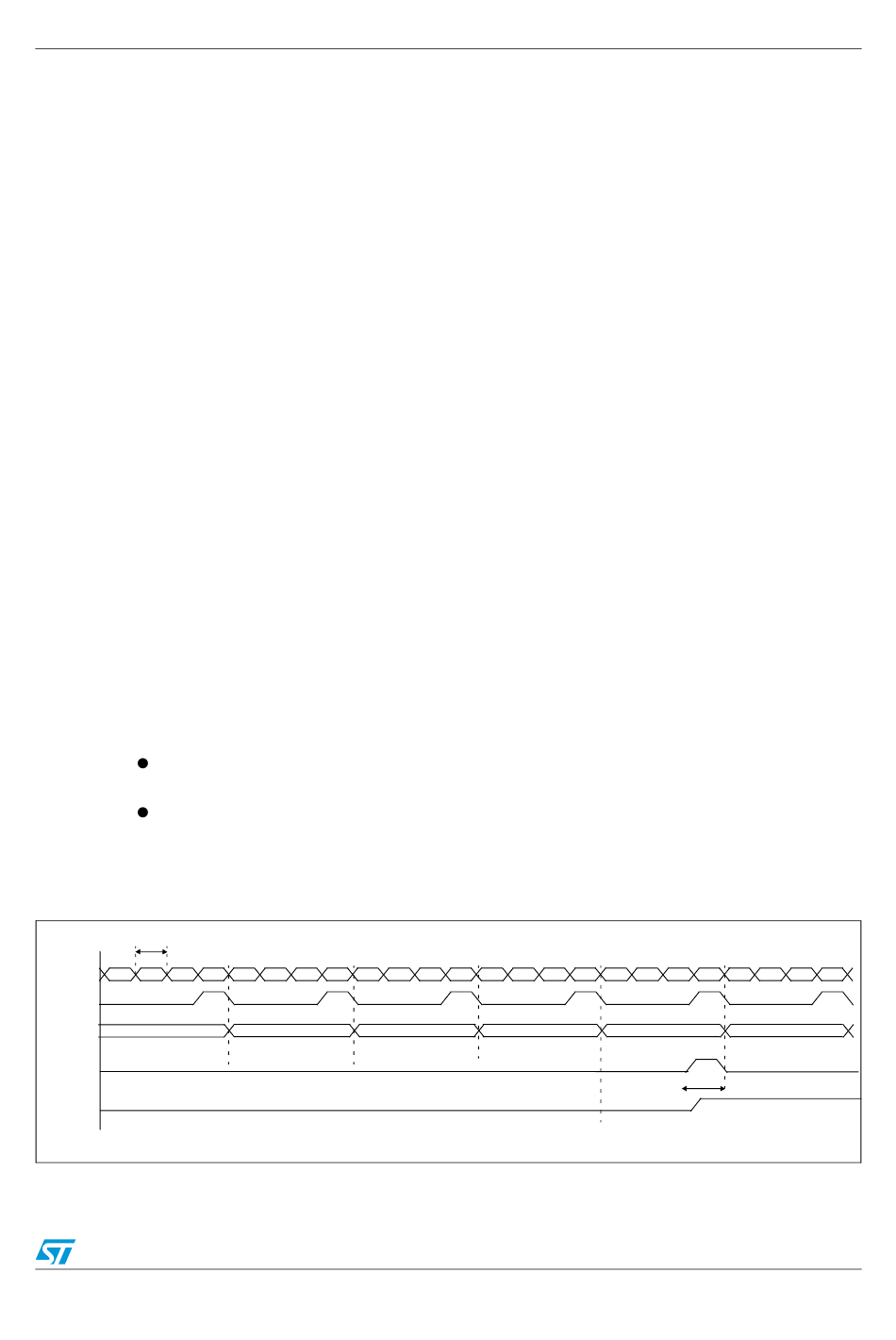

Figure 20. RTC second and alarm waveform example with PR=0003, ALARM=00004

RTCCLK
RTC_PR
0002
0001
0000
0003
RTC_Second
RTC_CNT
0000
RTC_ALARM
ALRF
(not powered
in Standby)
0002
0001
0000
0003
0002
0001
0001
0002
Figure
0000
0003
0002
0001
0000
0003
0003
Real-time clock (RTC)
20) are asserted on the last RTC
0002
0001
0000
0003
0002
0001
0004
0005
1 RTCCLK
can be cleared by software
0000
0003
123/501
