execute command
SYNC_OK
tSynchrocheck
START_SY
SY_INPRO
tSynchronizing
IEC05000095 V1 EN

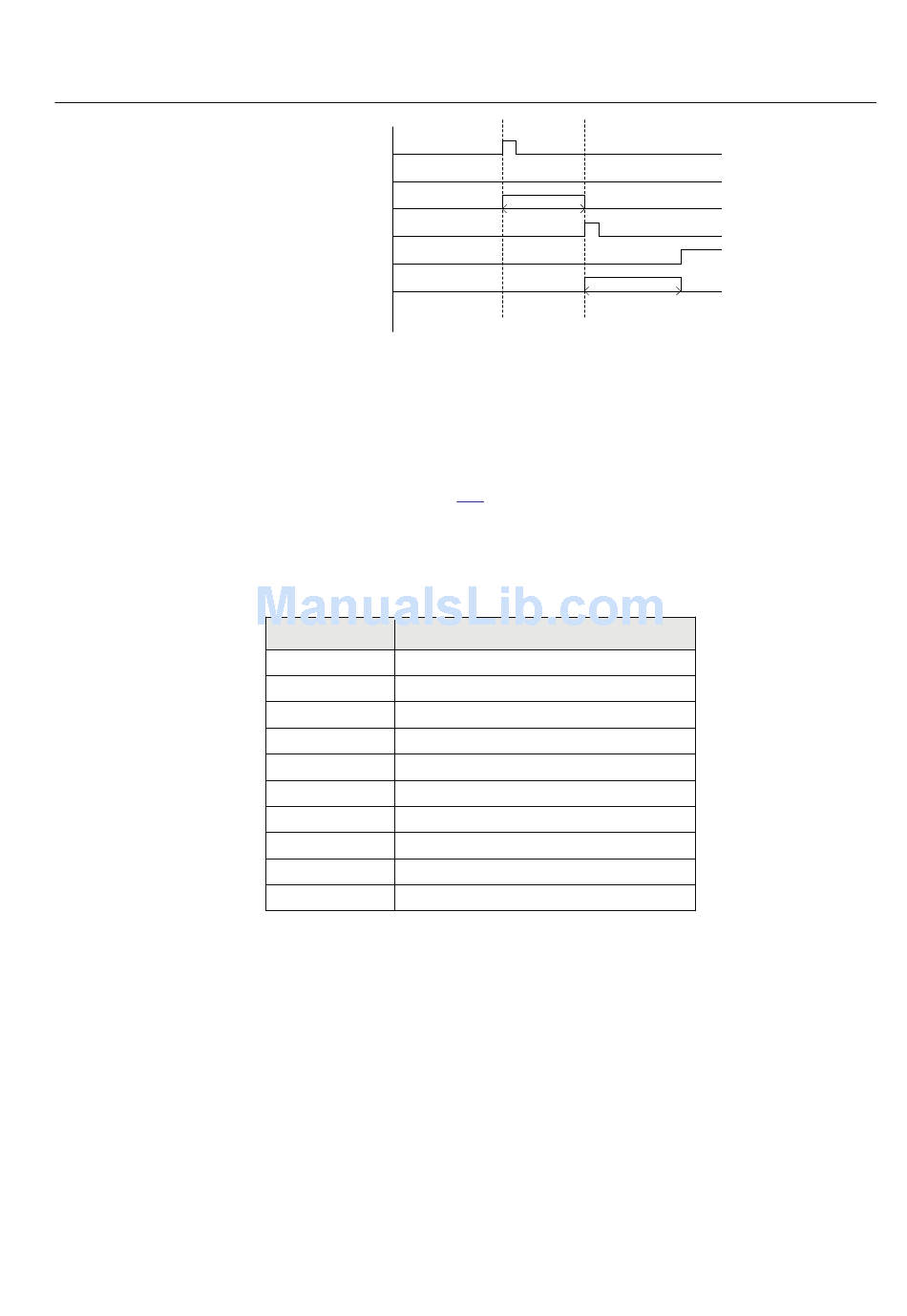

Figure 125: tSynchroCheck and tSynchronizing
Error handling
Depending on the error that occurs during the command sequence, the error signal will
be set with a value. Table
these specified in IEC 61850-8-1 standard. The list of values of the "cause" are in
order of priority. The values are available over the IEC 61850. An output L_CAUSE
on the function block indicates the latest value of the error during the command.
Table 197: Values for "cause" signal in priority order
Apparatus control Description
function
–22 wrongCTLModel
–23 blockedForCommand
–24 blocked-for-open-command
–25 blocked-for-close-command
–30 longOperationTime
–31 switch-not-start-moving
–32 persistent-intermediate-state
–33 switch-returned-to-initial-position
–34 switch-in-bad-state
–35 not-expected-final-position

Bay control QCBAY

The functionality of the Bay control (QCBAY) function is not defined in the IEC
61850–8–1 standard, which means that the function is a vendor specific logical node.
The function sends information about the Permitted Source To Operate (PSTO) and
blocking conditions to other functions within the bay for example, switch control
functions, voltage control functions and measurement functions.
t1
t2
197 describes vendor specific cause values in addition to
Section 12
Control
t2>tSynchronizing, then
blocked-by-synchrocheck in
'cause' is set
en05000095.vsd
