Logic Diagram - ABB RET650 Technical Manual

1MRK 504 135-UEN A
6.1.4.13
IEC09000162 V1 EN

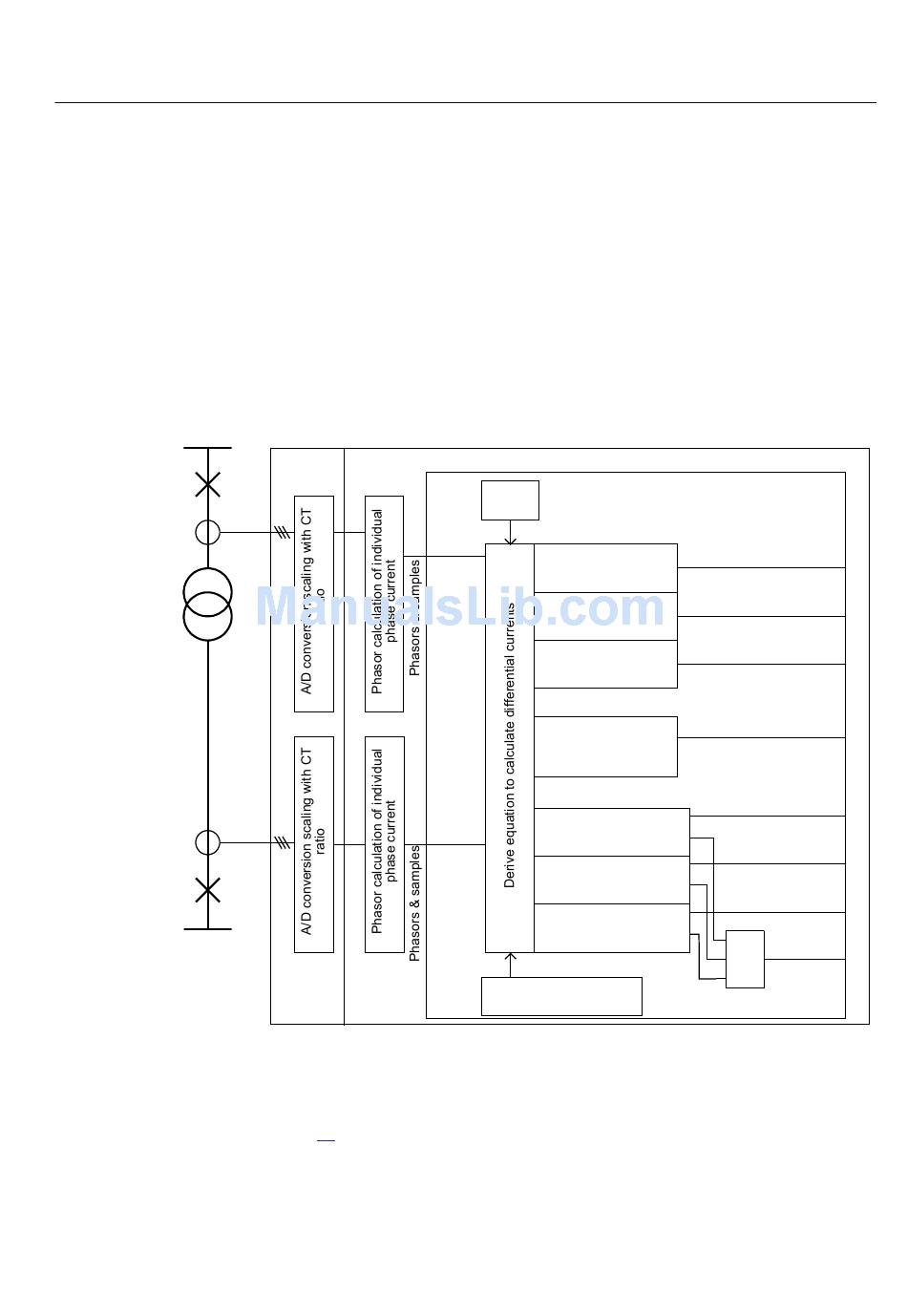

Figure 38: Treatment of measured currents within IED for transformer differential function
Technical manual
sinusoidal currents will flow from the very beginning. In this case the waveform block
algorithm removes all its three block signals in a very short interval of time. This quick
reset of the waveblock criterion will temporarily disable the second harmonic
blocking feature of the differential protection function. This consequently ensures fast
operation of the transformer differential function for a switch onto a fault condition.
It shall be noted that this feature is only active during initial power transformer
energizing, more exactly, under the first 50 ms. When the switch onto fault feature is
disabled by the setting parameter SOTFMode, the waveblock and second harmonic
blocking features work in parallel and are completely independent from each other.

Logic diagram

The simplified internal logics, for transformer differential protection are shown in the
following figures.
ADM
Figure 38 shows how internal treatment of measured currents is done in case of a two-
winding transformer.
Differential protection
Trafo
Data
Instantaneous (sample based)
Differential current, phase L1
Instantaneous (sample based)
Differential current, phase L2
Instantaneous (sample based)
Differential current, phase L3
Negative sequence diff current
& NS current contribution from
individual windings
Fundamental frequency (phasor
based) Diff current, phase L1 &
phase current contributions from
individual windings
Fundamental frequency (phasor
based) Diff current, phase L2 &
phase current contributions from
individual windings
Fundamental frequency (phasor
based) Diff current, phase L3 &
phase current contributions from
individual windings
Settings for Zer. Seq.
Current Reduction
Section 6
Differential function
IDL1
IDL2
IDL3
IDNSMAG
IDL1MAG
IDL2MAG
IDL3MAG
IBIAS
MAX
IEC09000162_1_en.vsd
105
