1MRK 504 135-UEN A
13.8
13.8.1
13.8.2
13.8.3
13.8.4
Technical manual
Integer to boolean 16 conversion with logic node
representation IB16FCVB

Identification

Function description
Integer to boolean 16 conversion with
logic node representation

Functionality

Integer to boolean conversion with logic node representation function IB16FCVB is
used to transform an integer to 16 binary (logic) signals.
IB16FCVB function can receive remote values over IEC61850 when the operator
position input PSTO is in position remote. The block input will freeze the output at the
last value.

Function block

IB16FCVB
BLOCK OUT1
PSTO OUT2
OUT3
OUT4
OUT5
OUT6
OUT7
OUT8
OUT9
OUT10
OUT11
OUT12
OUT13
OUT14
OUT15
OUT16
IEC09000399-1-en.vsd
IEC09000399 V1 EN

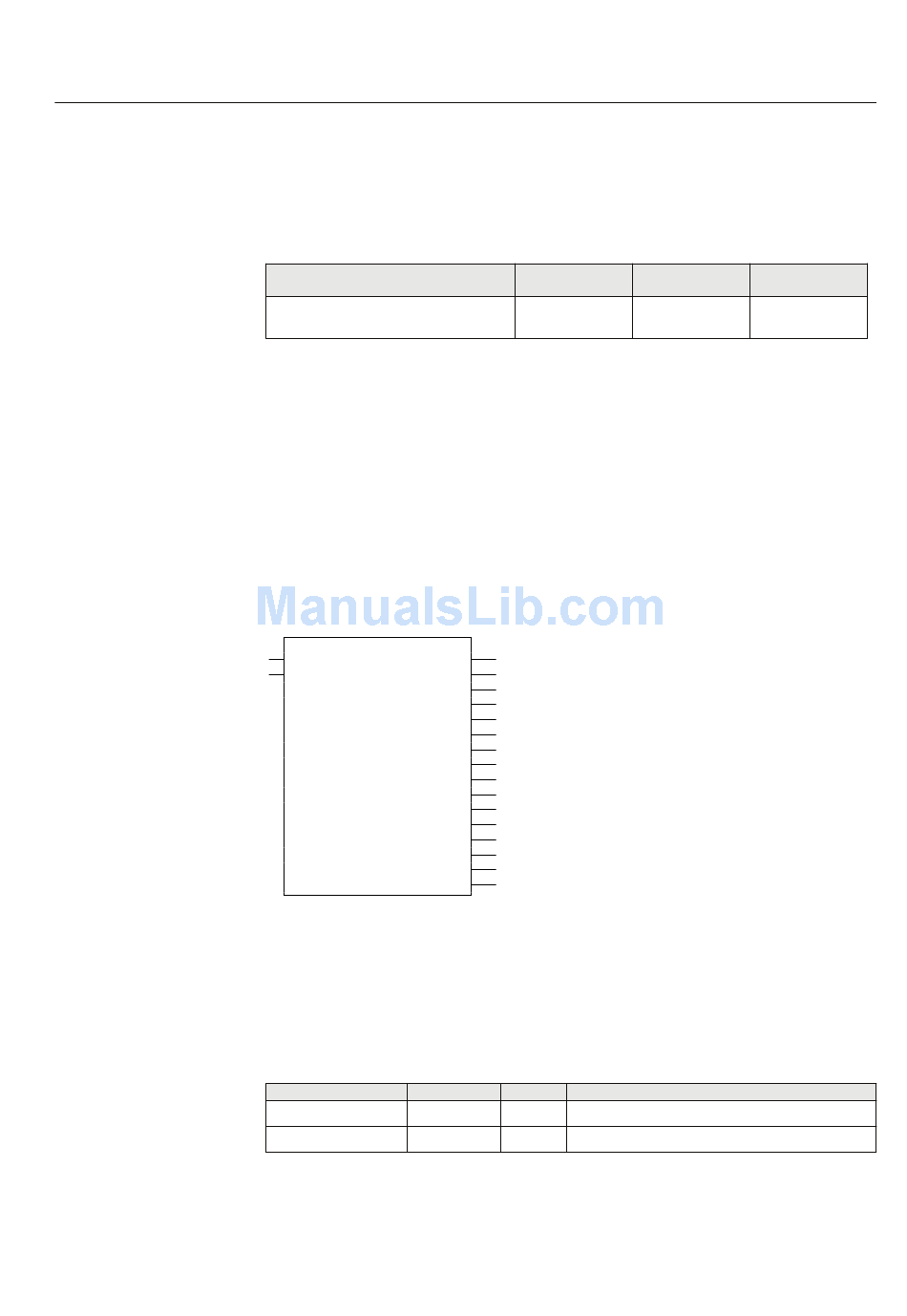

Figure 182: IB16FCVB function block

Signals

Table 320: IB16FCVB Input signals
Name Type
BLOCK BOOLEAN
PSTO INTEGER
IEC 61850 IEC 60617
identification identification
IB16FCVB
Default Description
0 Block of function
1 Operator place selection
Section 13
Logic
ANSI/IEEE C37.2
device number
- -
401
