Function Block; Signals - ABB RET650 Technical Manual

Section 14
Monitoring
14.25.2
14.25.3
522
I103USRDEF can be used, for example in mapping the INF numbers not supported
directly by specific function blocks, like: INF17, INF18, INF20 or INF35. After
connecting the appropriate signals to the I103USRDEF inputs, the user must also set
the InfNo_x values in the settings.
GUID-391D4145-B7E6-4174-B3F7-753ADDA4D06F V1 EN

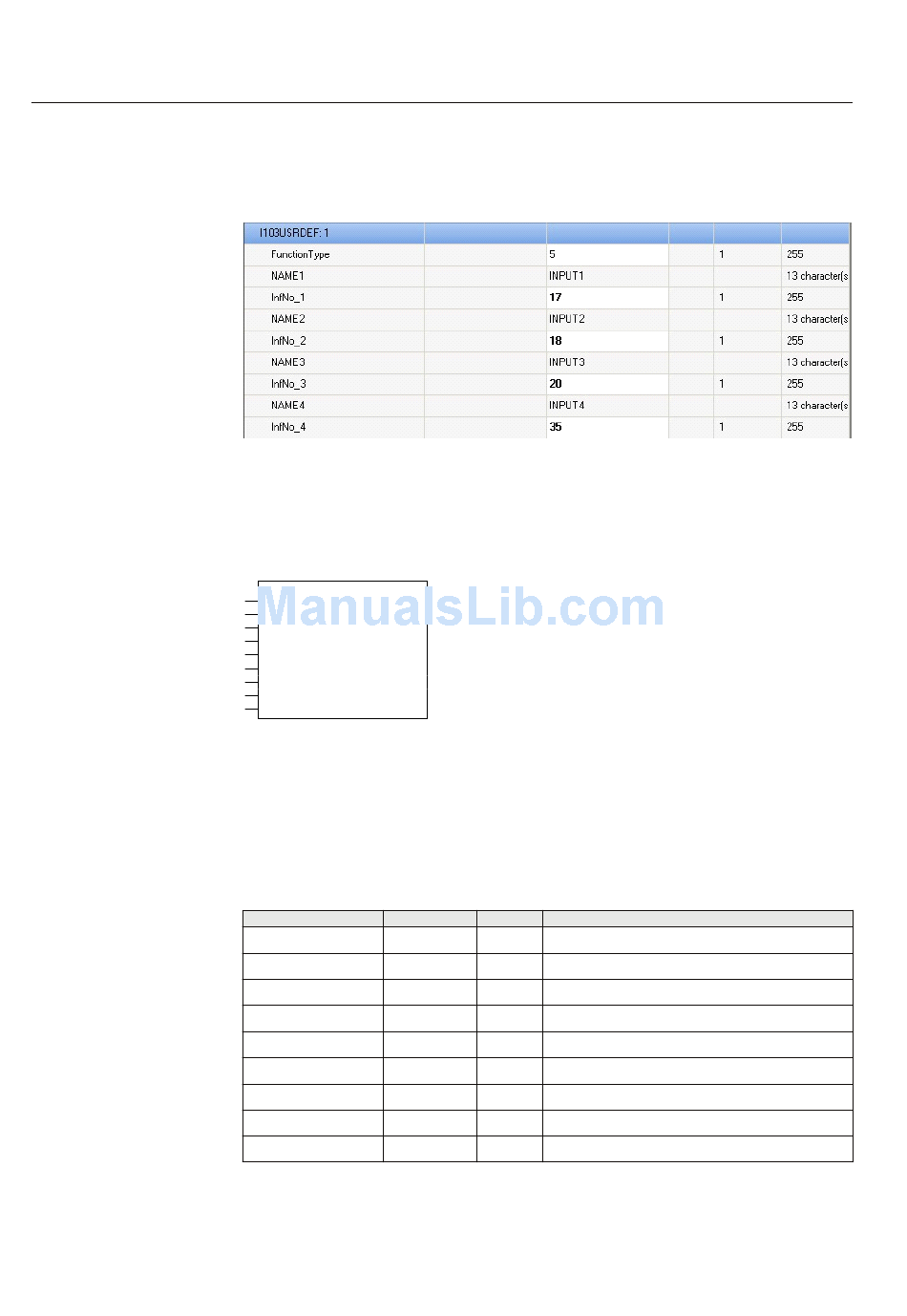

Figure 234: IEC 60870-5-103I103USRDEF:1

Function block

I103USRDEF
BLOCK
^INPUT1
^INPUT2
^INPUT3
^INPUT4
^INPUT5
^INPUT6
^INPUT7
^INPUT8
IEC10000294-1-en.vsd
IEC10000294 V1 EN
Figure 235: I103USRDEF function block

Signals

Table 429: I103USRDEF Input signals
Name Type
BLOCK BOOLEAN
INPUT1 BOOLEAN
INPUT2 BOOLEAN
INPUT3 BOOLEAN
INPUT4 BOOLEAN
INPUT5 BOOLEAN
INPUT6 BOOLEAN
INPUT7 BOOLEAN
INPUT8 BOOLEAN
Default Description
0 Block of status reporting
0 Binary signal Input 1
0 Binary signal input 2
0 Binary signal input 3
0 Binary signal input 4
0 Binary signal input 5
0 Binary signal input 6
0 Binary signal input 7
0 Binary signal input 8
