Inter-VLAN Transparent
Bridging
Network diagram

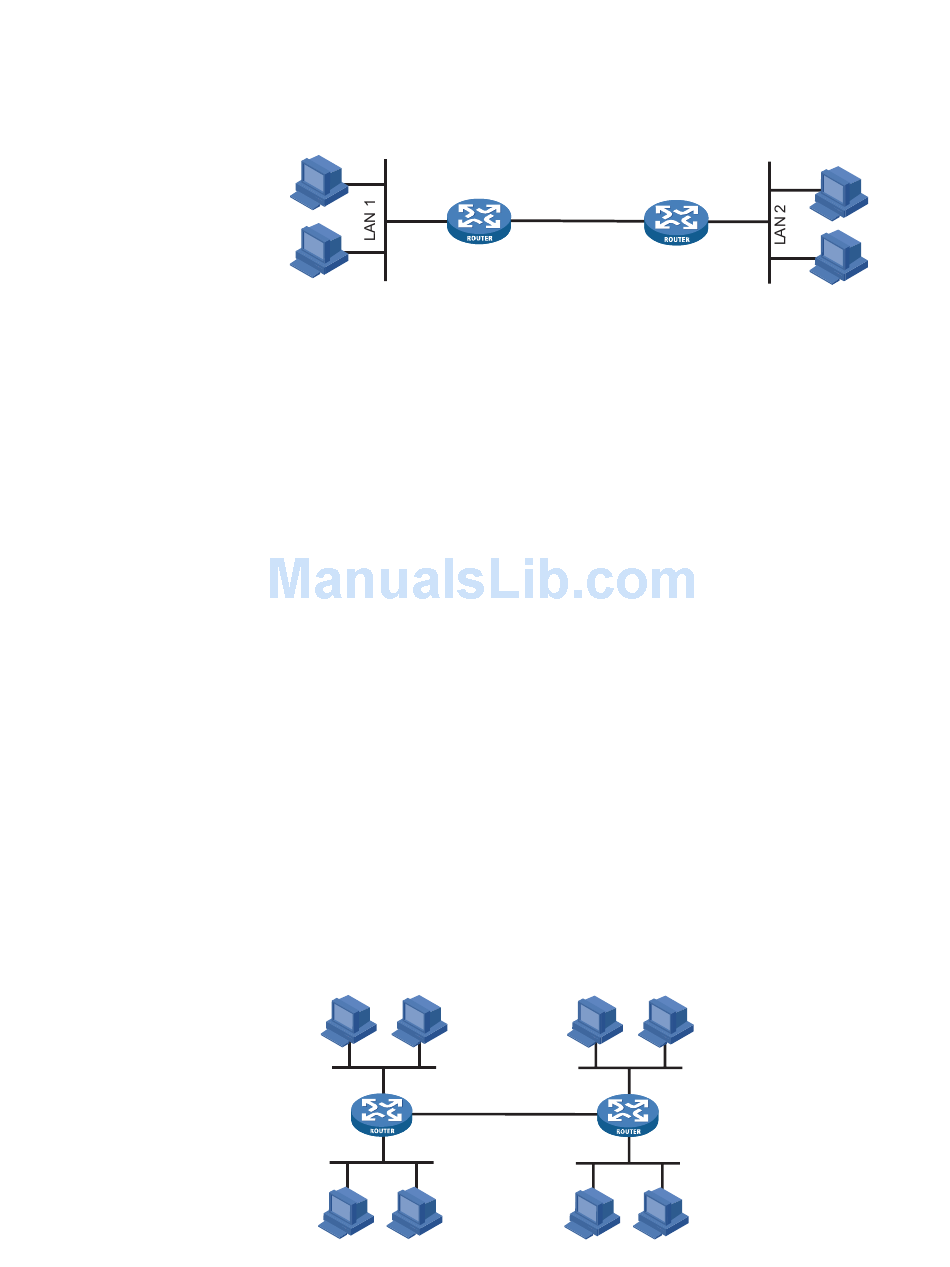

Figure 117 Network diagram for transparent bridging over HDLC configuration
Eth1 /0
Configuration procedure
1 Configure Router A
<RouterA> system-view
[RouterA] bridge enable
[RouterA] bridge 1 enable
[RouterA] interface ethernet 1/0
[RouterA-Ethernet1/0] bridge-set 1
[RouterA-Ethernet1/0] quit
[RouterA] interface serial 2/0
[RouterA-Serial2/0] link-protocol hdlc
[RouterA-Serial2/0] bridge-set 1
2 Configure Router B
<RouterB> system-view
[RouterB] bridge enable
[RouterB] bridge 1 enable
[RouterB] interface ethernet 1/0
[RouterB-Ethernet1/0] bridge-set 1
[RouterB-Ethernet1/0] quit
[RouterB] interface Serial 2/0
[RouterB-Serial2/0] link-protocol hdlc
[RouterB-Serial2/0] bridge-set 1
Network requirements
As shown in Figure 118, Router A and Router B are interconnected through a
network cable. Configure the bridging functionality on the sub-interfaces of the
routers to bridge traffic between the two bridges constituted with the two routers.
Network diagram
Figure 118 Network diagram for inter-VLAN transparent bridging configuration
Eth1 /0
Eth1/2
Router A
Eth1/1
Transparent Bridging Configuration Examples
S2 /0
S 2/0
Router A
Eth1/2
Eth1/0
Router B
Eth1/0
Router B
Eth1/1
