Asynchronous RTC
Multi-instance
Configuration Example
[Sysname-rta-template-rtcclient] vty 0 rtc-client remote 10.111.95.1
0 9000
[Sysname-rta-template-rtcclient] vty 0 password simple 123
# Apply the template to the interface.
[Sysname] interface async 1/0
[Sysname-Async1/0] async mode flow
[Sysname-Async1/0] rta terminal rtcclient 1
Network Requirements
Terminal CE A in the monitoring center and remote terminal CE B are in MPLS
VPNA and respectively connected to the interface Async1/0 on PE A and PE B. It is
required to monitor CE B in real time through CE A.
The terminal numbers of PE A and PE B are 2.
■
The listening port of the RTC server is 9000.
■
Network diagram

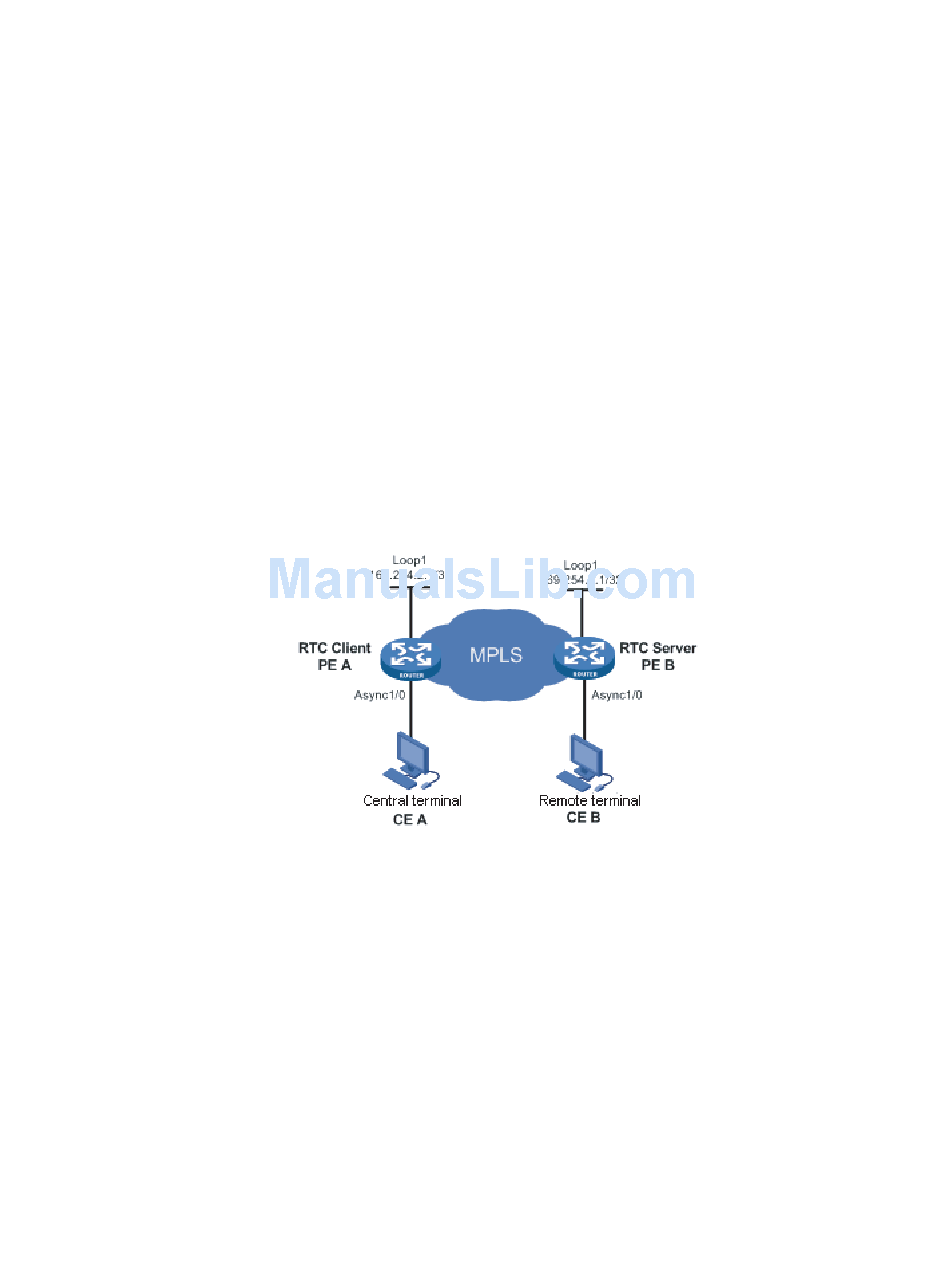

Figure 227 Network diagram for asynchronous RTC multi-instance configuration
Configuration procedure
1 Configure the RTC server.
# Configure MPLS L3VPN. For details, see
1459.
# Bind Loopback1 to VPNA.
[PEB] interface loopback 1
[PEB-LoopBack1] ip binding vpn-instance vpna
[PEB-LoopBack1] ip address 169.254.3.1 32
[PEB-LoopBack1] quit
# Enable terminal access.
[PEB] rta server enable
# Configure the listening port number of the RTC server.
RTC Terminal Access Configuration
"MPLS L3VPN Configuration" on page
767
