502 C 25: V
HAPTER OICE
Voice VLAN
Configuration
Examples
A Configuration
Examples of the Voice
VLAN under Automatic
Mode
VLAN C
ONFIGURATION
Network requirement
Create VLAN 2 and configure it as a voice VLAN with an aging time of 100
■
minutes.
The voice traffic sent by the IP phones is tagged. Configure Ethernet 1/1 as a
■
Hybrid port and as the access port, with VLAN 6 as the default VLAN.
The device allows voice packets from Ethernet 1/1 with an OUI address of
■
0011-2200-0000 and a mask of ffff-ff00-0000 to be forwarded through the
voice VLAN.

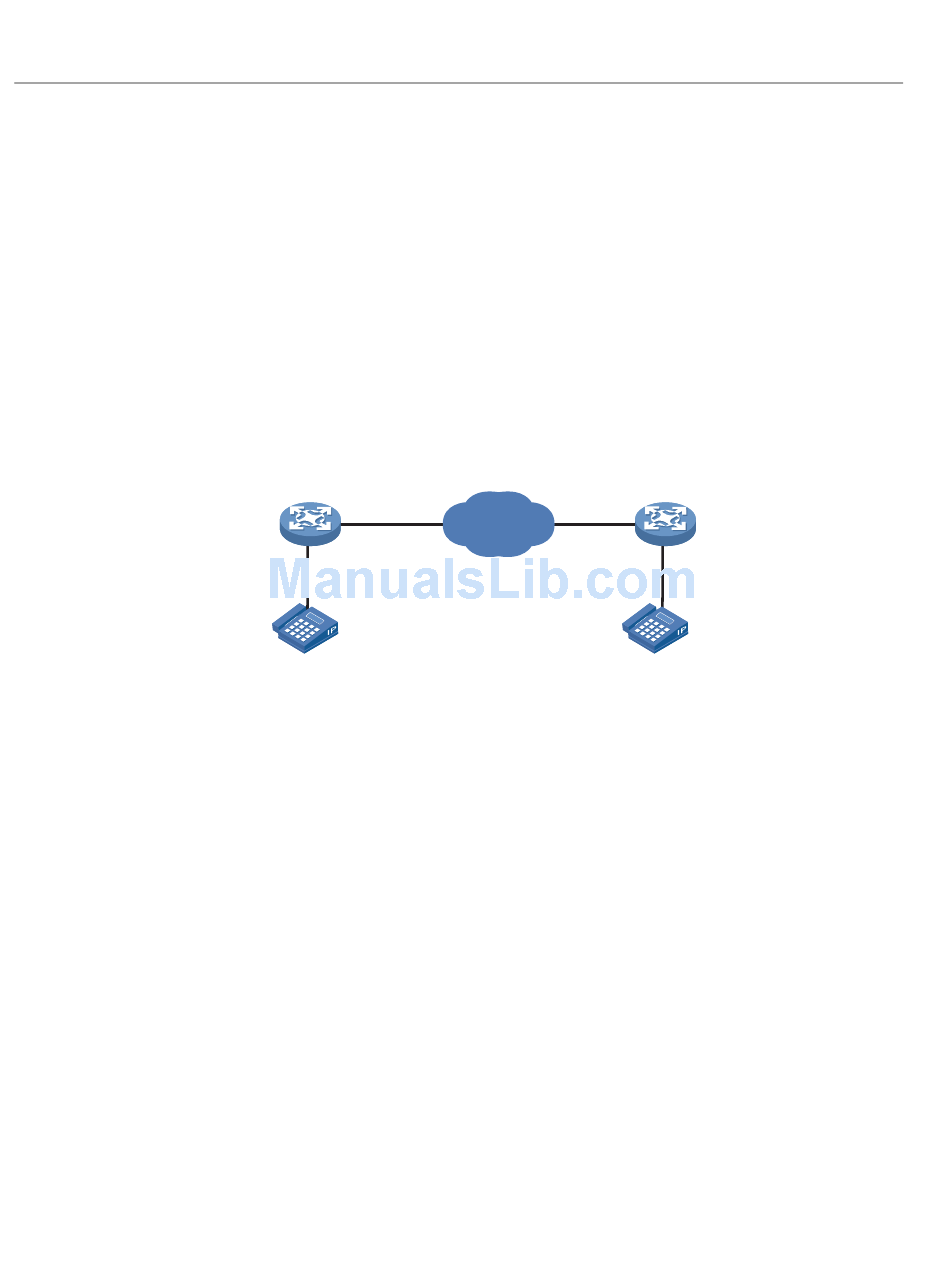

Network diagram
Figure 141 Voice VLAN under automatic mode
Device A
VLAN 2
Eth1/1
VLAN 2
010-1001
OUI: 0011 -2200 -0000
Mask: ffff-ff00-0000
Configuration procedure
# Create VLAN 2 and VLAN 6.
<DeviceA> system-view
[DeviceA] vlan 2
[DeviceA-vlan2] quit
[DeviceA] vlan 6
[DeviceA-vlan6] quit
# Configure the voice VLAN aging time.
[DeviceA] voice vlan aging 100
# Configure the OUI address 0011-2200-0000 as the legal address of the voice
VLAN.
[DeviceA] voice vlan mac-address 0011-2200-0000 mask ffff-ff00-0000
description test
# Enable the global voice VLAN feature.
[Sysname] voice vlan 2 enable
# Configure the working mode of the voice VLAN of Ethernet 1/1 as automatic.
(Optional, by default, the voice VLAN works in automatic mode)
Device B
Internet
0755 -2002
Eth2/1
