X2T Configuration
Example
X2T SVC Configuration
Example
# Assign an X.121 address for the interface.
[RouterB-Serial2/0] x25 x121-address 2
[RouterB-Serial2/0] quit
[RouterB] quit
# Place an X.25 PAD call to Router A.
<RouterB> pad 1
Trying 1...Open
Username:pad1
Password:pad1
Network requirements
The router connects X.25 and IP networks together. In this connection, the X.25
terminal communicates with the router through SVC and the X2T technology
applied on the router enables the communication between X.25 terminal and IP
host.
Network diagram

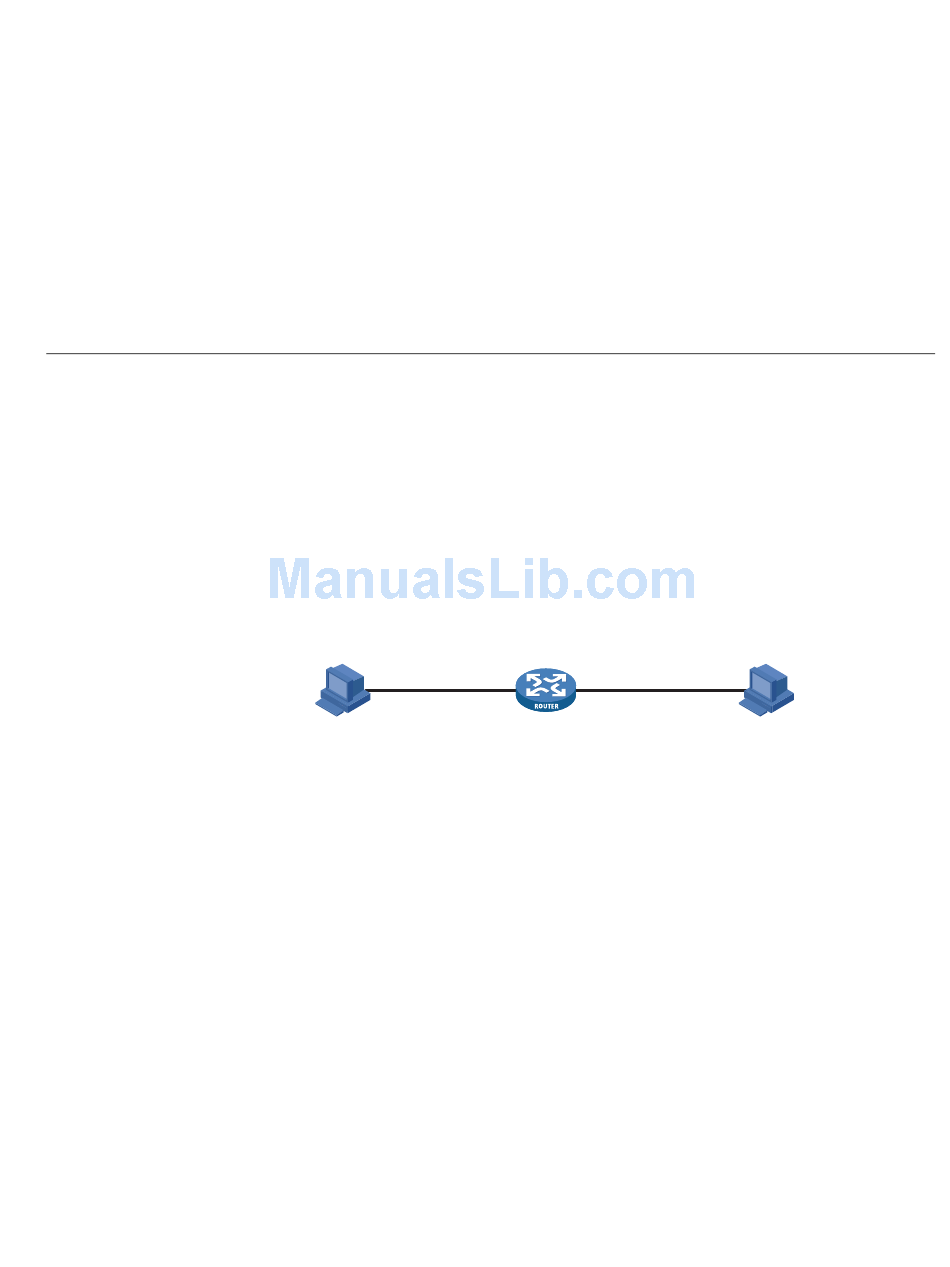

Figure 85 Network diagram for X2T SVC
X121 address:1111
X.25 network
X.25 terminal
X121 address:2222
Configuration procedure
# Enable X.25 switching.
<Router> system-view
[Router] x25 switching
# Configure interface Serial 2/0.
[Router] interface serial 2/0
[Router-Serial2/0] link-protocol x25 dce
[Router-Serial2/0] x25 x121-address 1111
[Router-Serial2/0] quit
# Configure interface Ethernet 1/0.
[Router] interface ethernet 1/0
[Router-Ethernet1/0] ip address 10.1.1.1 255.255.255.0
[Router-Ethernet1/0] quit
# Configure an X.25 route.
[Router] x25 switch svc 2222 interface serial 2/0
S2 /0
Eth1/0
10.1.1.1 /24
IP network
Router

X2T Configuration Example

10 .1.1.2/24
Host
339
