Transparent Bridging
over PPP
Network diagram

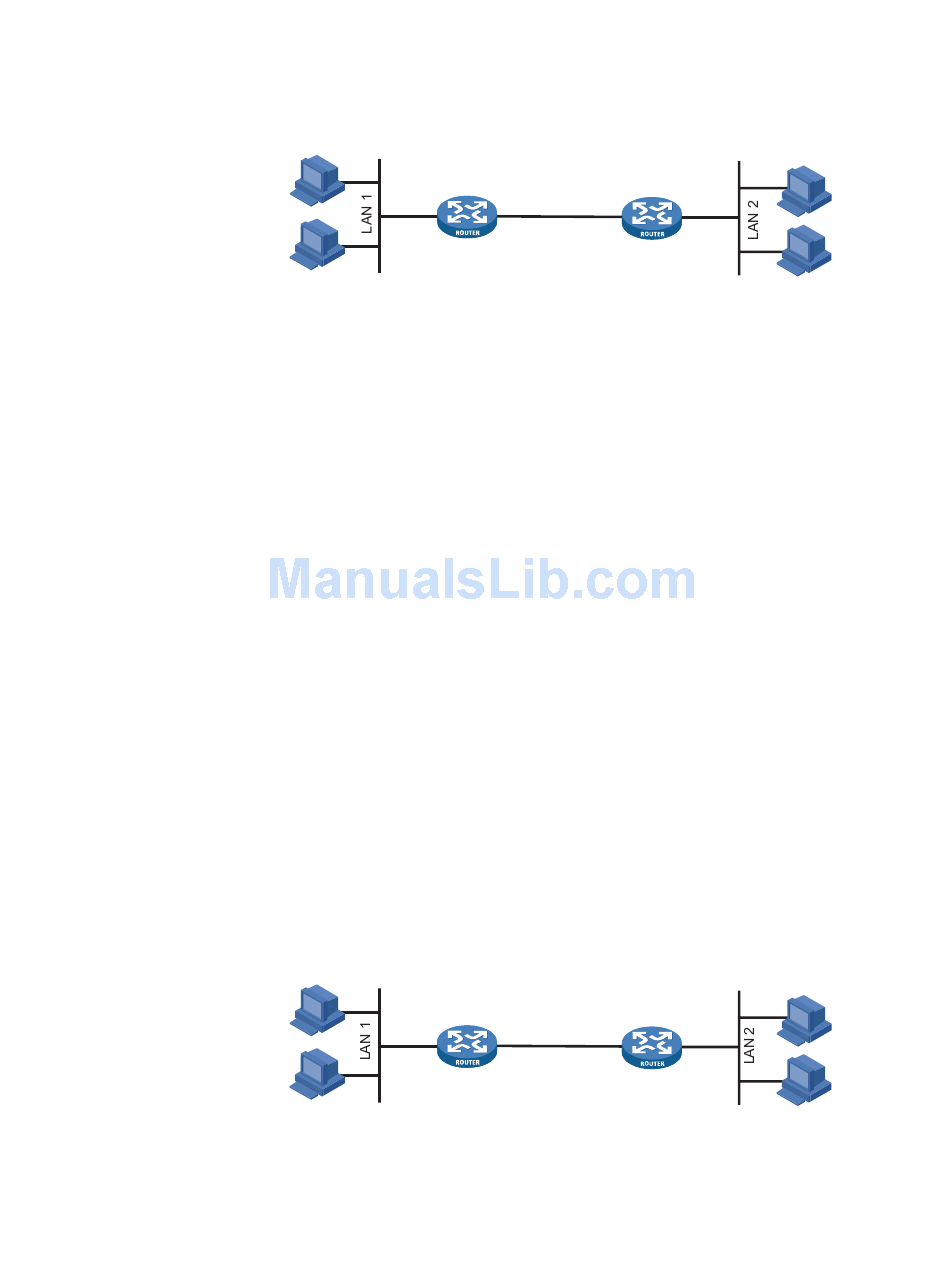

Figure 112 Network diagram for transparent bridging over ATM configuration
Eth1/0
Router A
Configuration procedure
1 Configure Router A
[RouterA] bridge enable
[RouterA] bridge 1 enable
[RouterA] interface ethernet 1/0
[RouterA-Ethernet1/0] bridge-set 1
[RouterA-Ethernet1/0] interface atm 5/0
[RouterA-Atm5/0] pvc 32/50
[RouterA-atm-pvc-Atm5/0-32/50] map bridge-group broadcast
[RouterA-atm-pvc-Atm5/0-32/50] quit
[RouterA-Atm5/0] bridge-set 1
2 Configure Router B
[RouterB] bridge enable
[RouterB ]bridge 1 enable
[RouterB] interface ethernet 1/0
[RouterB-Ethernet1/0] bridge-set 1
[RouterB-Ethernet1/0] interface atm 5/0
[RouterB-Atm5/0] pvc 32/50
[RouterB-atm-pvc-Atm5/0-32/50] map bridge-group broadcast
[RouterB-atm-pvc-Atm5/0-32/50] quit
[RouterB-Atm5/0] bridge-set 1
Network requirements
As shown in Figure 113, LAN 1 and LAN 2 are attached to Router A and Router B
respectively, which are interconnected over PPP. Configure the two routers to
enable transparent bridging between the two LAN segments.
Network diagram
Figure 113 Network diagram for transparent bridging over PPP configuration
Eth 1 /0
Router A
Configuration procedure
1 Configure Router A
<RouterA> system-view
[RouterA] bridge enable
[RouterA] bridge 1 enable
Transparent Bridging Configuration Examples
ATM5/0 ATM5/0
Router B
S2/0 S2 /0
Router B
Eth1/0
Eth 1/0
