Network diagram

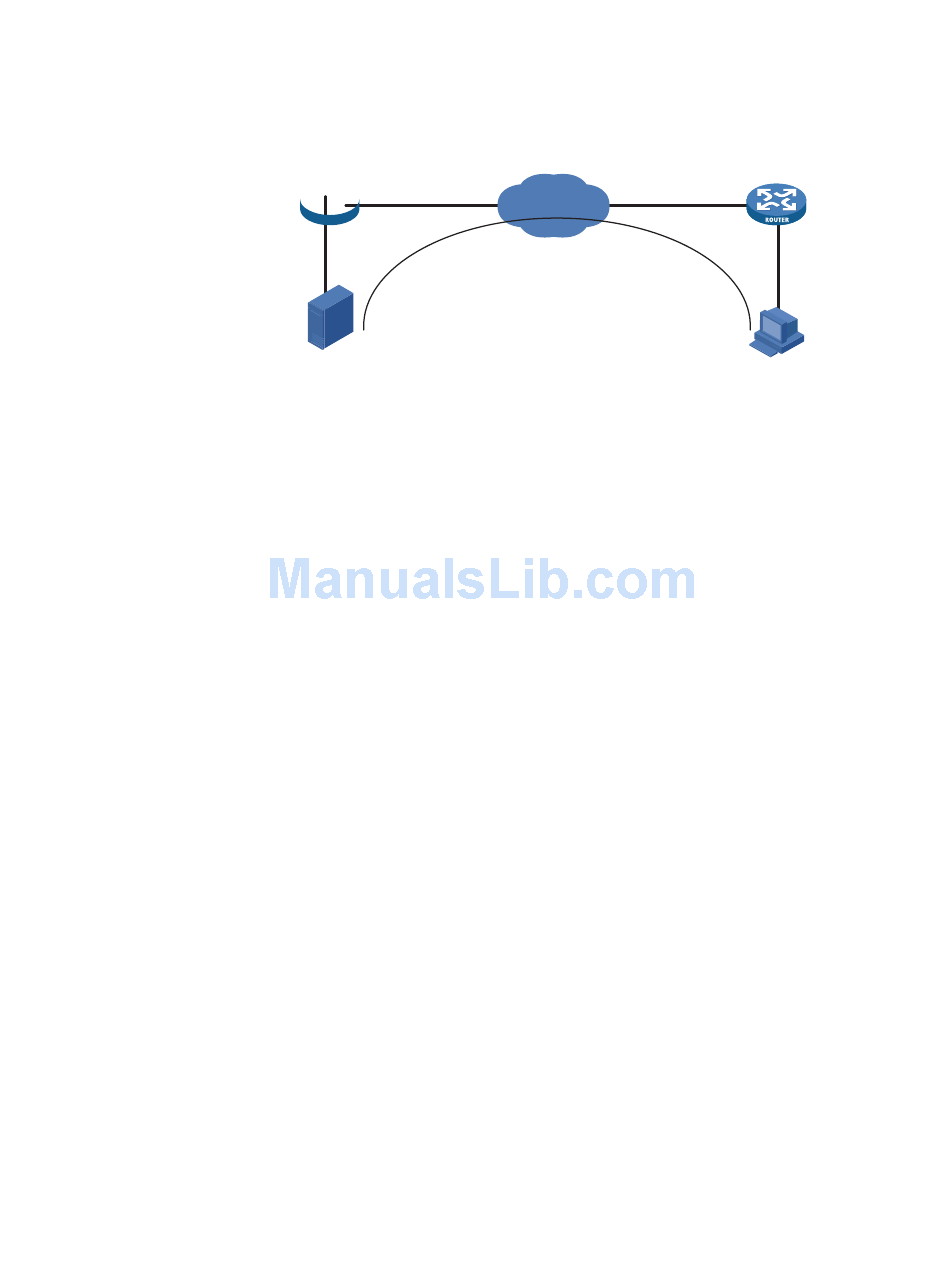

Figure 37 Network diagram for SDLC-to-SDLC DLSw configuration
Router A
1.1.1.1 /24
S 2/0
SDLC
IBM AS/400
Configuration procedure
1 Configure Router A:
# Configure interface parameters on Router A to ensure that the local DLSw peer
1.1.1.1 and remote peer 2.2.2.2 are pingable to each other (specific configuration
steps omitted).
# Configure DLSw on Router A.
<RouterA> system-view
[RouterA] dlsw local 1.1.1.1
[RouterA] dlsw remote 2.2.2.2
[RouterA] interface serial 2/0
[RouterA-Serial2/0] link-protocol sdlc
[RouterA-Serial2/0] sdlc enable dlsw
[RouterA-Serial2/0] sdlc status secondary
[RouterA-Serial2/0] sdlc controller c1
[RouterA-Serial2/0] sdlc mac-map remote 0000-2222-00c1 c1
[RouterA-Serial2/0] sdlc mac-map local 0000-1111-0000
[RouterA-Serial2/0] baudrate 9600
[RouterA-Serial2/0] code nrzi
2 Configure Router B:
# Configure interface parameters on Router B to ensure that the local DLSw peer
2.2.2.2 and remote peer 1.1.1.1 are pingable to each other (specific configuration
steps omitted)
# Configure DLSw on Router B.
<RouterB> system-view
[RouterB] dlsw local 2.2.2.2
[RouterB] dlsw remote 1.1.1.1
[RouterB] interface serial 2/0
[RouterB-Serial2/0] link-protocol sdlc
[RouterB-Serial2/0] sdlc enable dlsw
[RouterB-Serial2/0] sdlc status primary
[RouterB-Serial2/0] sdlc controller c1
[RouterB-Serial2/0] sdlc mac-map remote 0000-1111-00c1 c1
[RouterB-Serial2/0] sdlc mac-map local 0000-2222-0000
Internet
SDLC address: 0xC1
DLSw Configuration Examples
Router B
2 .2.2.2/24
S2/0
SDLC
Host(SNA)
SDLC address: 0xC1
