GVRP Configuration
Example III
1 Configure Device A
2 Configure Device B
# Display dynamic VLAN information on Device A.
[DeviceA] display vlan dynamic
No dynamic vlans exist!
# Display dynamic VLAN information on Device B.
[DeviceB] display vlan dynamic
Now, the following dynamic VLAN exist(s):
2
Network requirements
To prevent dynamic VLAN information registration and update among devices, set
the GVRP registration mode to "forbidden" on Device A and "normal" on Device
B.
Network diagram

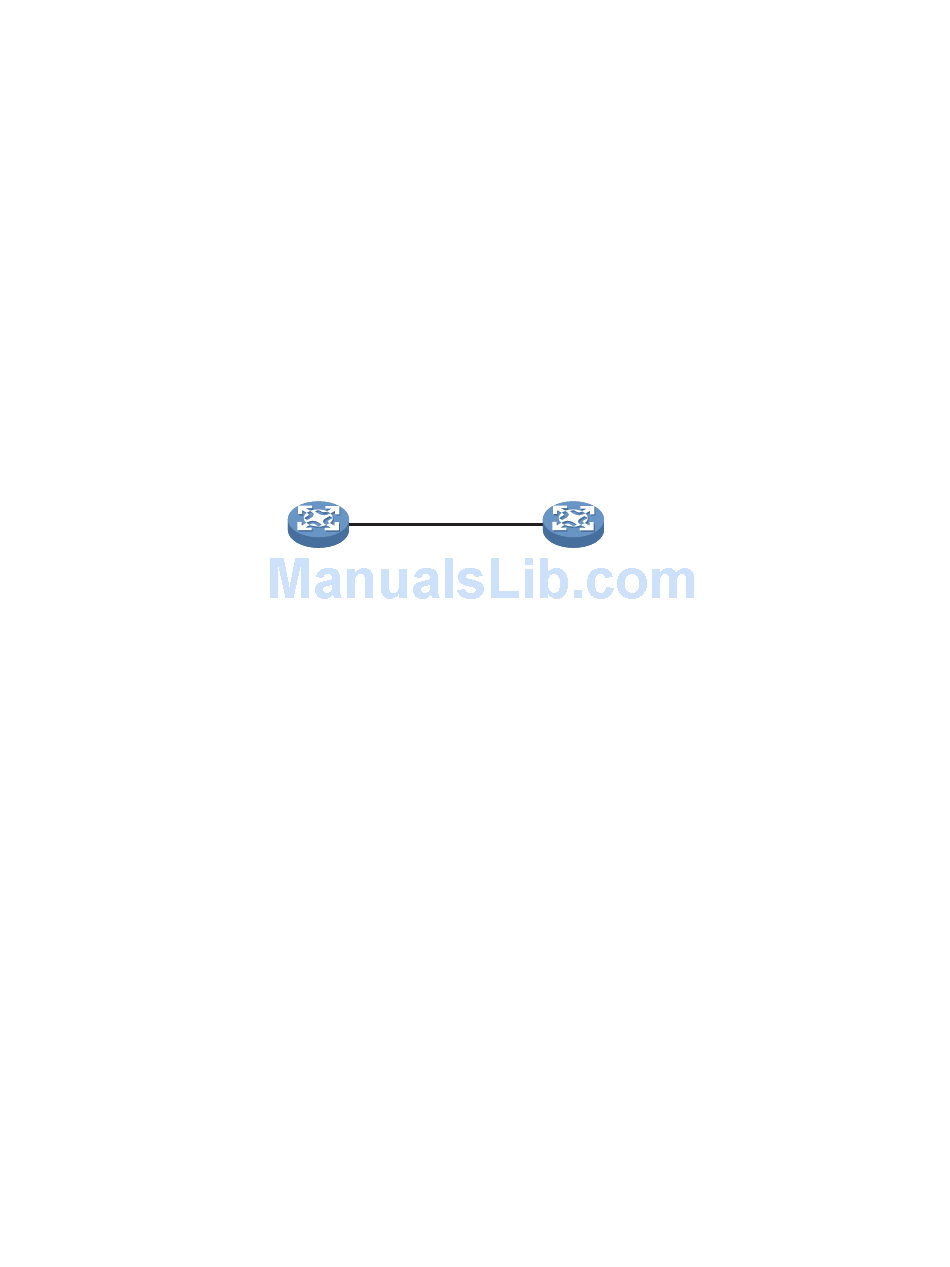

Figure 55 Network diagram for GVRP configuration
Eth1/0
Device A
Configuration procedure
# Enable GVRP globally.
<DeviceA> system-view
[DeviceA] gvrp
# Configure port Ethernet 1/0 as a trunk port, allowing all VLANs to pass.
[DeviceA] interface ethernet 1/0
[DeviceA-Ethernet1/0] port link-type trunk
[DeviceA-Ethernet1/0] port trunk permit vlan all
# Enable GVRP on Ethernet 1/0.
[DeviceA-Ethernet1/0] gvrp
# Set the GVRP registration type to forbidden on the port.
[DeviceA-Ethernet1/0] gvrp registration forbidden
[DeviceA-Ethernet1/0] quit
# Create VLAN 2 (a static VLAN).
[DeviceA] vlan 2
# Enable GVRP globally.

GVRP Configuration Example

Eth1/1
Device B
