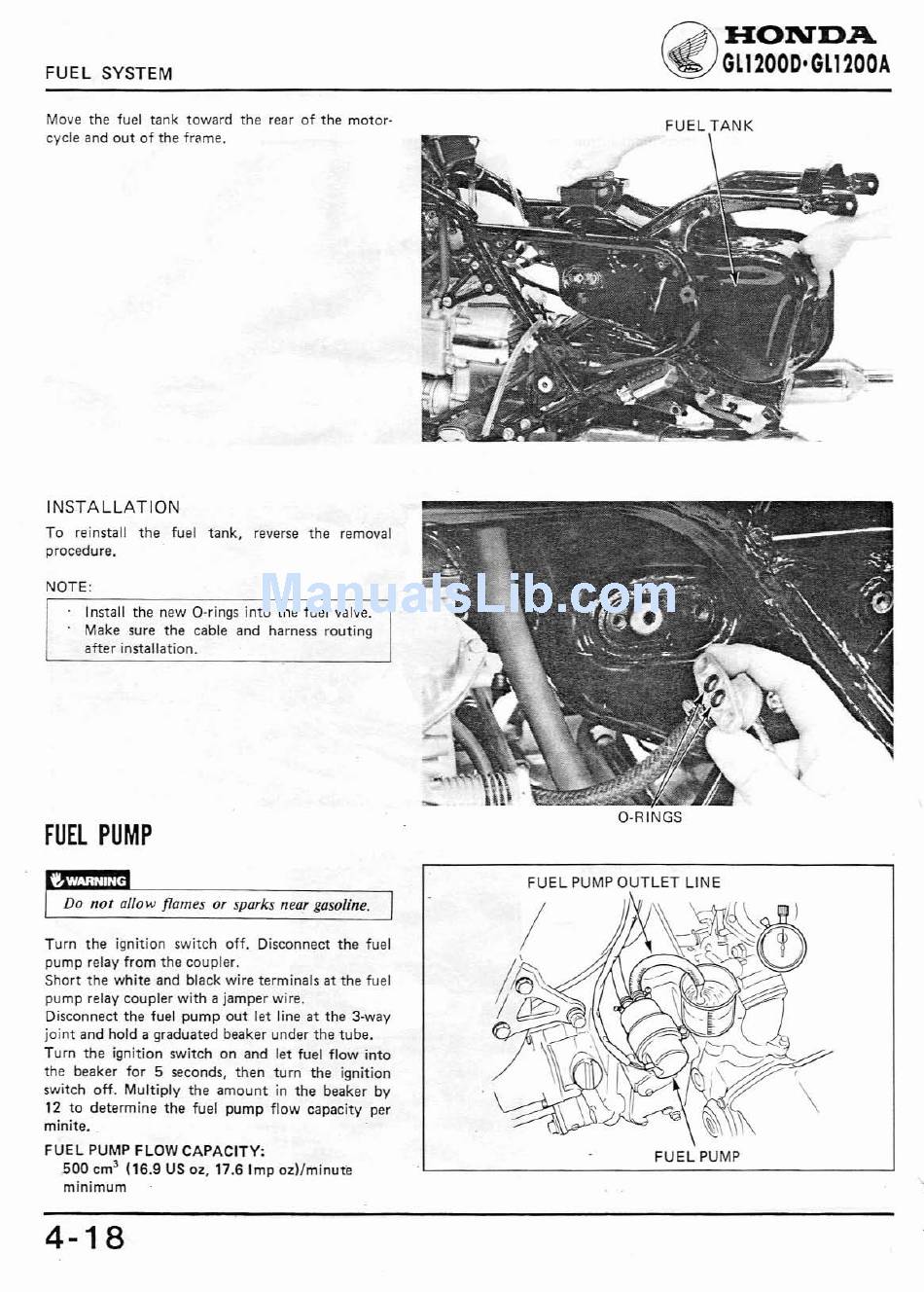

FUEL SYSTEM
Move the fuel tank toward the rear of the motor-
cycle and out of the frame.
INSTALLATION
To reinstall the fuel tank, reverse the removal
procedure.
NOTE'
Install the new O-rings into the fuel valve.
Make sure the cable and harness routing
after installation.
FUEL PUMP
Do not aI/ow flames or sparks near gasoline.
Turn the ignition switch off. Disconnect the fuel
pump relay from the coupler.
Short the white and black wire terminals at the fuel
pump relay coupler with a jam per wire.
Disconnect the fuel pump out let line at the 3-way
joint and hold a graduated beaker under the tube.
Turn the ignition switch on and let fuel flow into
the beaker for 5 seconds, then turn the ignition
switch off. Multiply the amount in the beaker by
12 to determine the fuel pump flow capacity per
minite.
FUEL PUMP FLOW CAPACITY:
500 cm
l
(16.9 US
OZ,
17.6 Imp ezl/minute
minimum
4-18
~HONDA
~GL1200D'GL1200A
FUEL TANK
O·RINGS
FUEL PUMP OUTLET LINE
FUEL PUMP
