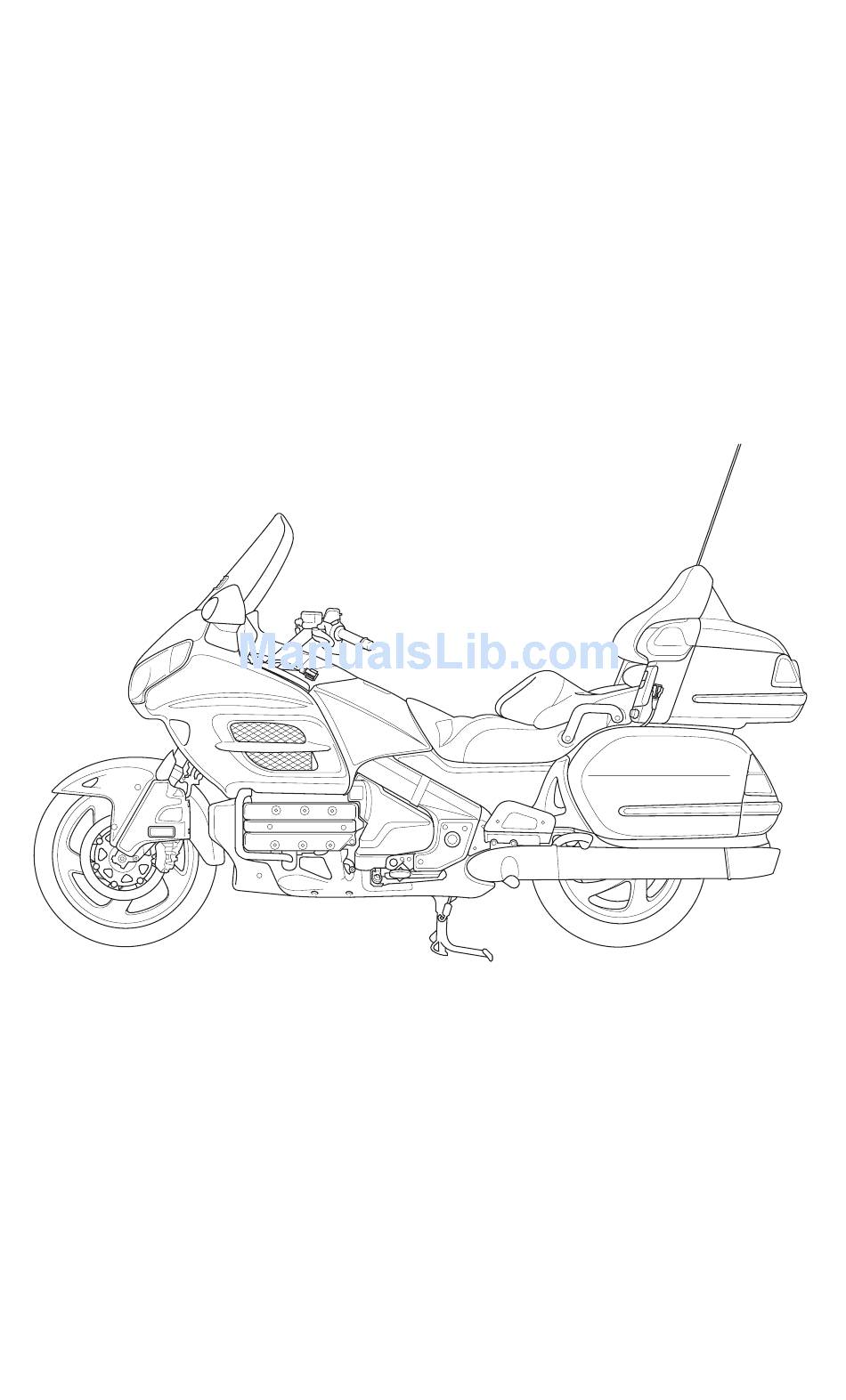

  • Page 1 2009 Honda GL1800 GOLDWING OWNER’S MANUAL...
  • Page 2 Introduction Congratulations on choosing a GL1800 GOLDWING motorcycle. When you own a Honda, you’re part of a worldwide family of satisfied customers people who appreciate Honda’s reputation for building quality into every product. Your GOLDWING has earned its reputation as the ultimate luxury touring motorcycle.
  • Page 3 Honda dealer knows your motorcycle best and is dedicated to your complete satisfaction. Please report any change of address or ownership to your Honda dealer so we will be able to contact you concerning important product information.
  • Page 4 A Few Words About Safety Your safety, and the safety of others, is very important. And operating this motorcycle safely is an important responsibility. To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this manual. This information alerts you to potential hazards that could hurt you or others.
  • Page 5 The location, function, and operation of the audio components on your motorcycle. Servicing Your Honda ..................Why your motorcycle needs regular maintenance, what you need to know before servicing your Honda, an owner maintenance schedule, and instructions for specific maintenance and adjustment items. Contents...
  • Page 6 What to do if you have a flat tire, your engine won’t start, etc. Technical Information ..................ID numbers, technical specifications, and other technical facts. Consumer Information ................... Information on warranties, emission controls, how to get Honda service manuals, and... ‘‘Reporting Safety Defects’’ ..............Table of Contents ....................

  • Page 7: Motorcycle Safety

    Motorcycle Safety This section presents some of the most important information and recommendations to help you ride your motorcycle safely. Please take a few moments to read these pages. This section also includes information about the location of safety labels on your motorcycle. Important Safety Information ................

  • Page 8: Motorcycle Safety

    Important Safety Information Your motorcycle can provide many years of service and pleasure if you take responsibility for your own safety and understand the challenges you can meet while riding. There is much that you can do to protect yourself when you ride. You’ll find many helpful recommendations throughout this manual.

  • Page 9: Important Safety Information

    So don’t drink and ride, and don’t let your friends drink and ride either. Keep Your Honda in Safe Condition It’s important to keep your motorcycle properly maintained and in safe riding condition.
  • Page 10 Accessories We strongly recommend that you use only Honda Genuine Accessories that have been specifically designed and tested for your motorcycle. Because Honda cannot test all other accessories, you must be personally responsible for proper selection, installation, and use of non-Honda accessories.

  • Page 11: Accessories & Modifications

    Accessories & Modifications Modifications We strongly advise you not to remove any original equipment or modify your motorcycle in any way that would change its design or operation. Such changes could seriously impair your motorcycle’s handling, stability, and braking, making it unsafe to ride. Removing or modifying your lights, exhaust system, emission control system, or other equipment can also make your motorcycle illegal.

  • Page 12: Safety Labels

    Safety labels on your motorcycle either warn you of potential hazards that could cause serious injury or they provide important safety information. Read these labels carefully and don’t remove them. If a label comes off or becomes hard to read, contact your Honda dealer for a replacement. (Models not equipped with Airbag)

  • Page 13: Safety Labels

    Safety Labels Motorcycle Safety...
  • Page 14 Safety Labels Motorcycle Safety...
  • Page 15 Safety Labels For USA For Canada Motorcycle Safety...
  • Page 16 Motorcycle Safety...

  • Page 17: Table Of Contents

    Instruments & Controls This section shows the location of all gauges, indicators, and controls you would normally use before or while riding your motorcycle. The items listed on this page are described in this section. Instructions for other components are presented in other sections of this manual where they will be most useful.

  • Page 18: Operation Component Locations

    Operation Component Locations (Models not equipped with Navigation System) audio system controls windscreen height lever left handlebar controls windscreen ventilation louver (Models equipped with Comfort Package) handgrip heater switch clutch lever front seat heater switch windscreen height lever left fairing front brake pocket lever...
  • Page 19 Operation Component Locations (Models equipped with Navigation System) audio system controls windscreen ventilation louver windscreen height lever ignition switch front seat heater switch handgrip heater switch left handlebar right handlebar controls controls windscreen height lever front brake lever clutch lever left fairing throttle grip pocket...
  • Page 20 Operation Component Locations radio antenna trunk side pocket saddlebag helmet holder foot warmer ventilation louver (Models equipped with Comfort Package) rear brake pedal Instruments & Controls...
  • Page 21 Operation Component Locations foot warmer ventilation louver lever rear headset terminal (Models equipped with Comfort Package) front headset terminal trunk side pocket trunk shift lever saddlebag foot warmer ventilation louver helmet holder (Models equipped with Comfort Package) rear seat heater switch (Models equipped with Comfort Package) Instruments &...

  • Page 22: Gauges & Indicators

    Gauges & Indicators The gauges and indicators on your motorcycle keep you informed, alert you to possible problems, and make your riding safer and more enjoyable. Refer to the gauges and indicators frequently. Their functions are described on the following pages.
  • Page 23 When applicable, the high beam and neutral indicators come on when you turn the ignition switch ON and remain on until you select the low beam or shift out of neutral. If one of these indicators does not come on when it should, have your Honda dealer check for problems. speedometer Shows riding speed in miles (USA) or kilometers (Canada) per hour.
  • Page 24 Gauges & Indicators turn signal indicator (green) Flashes when either turn signal operates. reverse system indicator Lights when the reverse system is engaged. neutral indicator (green) Lights when the transmission is in neutral. overdrive indicator Lights when the transmission is in overdrive (5th gear). low oil pressure indicator (red) Lights when engine oil pressure is low enough to cause engine damage.
  • Page 25 ON, it is possible there is a problem and it will not turn on until the problem is solved. With this indicator on, the low tire pressure indicator will not come on when a tire loses pressure, take the motorcycle to your Honda dealer to have the system checked. low tire pressure indicator (amber) Flashes or lights when one or more of your motorcycle tires are significantly low on pressure.
  • Page 26 Gauges & Indicators (Models equipped with ABS) Anti-Lock Brake System indicator (ABS) (amber) Lights when there is any abnormality in the anti-lock brake system (ABS). Normally, this indicator comes on when the ignition switch is turned ON, and goes off after you ride the motorcycle at a speed above 6 mph (10 km/h). If the indicator comes on while riding, stop the motorcycle in a safe place and turn off the engine.
  • Page 27 Gauges & Indicators low fuel indicator Lights as a reminder to refuel soon. The indicator comes on when there is about 1.16 US gal (4.4 liters) left in the fuel tank. Lamp Check. fuel gauge Shows the approximate fuel supply available, if your motorcycle is on a level surface.

  • Page 28: Multi Information Display

    Multi Information Display Your motorcycle is equipped with a Multi Information Display that presents various displays. This section explains display functions and operations. (Models not equipped with Navigation System) SETUP button INFO button DIM button TRIP button (Models equipped with Navigation System) DISP button INFO button DIM button...

  • Page 29: Opening/Ending Ceremony

    Multi Information Display Opening/Ending Ceremony (Models not equipped with Navigation System) When the ignition switch is turned ON or ACC, the display presents an ‘‘opening ceremony.’’ When the ignition switch is turned OFF, the display presents an ‘‘ending ceremony.’’ Instruments & Controls...

  • Page 30: On/Off-Opening/Ending Ceremony

    Multi Information Display On/Off-Opening/Ending Ceremony (Models not equipped with Navigation System) The opening/ending ceremony can be turned off. Push the SETUP button to show the CLOCK ADJUST display (page Push the DIM button to show the OPENING/ENDING CEREMONY display. Push the TRIP or INFO button to switch ON/OFF. Push the SETUP button to fix the setting.

  • Page 31: Special Message For Opening/Ending Ceremony

    Multi Information Display Special Message for Opening/Ending Ceremony (Models not equipped with Navigation System) Select ‘‘ON’’ on the OPENING/ENDING CEREMONY display (page Push and hold the TRIP button. Push and hold the INFO button. Then push the SETUP button. SETUP button INFO button TRIP button The display should now show ‘‘STANDARD’’...
  • Page 32 Multi Information Display Use the INFO and TRIP buttons to cycle through the alphabet, number and symbol selection. Capital Letters A B C D E F G H I J K L M N O P Q R S T U V W X Y Z Numbers 0 1 2 3 4 5 6 7 8 9 Symbols...

  • Page 33: Odometer/Tripmeter

    Multi Information Display Odometer/Tripmeter ODO (Odometer) shows the total miles (USA) or kilometers (Canada) ridden. TRIP (Tripmeter) shows the number of miles (USA) or kilometers (Canada) ridden since you last reset the meter. (Models not equipped with (Models equipped with Navigation System) Navigation System) For USA...

  • Page 34: Switch The Day Mode Display And Night Mode Display

    Multi Information Display Switch the Day Mode Display and Night Mode Display (Models equipped with Navigation System) The display automatically switches to the Day mode or Night mode in accordance with the time. To switch the display manually, push and hold the DIM button.

  • Page 35: Display Illumination Adjustment

    Multi Information Display Display Illumination Adjustment (Models not equipped with Navigation System) To adjust the brightness of the display: Push the DIM button once. ‘‘DIMMER’’ will display. To brighten the display push the TRIP button ( ). To darken the display push the INFO button ( ).
  • Page 36 When approximately 5 seconds pass without operating a button, the display automatically returns to the previous display. The display can become dark when the display is very hot. If it does not restore the original brightness, consult your Honda dealer. Instruments & Controls...

  • Page 37: Digital Clock

    Multi Information Display Digital Clock (Models not equipped with Navigation System) The display shows the hour and minute. To adjust the time: Turn the ignition switch to ON or ACC. Push the SETUP button once. ‘‘CLOCK ADJUST’’ will display. To set the hour, press and release the INFO button until the desired hour appears.

  • Page 38: Air Temperature Meter

    Multi Information Display Air Temperature Meter Push the INFO button once to display the air temperature. After 5 seconds, the previous display returns. USA: Fahrenheit (°F) Canada: Centigrade (°C) Temperature Display (Models not equipped with Navigation System) Below 13°F ( 11°C) ‘‘- -’’...

  • Page 39: Travel Trunk & Saddlebags Open Indicator

    Multi Information Display Travel Trunk & Saddlebags Open Indicator This indicator turns on when the ignition switch is ON and your motorcycle’s travel trunk or saddlebags are open. If all compartments are not fully closed, the display will blink OPEN and indicate the open compartment(s).

  • Page 40: Display Type Selection

    Multi Information Display Display Type Selection (Models equipped with Navigation System) Press the DISP button to toggle between: The Multi Information Display (time, odometer, and tripmeter) A Navi full screen map with the time A split screen with the Multi information condensed in a bar below the map. For USA For Canada DISP button...

  • Page 41: Changing The Information Display

    Multi Information Display Changing the Information Display The display changes as follows each time the INFO button is pushed. When approximately 5 seconds pass without operating a button, the display automatically returns to the previous display. (Models not equipped with Navigation System) INFO button INFO button INFO button...
  • Page 42 Multi Information Display (Models equipped with Navigation System) For USA For Canada INFO button INFO button INFO button INFO button INFO button INFO button Instruments & Controls...

  • Page 43: Controls & Features

    Controls & Features Ignition Switch LOCK The ignition switch is used for starting and stopping the engine (page ) and to lock the steering for theft prevention (page ). Insert the key and turn it to the right for the ON and ACC (accessory) positions. Push down on the key and turn it to the left to the LOCK (steering lock) position.

  • Page 44: Engine Stop Switch

    Controls & Features Engine Stop Switch RIGHT HANDLEBAR engine stop switch CRUISE CONTROL master switch RESUME/ACCEL switch SET/DECEL switch reverse (RVS) switch start/reverse button The engine stop switch is used to stop the engine in an emergency. To operate, turn the switch to the OFF position. The switch must be in the RUN position to start the engine, and it should normally remain in the RUN position even when the engine is OFF.

  • Page 45: Start/Reverse Button

    Controls & Features Start/Reverse Button The start/reverse button is used for starting the engine. Pushing the start/reverse button in starts the engine. See Starting Procedure, page When the start/reverse button is pushed, the starter motor will crank the engine; the headlight will automatically go out, but the taillight will stay on. The starter motor will not operate if the engine stop switch is in the OFF position when the start/reverse button is pushed.

  • Page 46: Headlight Dimmer Switch

    Controls & Features Headlight Dimmer Switch The headlight dimmer switch is used to change between the high and low headlight beams. To operate, push the button to HI for high beam, LO for low beam. Turn Signal Switch The turn signal switch is used to signal a turn. To operate, move the switch all the way to the left or right and release it.

  • Page 47: Hazard Switch

    Controls & Features Hazard Switch The hazard switch is used to activate the hazard lights on your motorcycle if you need to stop near heavy traffic or if your motorcycle is disabled. To operate, turn the ignition key to the ON or ACC position, and push the hazard switch.

  • Page 48: Headlight Beam Adjustment Knob

    Controls & Features Headlight Beam Adjustment Knob The adjustment knob is used to raise or lower the height of the headlight beam. You may need to adjust the headlight if you change to a lighter or heavier load than you normally carry on your motorcycle. If you carry a heavier or lighter than normal load, you may need to adjust your headlight beam so you can better see the road ahead and don’t blind oncoming drivers.

  • Page 49: Before Riding

    Before Riding Before each ride, you need to make sure you and your Honda are both ready to ride. To help get you prepared, this section discusses how to evaluate your riding readiness, what items you should check on your motorcycle, and adjustments to make for your comfort, convenience, or safety.

  • Page 50: Are You Ready To Ride

    Are You Ready to Ride? Before you ride your motorcycle for the first time, we urge you to: Read this owner’s manual. Make sure you understand all the safety messages. Know how to operate all the controls. Before each ride, be sure: You feel well and are in good physical and mental condition.
  • Page 51 Are You Ready to Ride? Helmets and Eye Protection Your helmet is your most important piece of riding gear because it offers the best protection against head injuries. A helmet should fit your head comfortably and securely. A bright-colored helmet and reflective strips can make you more noticeable in traffic.

  • Page 52: Rider Training

    Are You Ready to Ride? Rider Training Developing your riding skills is an on-going process. Even if you have ridden other motorcycles, take time to become familiar with how this motorcycle works and handles. Practice riding the motorcycle in a safe area to build your skills. Do not ride in traffic until you get accustomed to the motorcycle’s controls, and feel comfortable with its size and weight.

  • Page 53: Is Your Motorcycle Ready To Ride

    Is Your Motorcycle Ready to Ride? Before each ride, it’s important to inspect your motorcycle and make sure any problem you find is corrected. A pre-ride inspection is a must, not only for safety, but because having a breakdown, or even a flat tire, can be a major inconvenience.
  • Page 54 ). Periodic maintenance should also be done at least once a month, no matter how often you ride. Remember, be sure to take care of any problem you find, or have your Honda dealer correct it before you ride. Before Riding...

  • Page 55: Load Limits & Guidelines

    However, exceeding the weight limit or carrying an unbalanced load can seriously impair your motorcycle’s handling, braking, and stability. Non-Honda accessories, improper modifications, and poor maintenance can also reduce your safety margin.

  • Page 56: Load Limits

    Load Limits & Guidelines Load Limits Following are the load limits for your motorcycle: 410 lbs (186 kg) maximum weight capacity: 419 lbs (190 kg) includes the weight of the rider, (Canada only) passenger, all cargo, and all accessories. maximum cargo weight: 71 lbs (32 kg) includes following maximum compartment (Models not equipped...

  • Page 57: Loading Guidelines

    Load Limits & Guidelines Loading Guidelines Improperly loading your motorcycle can affect its stability and handling. Even if your motorcycle is properly loaded, you should ride at reduced speeds and never exceed 80 mph (130 km/h) when carrying cargo. Follow these guidelines whenever you carry a passenger or cargo: Check that both tires are properly inflated (page If you change your normal load, you may need to adjust the rear suspension (page...

  • Page 58: Cargo Compartment

    Cargo Compartment Your motorcycle comes with a lockable travel trunk and dual saddlebags, plus two trunk side pockets and front fairing pockets. Instructions on how to open, close, and lock these compartments follow. Travel Trunk & Saddlebags The travel trunk and saddlebags are for lightweight items. Cargo in the travel trunk and both saddlebags should not exceed: 20.0 lbs (9.0 kg) each However, regardless of compartment capacity, be sure you do not exceed the...
  • Page 59 Cargo Compartment To Open & Shut the Travel Trunk & Saddlebags latch levers OPEN left saddlebag travel trunk right saddlebag To open the travel trunk, pull the middle latch lever down. To open the right or left saddlebag, pull the right or left latch lever down. TO CLOSE: To shut each compartment, place your hands flat on the edges of its lid and press down until it is firmly closed and check the travel trunk &...
  • Page 60 Cargo Compartment If a Saddlebag Won’t Open REAR plug PUSH Open the travel trunk and remove the plug from the right or left access hole in the floor of the trunk. Put your finger through the access hole and push the rod. The saddlebag should open.
  • Page 61 Cargo Compartment Storage Box cover storage box Your motorcycle has a storage box in the travel trunk. To open the storage box, push forward on the cover and raise it. Before Riding...

  • Page 62: Remote Transmitter

    Cargo Compartment Remote Transmitter You can lock and unlock your motorcycle’s trunk and saddlebags with the remote transmitter. If the ignition switch is left off for more than one month, the remote transmitter will no longer operate the remote control system. To reset the system, turn the ignition switch ON.
  • Page 63 Cargo Compartment To open the trunk, push and hold the trunk release button for approximately one second. trunk release button Call Mode The call mode is provided to let you locate your motorcycle when it is parked in a large lot. Push and hold the CALL button, the horn will sound and the turn signal lights will blink two times.
  • Page 64 Cargo Compartment Replacing the Battery When the remote transmitter’s battery begins to get weak, it may take several pushes on the button to lock or unlock the compartments, and the LED will get dim. Replace the battery as soon as possible. Battery type: CR2025 Recycle or dispose of batteries properly, according to local regulations.
  • Page 65 If you lose a transmitter, you will need to have the replacement programmed to your motorcycle’s system by your Honda dealer. Any other transmitters you have will also need to be reprogrammed.

  • Page 66: Fairing Pockets

    Cargo Compartment Fairing Pockets LEFT SIDE (Models not equipped with Airbag) RIGHT SIDE button ignition key left fairing pocket right fairing pocket The fairing pockets are for lightweight items. Cargo in each fairing pocket should not exceed: 4.5 lbs (2.0 kg) To open the left fairing pocket, push the button.

  • Page 67: Trunk Side Pockets

    Cargo Compartment Trunk Side Pockets trunk side pockets lever The trunk side pockets are for soft, lightweight items. Cargo in each trunk side pocket should not exceed: 1.0 lbs (0.5 kg) Do not put sharp or hard objects in the trunk side pockets. Such objects could interfere with opening the lids or damage the pockets.

  • Page 68: Comfort & Convenience Adjustment

    Comfort & Convenience Adjustment Your motorcycle has many features you can adjust to suit your personal preference and increase your comfort and convenience, and your passenger’s as well. We recommend that you take time to check the following items and make any desired adjustments before each ride: Suspension The rear suspension spring pre-load (page...

  • Page 69: Windscreen Height Adjustment

    Comfort & Convenience Adjustment Windscreen Height Adjustment The windscreen adjuster has 6 positions. You can adjust your windscreen height slightly higher or lower. If possible, we recommend you adjust your windscreen height to below eye level for better visibility. To Adjust Windscreen Height FRONT upper edge SECURE...

  • Page 70: Windscreen Ventilation Louver

    Comfort & Convenience Adjustment Windscreen Ventilation Louver windscreen ventilation louver lever You can adjust the windscreen ventilation louver with the lever to control and direct the flow of fresh air. Before Riding...

  • Page 71: Side Ventilation Louvers

    Comfort & Convenience Adjustment Side Ventilation Louvers LEFT SIDE RIGHT SIDE You can adjust the side ventilation louvers to direct the flow of air. Before Riding...

  • Page 72: Foot Warmer Ventilation Louvers

    Comfort & Convenience Adjustment Foot Warmer Ventilation Louvers (Models equipped with Comfort Package) LEFT UPPER You can adjust the foot warmer ventilation louvers with the lever to control and direct the flow of warm air. Before Riding...

  • Page 73: Handgrip Heater

    Comfort & Convenience Adjustment Handgrip Heater (Models equipped with Comfort Package) The handgrip heater warms up the right and left handgrips of the handlebar for comfortable riding on a cold day. The handgrip heater switch is located on the right side of the ignition switch. To operate, adjust the handgrip heater switch with the engine started.

  • Page 74: Seat Heater

    Comfort & Convenience Adjustment Seat Heater (Models equipped with Comfort Package) The seat heater warms up the driver’s seat (and the passenger’s seat) for comfortable riding on a cold day. The front seat heater switch is located on the left side of the ignition switch. The rear seat heater switch is located under the left trunk side pocket.

  • Page 75: Accessories

    Accessories Accessory (ACC) Terminal fuse box accessory (ACC) terminal For your convenience, your motorcycle is equipped with an accessory (ACC) terminal and optional accessory socket. The terminal and socket provide 12V DC power for electrical accessories. When both terminal and socket are being used, the combined power rating of each accessory should be 60 watts (5 amps) or less.
  • Page 76 Before Riding...

  • Page 77: Basic Operation & Riding

    Basic Operation & Riding This section gives basic riding instructions, including how to start and stop your engine, and how to use the throttle, clutch, and brakes. It also provides important information on riding with a passenger or cargo, and operating your cruise control.

  • Page 78: Safe Riding Precautions

    Safe Riding Precautions Before riding your motorcycle for the first time, please review the Motorcycle Saf ety section beginning on page 1, and the Bef ore Riding section beginning on page Even if you have ridden other motorcycles, take time to become familiar with how this motorcycle works and handles.

  • Page 79: Starting & Stopping The Engine

    If the airbag indicator stays on or lights during operation, have your motorcycle inspected as soon as possible by an authorized Honda dealer (models equipped with Airbag). Basic Operation & Riding...

  • Page 80: Starting Procedure

    Starting & Stopping the Engine Starting Procedure This motorcycle has a fuel-injected engine with an automatic fast idle. Follow the procedure indicated below. Any Air Temperature Press the start button with the throttle completely closed. The engine will not start if the throttle is fully open (because the electronic control module cuts off the fuel supply).

  • Page 81: Bank Angle Sensor Ignition Cut-Off System

    Starting & Stopping the Engine Bank Angle Sensor Ignition Cut-off System Your motorcycle’s banking (lean angle) sensor system is designed to automatically stop the engine and fuel pump if the motorcycle is overturned. Before restarting the engine, you must turn the ignition switch to the OFF position and then back to ON.

  • Page 82: Shifting Gears

    Shifting Gears Your motorcycle has five forward gears in a one-down, four-up shift pattern which is coordinated with a hydraulically actuated clutch system. Learning when to shift gears comes with experience. Keep the following tips in mind: As a general rule, shift while moving in a straight line. Close the throttle and pull the clutch lever in completely before shifting.

  • Page 83: While You Are Riding

    Shifting Gears Recommended Shift Points Ride in the highest gear that lets the engine run and accelerate smoothly. This will give you good fuel economy and effective emissions control. When changing gears under normal conditions, use these recommended shift points: Shif ting Up: From 1st to 2nd: 12 mph (20 km/h)

  • Page 84: Riding In Reverse

    Riding in Reverse Your motorcycle’s reverse system allows you to back out of a parking position at slow speed. Make sure there are no obstacles or people in the area. Avoid steep or uneven surfaces. Carrying a passenger while reversing is not recommended because it makes balance and control more difficult to maintain.
  • Page 85 Riding in Reverse Release the start/reverse button, and the motorcycle will stop. After your motorcycle is stopped, push the RVS switch to OFF. Make sure the reverse gear indicator goes off and the neutral indicator comes on. To avoid damaging the reverse system, do not engage or disengage reverse when the motorcycle is moving.

  • Page 86: Braking

    Braking Your motorcycle is equipped with a Linked Braking System. Operating the front brake lever applies the front brake and a portion of the rear brake. Operating the rear brake pedal applies the rear brake and a portion of the front brake. For full braking effectiveness, use both the lever and pedal simultaneously, as you would with a conventional motorcycle braking system.
  • Page 87 Braking Riding with your foot resting on the brake pedal or your hand on the brake lever may actuate the brakelight, giving a false indication to other drivers. It may also overheat the brakes, reducing effectiveness. (Models not equipped with ABS) As with a conventional motorcycle braking system, excessively hard application of the brake controls may cause wheel lock, reducing control of the motorcycle.

  • Page 88: Anti-Lock Brake System (Abs)

    Braking Anti-Lock Brake System (ABS) (Models equipped with ABS) This model is also equipped with an Anti-lock Brake System (ABS) designed to help prevent wheel lock up during hard braking on uneven or other poor surfaces while running straight. Although the wheel may not lock up if you are braking too hard in a turn the motorcycle can still lose traction, causing a loss of control.

  • Page 89: Abs Indicator Light

    Braking It is important to follow the tire recommendations (see page ). The ABS computer works by comparing wheel speed. Non-recommended tires can affect wheel speed and may confuse the ABS computer. ABS does not function at very low speeds (approximately 5 mph (8 km/h) or below).
  • Page 90 ABS is not functioning. However, the Linked Braking System will still provide normal stopping ability, but you should have the ABS system checked by your Honda dealer as soon as possible. The ABS indicator may blink if you place the motorcycle on its center stand and turn the rear wheel.

  • Page 91: Tire Pressure Monitoring System (Tpms)

    Tire Pressure Monitoring System (TPMS) Your motorcycle is equipped with a tire pressure monitoring system (TPMS) that turns on every time you start the engine and it monitors the pressure in your tires while riding. Each tire has its own pressure sensor. If the air pressure of a tire becomes significantly low while riding, the sensor in that tire sends a signal that causes the low tire pressure indicator to turn on.

  • Page 92: Low Tire Pressure Indicator

    If the low tire pressure indicator does not turn off after inflating the tires to the specified values, have your Honda dealer to check the system as soon as possible. Riding on a underinflated tire causes the tire to overheat and can lead to tire failure.

  • Page 93: Tire Pressure Monitoring System (Tpms) Indicator

    If this happens, the system will shut off and no longer monitor tire pressure. Have the system checked by your Honda dealer as soon as possible. Also the TPMS indicator may light for the following reasons: Interference of other electronic devices by using the same radio frequency.

  • Page 94: Changing A Tire With Tpms

    If you have a tire prof essionally repaired at a non- Honda f acility, we recommend that you have the work checked by your Honda dealer. TPMS wheels require special handling when changing the tire. Failure to f ollow the proper tire replacement procedure can result in damage to the TPMS sensor.

  • Page 95: Parking

    Parking Look for a level parking area. If you can’t park on a paved surface, make sure the ground surface is firm. If you must park on a hill, leave the transmission in gear and position the rear tire against the curb at a 45 degree angle. Make sure flammable materials such as dry grass or leaves do not come in contact with the exhaust system when parking your motorcycle.
  • Page 96 Parking Use the helmet holder(s) to secure your helmet(s) with your motorcycle: Open the travel trunk (page Turn the knob in the trunk to unlock the helmet holders. Hang your helmet(s), using the D-ring on the helmet strap. Push the holder in to lock it. knobs LOCK OPEN...

  • Page 97: Theft-Prevention Tips

    Parking Theft-prevention Tips Park your motorcycle in a locked garage whenever possible. If a garage isn’t available, park in a concealed area or in a well-lit area with enough pedestrian traffic to discourage a thief. Always take the ignition key with you. Always use the steering lock (page ), even if you’re parking for just a minute or two.

  • Page 98: Riding With A Passenger Or Cargo

    Riding with a Passenger or Cargo Your motorcycle is designed to carry you and one passenger. Whenever you add a passenger or cargo, you must be careful not to exceed the total load limits for this vehicle ( Load Limits, page ).

  • Page 99: Riding With Cruise Control

    Riding with Cruise Control Cruise Control The cruise control system allows you to maintain a steady speed between 30 100 mph (48 161 km/h). When cruise control is on, your speed will still vary slightly, particularly going up and down hills. Cruise control is intended for use only on straight, uncongested highways.

  • Page 100: To Set Cruise Control

    Riding with Cruise Control RIGHT HANDLEBAR RESUME/ACCEL switch CRUISE ON indicator CRUISE SET SET/DECEL switch indicator CRUISE CONTROL master switch To Set Cruise Control Make sure you are in 4th gear or OD (5th gear), and that your speed is between 30 and 100 mph (48 and 161 km/h).

  • Page 101: To Cancel Cruise Control

    Riding with Cruise Control To Manually Increase the Set Speed Use the throttle to accelerate until you reach the desired speed. Push and release the SET/DECEL switch. To Manually Increase Vehicle Speed Use the throttle in the normal manner to accelerate. To return to the set speed, close the throttle and coast without applying the brakes.

  • Page 102: Riding In Bad Weather

    Riding in Bad Weather If you decide to ride your motorcycle in the rain, fog, or other bad-weather conditions, ride carefully. Wet road surfaces reduce traction, especially in turns, and increase stopping distances when you brake. If the weather turns bad while you are riding, take extra care and do not use cruise control.

  • Page 103: Audio Systems

    Audio Systems This section gives information about the controls and displays that make up your audio system. All essential controls are within easy reach. As required by the FCC (USA only): This device complies with Part 15 of the FCC Rules for Radio Receiver. Operation is subject to the condition that this device may not cause harmful interference.
  • Page 104 Audio Systems XM Radio (USA only) ..................121 Receiving Satellite Radio Service ............... Operating the XM Radio ................XM Radio Display Messages ..............Select Channel ....................Preset Channel ....................Weather Information ..................Weather Band (WB) ..................Auxiliary Function ................... Auxiliary (AUX) Input ................

  • Page 105: Audio Systems

    Audio Systems MODE Knob/Button Function (Models equipped with (Models not equipped When When Navigation System) with Navigation System) audio is audio is INITIAL INITIAL DISPLAY DISPLAY ‘‘BASS’’ ‘‘Bass’’ ‘‘TREBLE’’ ‘‘Treble’’ ‘‘FADER’’ ‘‘Fader’’ ‘‘AMB’’ ‘‘AMB’’ ‘‘BEEP’’ ‘‘Beep’’ :Push the MODE Knob/Button Audio Systems...

  • Page 106: Volume Knob/Button Function

    Audio Systems VOLUME Knob/Button Function (Models not equipped (Models equipped with with Navigation System) Navigation System) ‘‘AUDIO’’ ‘‘Audio’’ ‘‘Intercom’’ ‘‘INTERCOM VOL’’ ‘‘INTERCOM ‘‘Intercom Mute’’ MUTE’’ ‘‘Auto VOL SPK’’ ‘‘AUTO VOL SPK’’ ‘‘Auto VOL HS’’ ‘‘AUTO VOL HS’’ ‘‘NAVI VOL’’ :Push the VOLUME Knob/Button :When the speaker :When INT.

  • Page 107: Display Locations

    Audio Systems Display Locations (Models not equipped with Navigation System) ambience indicator mute indicator auto volume indicator clock display auto select indicator audio mode radio preset indicator channel intercom mode indicator radio station radio band stereo indicator (Models equipped with Navigation System) For USA auto volume indicator ambience indicator...
  • Page 108 Audio Systems (Models equipped with Navigation System) Press the DISP button to toggle between the Multi Information Display (time, audio, odo and trip), a Navi full screen map with the time, and a split screen with the Multi information condensed in a bar below the map. For USA For Canada DISP button...

  • Page 109: Controls Locations

    AM button WB button CD button (for accessory CD changer) The CB and CD levers and buttons function when the Honda accessory CB radio and/or CD changer are installed. For CB and CD operating instructions, refer to the accessory manuals.
  • Page 110 XM button For Canada only CD button (for accessory CD changer) The CB and CD levers and buttons function when the Honda accessory CB radio and/or CD changer are installed. For CB and CD operating instructions, refer to the accessory manuals.

  • Page 111: Audio Component Locations

    Audio Systems Audio Component Locations radio antenna tweeters rear speakers (models equipped with (models equipped with Premium Audio) Premium Audio) front speaker audio system controls audio system controls front headset terminal front speaker external amplifier (models equipped with Premium Audio) rear headset terminal Audio Systems...

  • Page 112: System Control

    Audio Systems System Control To turn the audio system on push the AUDIO button. (Models not equipped with (Models equipped with Navigation System) Navigation System) AUDIO button AUDIO button For USA For Canada To turn the audio system off push and hold the AUDIO button. CB and CD are optional equipment.

  • Page 113: Switch Output

    Audio Systems Switch Output When the audio system is turned on, you can switch its output between Speaker and Headset. (Headset is optional equipment.) Pushing the AUDIO button switches the output. (Models not equipped with (Models equipped with Navigation System) Navigation System) For USA For Canada...

  • Page 114: Volume Control

    Audio Systems VOLUME Control To increase the volume push the VOLUME lever up or turn the VOLUME knob/button clockwise. To decrease the volume push the VOLUME lever down or turn the VOLUME knob/button counterclockwise. To increase or decrease the volume rapidly push the VOLUME lever up or down and hold it down.

  • Page 115: Tone Control

    Audio Systems Tone Control The tone (Bass Treble) is automatically adjusted in accordance with the vehicle speed. Bass: To select the Bass control, push the MODE knob/button until ‘‘BASS’’ (‘‘Bass’’) is displayed (page ). Then, within 5 seconds, change the bass control.
  • Page 116 Audio Systems Treble: To select the Treble control, push the MODE knob/button until ‘‘TREBLE’’ (‘‘Treble’’) is displayed (page ). Then, within 5 seconds, change the treble control. To emphasize treble turn the MODE knob/button clockwise. To reduce treble turn the MODE knob/button counterclockwise. (Treble level ranges from 6 down to (Models not equipped with (Models equipped with...

  • Page 117: Fader Control

    Audio Systems Fader Control To balance the sound between the front and rear speakers push the MODE knob/button until ‘‘FADER’’ (‘‘Fader’’) is displayed (page ). Then, within 5 seconds, change the fader control. (The control range: F (front) and R (rear) each have 9 segments.) (Models equipped with (Models not equipped with...

  • Page 118: Ambience (Amb)

    Audio Systems Ambience (AMB) The ‘‘ambience’’ circuit blends and boosts certain frequencies from both channels, for a ‘‘live performance’’ effect. AMB may be used for stereo programs from the FM radio. However, the ambience circuit may make weak FM stereo signals sound worse. To use the circuit push the MODE knob/button until ‘‘AMB’’...

  • Page 119: Beep Set

    Audio Systems Beep Set To use the circuit push the MODE knob/button until ‘‘BEEP’’ (‘‘Beep’’) is displayed (page ). Then, within 5 seconds, change the beep setting. To change the setting turn the MODE knob/button. (ON (On) or OFF (Off)) (Models equipped with Navigation System) At the same time, the Beep function of the Navigation System is also set.

  • Page 120: Auto Volume Control (Avc)

    Audio Systems Auto Volume Control (AVC) To automatically increase volume as the speed of the motorcycle increases. Push the VOLUME knob/button until ‘‘AUTO VOL SPK’’ (‘‘Auto Speaker Vol’’) is displayed (page ). To select the volume control of headset, push the VOLUME knob/button until ‘‘AUTO VOL HS’’...

  • Page 121: Muting

    Audio Systems Muting To instantly lower the radio’s volume so you may hear surrounding sounds more clearly push the MUTE button. The display will indicate ‘‘MUTE’’. To restore the original volume push the MUTE button again to restore the original volume. LEFT HANDLEBAR MUTE button Audio Systems...

  • Page 122: Am/Fm Radio

    AM/FM Radio Radio Antenna To fold the AM/FM radio antenna, pull up on the knurled coupling. radio antenna Audio Systems...

  • Page 123: Select Band

    AM/FM Radio Select Band (Models not equipped with Navigation System) To change to AM or FM when you are in the radio mode push the AM button, FM1 button or FM2 button. (Models equipped with Navigation System) Push the FM button to switch to FM1/FM2. Push the AM button to switch to AM/WB (USA only).

  • Page 124: Select Station

    AM/FM Radio Select Station To raise the radio frequency push the TUNE/DISC lever up. To lower the radio frequency push the TUNE/DISC lever down. To move up or down the radio frequencies in sequence, move the lever one click at a time. The AM frequency display moves in 10 kHz steps. The FM frequency moves in 0.2 kHz steps.

  • Page 125: Preset Stations

    AM/FM Radio Preset Stations You can store the frequencies of your favorite radio stations in the six preset buttons. Each button will store one frequency on the AM band, and two frequencies on the FM band. (Models not equipped with (Models equipped with Navigation System) Navigation System)

  • Page 126: Auto Select

    AM/FM Radio Auto Select If you are traveling far from home and can no longer receive the stations you preset, you can use the Auto Select feature to find stations in the local area. To activate Auto Select, push the A.SEL button. A.SEL will appear in the display, and the system will go into scan mode for several seconds.

  • Page 127: Xm Radio (Usa Only)

    XM Radio (USA only) (Models equipped with Navigation System) Your motorcycle is capable of receiving XM Satellite Radio anywhere in the United States, except Hawaii and Alaska. XM is a registered trade mark of XM Satellite Radio, Inc. XM Satellite Radio receives signals from two satellites to produce clear, high- quality digital reception.
  • Page 128 XM Radio (USA only) To get your Radio ID number, push the TUNE/DISC lever until CH 0 appears in the display under channel mode (Display channel 0 at only ALL Category search mode) (page ) or choose Menu screen on the Setup/info menu, highlight XM Info and press ENT.
  • Page 129 XM Radio (USA only) The XM satellites are in orbit over the equator; therefore, objects south of the vehicle may cause satellite reception interruptions. To help compensate for this, ground-based repeaters are placed in major metropolitan areas. Satellite signals are more likely to be blocked by tall buildings and mountains the farther north you travel from the equator.

  • Page 130: Operating The Xm Radio

    XM Radio (USA only) Operating the XM Radio To listen to XM satellite radio, turn the ignition switch to the ON or ACCESSORY position, and push the XM button. The last channel you listened to will show in the display. Push the XM button to switch to XM1/XM2.

  • Page 131: Select Channel

    XM Radio (USA only) Select Channel To select channel from XM Channel, push the TUNE/DISC lever. To select channel from XM Category, push and hold the TUNE/DISC lever then select the category while XM Category is displaying. Push the TUNE/DISC lever up or down and continue to hold it down until you see the desired channel.

  • Page 132: Preset Channel

    XM Radio (USA only) Preset Channel You can store the channels of your favorite up to 12 preset channels using the six preset buttons. Each button stores one channel from the XM1 band and one channel from the XM2 band. Push the XM button to select XM1 or XM2.

  • Page 133: Weather Information

    Weather Information Weather Band (WB) (Models not equipped with Navigation System) To listen to the Weather Band push the WB button. To cancel the Weather Band push another band button (AM, FM1 or FM2). To select channels 1 6 push the desired preset button. To select channel 7 push the TUNE/DISC lever up or down until channel 7 is selected.
  • Page 134 Weather Information (Models equipped with Navigation System) For USA To listen to the Weather Band push the AM button to switch AM/WB. To cancel the Weather Band push the AM button again or another band button (FM or XM). For Canada To listen to the Weather Band push the WB button.

  • Page 135: Auxiliary Function

    Auxiliary Function Auxiliary (AUX) Input Use this function to listen to other audio such as a portable CD player: To turn the function on push the AUX button. (AUX appears on the display.) To turn the function off push the AM, FM1, FM2, FM, or WB button. The following functions operate the same as they do with the AM/FM radio: Switch output, Tone control, Fader control, AMB, AVC, BEEP, Muting.

  • Page 136: Input Jack Setup

    Auxiliary Function Input Jack Setup The auxiliary input jack connector is located under the left fairing pocket. To use it: Attach a cloth to the cover and remove the cover with care using a flat-tip screwdriver. Open the left fairing pocket cover and remove the clips and grommet A. Lift out the fairing pocket.
  • Page 137 Auxiliary Function Route the auxiliary input patch cord through the hole in the bottom of the fairing pocket. Install the grommet B to left fairing pocket. Do not pull on the auxiliary cord as the wires could be damaged. auxiliary input patch cord grommet B Some portable audio systems may pick up noise from the ignition.

  • Page 138: Intercom (I-Com) System

    Intercom (I-COM) System System Control Some local governments prohibit the use of a headset by the operator of a motor vehicle. Always obey applicable laws and regulations. The intercom system may be used to communicate with your passenger. (If you want to use this system, you must have headsets.) To turn the system on push the I-COM button.

  • Page 139: Volume Control

    Intercom (I-COM) System VOLUME Control To select the Volume control, push the MODE knob/button until ‘‘INTERCOM VOL’’ (‘‘Intercom’’) is displayed (page ). Then, within 5 seconds, change the volume control. To increase the volume push the VOLUME lever up or turn the VOLUME knob/button clockwise.

  • Page 140: Intercom Muting

    Intercom (I-COM) System Intercom Muting The intercom mute system automatically lowers (does not silence) the music/ program volume when you speak through the intercom. The sensitivity of the intercom microphone to your voice or ambient sound sets the level at which the intercom system mutes the music/program volume. To adjust this system push the VOLUME knob/button until ‘‘INTERCOM MUTE’’...

  • Page 141: Navigation System

    Navigation System System Control To turn the Navi voice on with the Navigation System turned off push the NAVI button. To turn the Navi voice off with the Navigation System turned on push and hold the NAVI button. For USA NAVI button For Canada Switch Output...

  • Page 142: Navi Volume Control

    Navigation System Navi Volume Control To select the volume control, push the VOLUME knob/button until ‘‘NAVI VOL’’ is displayed (page ). Then, within the 5 seconds, change the navigation volume control. To make the Navi volume louder than the audio volume push the VOLUME lever up or turn the VOLUME knob/button clockwise.

  • Page 143: Servicing Your Honda

    You’ll also find important safety precautions, information on fuels and oils, and tips for keeping your Honda looking great. For information about the exhaust emission and noise emission requirements of the U.S.

  • Page 144: Service Preparations Maintenance Component Locations

    Servicing Your Honda Service Preparations Maintenance Component Locations ..............Tool Kit ......................Owner’s Manual Storage ................. Cover Removal ....................Clip Removal ....................Service Procedures Fluids & Filters Fuel ........................Engine Oil & Filter ................... Coolant ......................Crankcase Breather ..................Final Drive Oil ....................
  • Page 145 Servicing Your Honda The following table summarizes the three types of inspections and servicing recommendations for your motorcycle. Both the pre-ride inspection and the scheduled maintenance at the recommended intervals are necessary to assure safe and dependable performance. The periodic checks provide additional confidence in your motorcycle’s performance.

  • Page 146: The Importance Of Maintenance

    If your motorcycle overturns or is involved in a crash, be sure your Honda dealer inspects all major parts, even if you are able to make some of the repairs yourself. Servicing Your Honda...

  • Page 147: Maintenance Safety

    Other tasks that are more difficult and require special tools are best performed by professionals. Wheel removal should normally be handled only by a Honda technician or other qualified mechanic. Instructions are included in this manual only to assist in emergency service.

  • Page 148: Important Safety Precautions

    Use only non-flammable solvent, not gasoline, to clean parts. Keep cigarettes, sparks, and flames away from all fuel-related parts. Remember that your Honda dealer knows your motorcycle best and is fully equipped to maintain and repair it. To ensure the best quality and reliability, use only new Honda Genuine Parts or their equivalents for repair and replacement.

  • Page 149: Periodic Maintenance

    Lights Make sure the headlight, brakelight, taillight, and turn signals are working properly. Fuses Make sure you have a full supply of spare fuses. Nuts & Bolts Check the major fasteners and tighten as needed. Servicing Your Honda...

  • Page 150: Maintenance Schedule

    The service intervals in this Maintenance Schedule are based on average riding conditions. Some items will need more frequent service if you ride in unusually wet or dusty areas or at full throttle. Consult your Honda dealer for recommendations applicable to your individual needs and use.
  • Page 151 Honda dealer knows your motorcycle best and is fully equipped to maintain and repair it. If you decide to do your own maintenance, use only Honda Genuine Parts or their equivalents for repair or replacement to ensure the best quality and reliability.
  • Page 152 COOLING SYSTEM SECONDARY AIR SUPPLY SYSTEM EVAPORATIVE EMISSION CONTROL SYSTEM Should be serviced by your Honda dealer, unless you have the proper tools and service data and are mechanically qualified. Refer to the official Honda Service Manual (page Servicing Your Honda...
  • Page 153 STEERING HEAD BEARINGS Should be serviced by your Honda dealer, unless you have the proper tools and service data and are mechanically qualified. Refer to the official Honda Service Manual (page In the interest of safety, we recommend these items be serviced only by your Honda dealer.

  • Page 154: Maintenance Record

    Miles Odometer Date Performed By: Notes (km) 4,000 (6,400) 8,000 (12,000) 12,000 (19,200) 16,000 (25,600) 20,000 (32,000) 24,000 (38,400) 28,000 (44,800) 32,000 (51,200) 36,000 (57,600) 40,000 (64,000) 44,000 (70,400) 48,000 (76,800) 52,000 (83,200) Servicing Your Honda...

  • Page 155: Maintenance Component Locations

    Maintenance Component Locations clutch fluid reservoir front brake fluid reservoir clutch lever front brake lever throttle grip fuel fill cap rear suspension spring pre-load adjustment switch Servicing Your Honda...
  • Page 156 Maintenance Component Locations rear brake fluid reservoir front brake caliper spark plugs final drive gear oil drain bolt final drive gear oil filler cap rear brake pedal rear brake caliper engine oil filler cap/dipstick Servicing Your Honda...
  • Page 157 Maintenance Component Locations owner’s manual tool kit coolant reserve tank cap front brake caliper fuse box main fuse (A, B) spark plugs battery engine oil filter engine oil drain bolt crankcase breather tube Servicing Your Honda...

  • Page 158: Tool Kit

    Tool Kit The tool kit is located in the left saddlebag (page An optional, larger tool kit may be available. Check with your Honda dealer’s parts department. LEFT SIDE tool band left saddlebag tool kit Servicing Your Honda...

  • Page 159: Owner's Manual Storage

    Store your Navigation System Manual with your owner’s manual. For models equipped with Airbag: Store your Owner’s Manual Airbag Supplement and Navigation System Manual with your owner’s manual. Be careful not to flood this area when washing your motorcycle. LEFT SIDE left saddlebag owner’s manual Servicing Your Honda...

  • Page 160: Cover Removal

    Cover Removal Refer to Saf ety Precautions on page Left side shown; right side similar side cover engine side cover cylinder head side cover front lower cover Servicing Your Honda...
  • Page 161 Insert the top edge of the side cover under the seat. Position the side cover so the prongs on the inside of the cover are lined up above their securing grommets. Push the cover in place. LEFT SIDE grommets side cover prongs Servicing Your Honda...
  • Page 162 Carefully slide the engine side cover to the rear until the hook is clear of the tab in the hole of the engine side cover. Installation Installation can be done in the reverse order of removal. LEFT SIDE grommet engine side cover prong Servicing Your Honda...
  • Page 163 The left cylinder head side cover must be removed for crankcase breather maintenance. Removal Remove the rubber plugs. Remove the bolts. Installation Installation can be done in the reverse order of removal. LEFT SIDE cylinder head side cover bolt rubber plug Servicing Your Honda...
  • Page 164 The front lower cover must be removed for engine oil maintenance. Removal Remove the clips. Remove the bolts. Installation Installation can be done in the reverse order of removal. FRONT clip bolt front lower cover Servicing Your Honda...

  • Page 165: Clip Removal

    Press down on the center pin to release the lock. Pull the clip out of the hole. Installation Push the bottom of the pin. Insert the clip into the hole. Lightly press down on the center pin to lock the clip. Servicing Your Honda...

  • Page 166: Fuel

    If pinging or spark knock occurs at a steady engine speed under normal load, change brands of gasoline. If pinging or spark knock persists, consult your Honda dealer. Servicing Your Honda...

  • Page 167: Fuel Capacity

    Insert the ignition key in the fuel fill compartment and turn it clockwise. Open the fuel fill compartment. Turn the fuel fill cap counterclockwise and remove it. (cont’d) Servicing Your Honda...
  • Page 168 Handle fuel only outdoors. Wipe up spills immediately. After refueling, be sure to tighten the fuel fill cap firmly by turning it clockwise until it clicks. Close the fuel fill compartment. Remove the key from the fuel fill compartment. Servicing Your Honda...

  • Page 169: Engine Oil & Filter

    Change the engine oil as specified in the maintenance schedule on page When running in very dusty conditions, oil changes should be performed more frequently than specified in the maintenance schedule. Servicing Your Honda...
  • Page 170 SAE 10W-30 JASO T 903 standard suggested oil Pro Honda GN4 4-stroke oil (USA & Canada), or Honda 4-stroke oil (Canada only), or an equivalent motorcycle oil. Suggested oils are equal in performance to SJ oils that are not labeled as energy conserving on the circular API service label.
  • Page 171 There are two classes: MA and MB. Oil conforming to the standard is labeled on the oil container. For example, the following label shows the MA classification. code number of the sales company of the oil oil classification Servicing Your Honda...
  • Page 172 If the oil is below or near the lower level mark add the recommended oil until it reaches the upper level mark. (Do not overfill.) Reinstall the oil filler cap/dipstick. Reinstall the right engine side cover. Check for oil leaks. Servicing Your Honda...
  • Page 173 Your motorcycle’s oil filter has very specific performance requirements. Use a new Honda Genuine oil filter or a filter of equal quality specified for your model. Using the wrong oil f ilter may result in leaks or engine damage.
  • Page 174 Check the condition of the sealing washer on the engine oil drain bolt. Replace the washer every other time the oil is changed. Install the engine oil drain bolt and tighten it to the specified torque: 25 lbf·ft (34 N·m , 3.5 kgf·m) Servicing Your Honda...
  • Page 175 Check that the oil level is at upper level mark on the dipstick (page Check that there are no oil leaks. If a torque wrench is not used for installation, see your Honda dealer as soon as possible to verify proper assembly.

  • Page 176: Coolant

    Maintaining the coolant will allow the cooling system to work properly and prevent freezing, overheating, and corrosion. Coolant Recommendation Use Pro Honda HP coolant or an equivalent high quality ethylene glycol antifreeze containing corrosion protection inhibitors specifically recommended for use in aluminum engines. Check the antifreeze container label.
  • Page 177 If the reserve tank is empty, or if coolant loss is excessive, check for leaks and see your Honda dealer for repair. Add coolant to the reserve tank as required to bring the coolant level to the upper level mark.

  • Page 178: Coolant Replacement

    Refer to Saf ety Precautions on page Coolant should be replaced by your Honda dealer, unless you have the proper tools and service data and are mechanically qualified. Refer to the official Honda Service Manual (page Removing the radiator cap while...

  • Page 179: Crankcase Breather

    Place a drain pan under the crankcase breather tube plug. Remove the left cylinder head side cover (page Remove the plug to drain the deposits in the tube. Reinstall the crankcase breather tube plug. Reinstall the left cylinder head side cover. Servicing Your Honda...

  • Page 180: Final Drive Oil

    Check the oil level. It should be flush with the lower edge of the oil filler hole. If the level is low, check for oil leaks. Add the recommended oil through the oil filler hole until it reaches the lower edge of the opening. Install the oil filler cap. Servicing Your Honda...
  • Page 181 Fill the final drive with the recommended oil: 4.1 US oz (120 cm ) Make sure the final drive oil level is at the lower edge of the oil filler inspection hole. Install the oil filler cap. Servicing Your Honda...

  • Page 182: Clutch System

    If the motorcycle creeps or stalls when shifted into gear, or if the clutch slips, causing acceleration to lag behind engine speed, there is probably air in the clutch system. See your Honda dealer to have the air bled out of the system. Clutch Lever Adjustment...
  • Page 183 LEFT HANDLEBAR LOWER level mark Check that the fluid level is above the LOWER level mark. If the fluid level is below the LOWER level mark, it indicates fluid leakage. See your Honda dealer for repair. Other Inspections Make sure there are no fluid leaks.

  • Page 184: Spark Plugs

    Disconnect the spark plug caps. Take care to avoid damaging the spark plug wire when disconnecting the caps. Using a spark plug wrench provided in the tool kit, remove the spark plugs. spark plug wrench spark plug cap Servicing Your Honda...
  • Page 185 If a plug is too tight, the threads may be damaged. Reinstall the spark plug caps. Take care to avoid pinching any cables or wires. Reinstall the left and right cylinder head side covers. side electrode spark plug gap Servicing Your Honda...

  • Page 186: Suspension

    Do not attempt to disassemble, service, or dispose of the damper; see your Honda dealer. The instructions found in this owner’s manual are limited to adjustments of the shock assembly only. Rear Suspension Spring Pre-load Adjustment Rear suspension spring pre-load can be easily increased or decreased using the rear suspension spring pre-load adjustment switch on the left fairing panel.
  • Page 187 To increase (HIGH) (Models not equipped with (Models equipped with Navigation System) Navigation System) For USA For Canada To decrease (LOW) (Models not equipped with (Models equipped with Navigation System) Navigation System) For USA For Canada Servicing Your Honda...
  • Page 188 Called (Models not equipped with Navigation System) (Models equipped with Navigation System) Pushing the rear suspension spring pre-load adjustment switch or the MEMO (1 or 2) button while selecting a memorized position will cancel the calling procedure. Servicing Your Honda...
  • Page 189 All stored pre-load positions will be lost if your motorcycle’s battery goes low (or dead) or is disconnected. If ‘‘SUS ADJ ERROR’’ blinks on the display, contact your Honda dealer. (Models not equipped with (Models equipped with...

  • Page 190: Brakes

    ). Worn pads should be replaced. If the pads are not worn beyond the recommended limit, there is probably air in the brake system. See your Honda dealer to have the air bled from the system. Front Brake Lever Adjustment...

  • Page 191: Fluid Level Inspection

    Honda DOT 4 Brake Fluid brake fluid The recommended brake fluid is Honda DOT 4 Brake Fluid, or any brake fluid of equal quality and performance. Use fresh brake fluid from a sealed container. Be sure to read the label before opening the sealed container. An opened container may be contaminated or may have absorbed moisture from the air.
  • Page 192 Worn pads should be replaced. If the pads are not worn beyond the recommended limit, have your brake system inspected for leaks. Other Inspections Make sure there are no fluid leaks. Check for deterioration or cracks in the hoses and fittings. Servicing Your Honda...

  • Page 193: Brake Pad Wear

    Always inspect both pads in both the right and left front brake calipers. Check the grooves in each pad. If either pad is worn to the bottom of the grooves, replace both pads as a set. See your Honda dealer for this service. Rear Brake...
  • Page 194 Move the left caliper assembly upward while slowly rotating the rear wheel. The brake system is normal if the rear wheel stops. If the rear wheel does not stop, see your Honda dealer. LEFT FRONT brake caliper...

  • Page 195: Tires

    The following pages give detailed information on how and when to check your air pressure, how to inspect your tires for wear and damage, and our recommendations for tire repair and replacement. Servicing Your Honda...
  • Page 196 If you let air out of warm tires to match the recommended cold pressures, the tires will be underinflated. The recommended ‘‘cold’’ tire pressures are: 36 psi (250 kPa , 2.50 kgf/cm ) front 41 psi (280 kPa , 2.80 kgf/cm ) rear Servicing Your Honda...
  • Page 197 For the best performance, you should replace a tire before the tread depth at the center reaches the following limits: 0.06 in (1.5 mm) front 0.08 in (2.0 mm) rear If the wear indicators are visible, replace the tire immediately as it is no longer safe. Servicing Your Honda...
  • Page 198 TIN is located on the sidewall of the tire. 22 07 This indicates that the tire meets all requirements of the U.S. Department of Transportation. Factory code Tire type code 22 07 Date of manufacture Year Week TIRE LABELING EXAMPLE (1) tire identification number (TIN) Servicing Your Honda...

  • Page 199: Tire Repair

    If you have a tire prof essionally repaired at a non- Honda f acility, we recommend that you have the work checked by your Honda dealer. TPMS wheels require special handling when changing the tire. Failure to f ollow the proper tire replacement procedure can result in damage to the TPMS sensor.

  • Page 200: Tire Replacement

    If you have a tire professionally repaired at a non-Honda facility, we recommend that you have the work checked by your Honda dealer.
  • Page 201 Whenever you replace a tire, remember: Have the wheel balanced after the tire is installed. Have the tire replaced by your Honda dealer. Important Safety Reminders Do not install a tube inside a tubeless tire on this motorcycle. Excessive heat build-up can cause the tube to burst.

  • Page 202: Side Stand

    Pull the clutch lever in. Shift the transmission into gear. Lower the side stand all the way. The engine should stop as you lower the side stand. If the engine doesn’t stop, see your Honda dealer for service. Servicing Your Honda...

  • Page 203: Battery

    If you plan to store your motorcycle, see Battery Storage, page If your battery seems weak and/or is leaking electrolyte (causing slow starting or other electrical problems), see your Honda dealer. WARNING: Battery posts, terminals and related accessories contain lead and lead compounds.

  • Page 204: Battery Storage

    A spark or flame can cause the battery to explode with enough force to kill or seriously hurt you. Wear protective clothing and a face shield, or have a skilled mechanic do the battery maintenance. Servicing Your Honda...
  • Page 205 Installation Reinstall in the reverse order of removal. Be sure to connect the positive ( ) terminal first, then the negative ( ) terminal. Check all bolts and other fasteners are secure. Servicing Your Honda...

  • Page 206: Battery Charging

    However, do not intentionally leave the charger connected longer than the time period recommended in the charger’s instructions. Avoid using an automotive-type battery charger. An automotive charger can overheat a motorcycle battery and cause permanent damage. ‘‘trickle’’ charger Servicing Your Honda...

  • Page 207: Appearance Care

    Appearance Care Frequent cleaning and polishing will keep your Honda looking newer longer. Frequent cleaning also identifies you as an owner who values your motorcycle. A clean motorcycle is also easier to inspect and service. General Recommendations Refer to Saf ety Precautions...
  • Page 208 Start the engine and let it idle for several minutes. The engine heat will help dry moist areas. As a precaution, ride your motorcycle at a slow speed and apply the brakes several times. This will help dry the brakes and restore normal braking performance. Servicing Your Honda...
  • Page 209 To avoid possible scratching or other damage, use only water and a sof t cloth or sponge to clean the display. Take care to keep battery electrolyte, brake fluid, or other chemical solvents off the display. They will damage the display. Servicing Your Honda...
  • Page 210 Brake dust. If necessary, rub with a sponge. Rinse and dry. Apply a spray cleaner/polish and wipe with a non-abrasive cloth. Dull, corroded chrome Apply a high quality chrome/aluminum or aluminum. polish and wipe with a non-abrasive cloth. Servicing Your Honda...
  • Page 211 After you finish cleaning the wheels, it’s important to check for and remove any cleaner or polish residue found on the brake discs or pads. Use Honda Contact/ Brake Cleaner or an equivalent brake degreasing agent. Clean the Matte Painted Surface...
  • Page 212 Apply the polish or wax according to the instructions on the container. If a surface on your motorcycle is chipped or scratched, your Honda dealer has touch-up paint to match your motorcycle’s color. Be sure to use your motorcycle’s color code (page...

  • Page 213: Tips

    Tips Here’s a few helpful tips on how to store and transport your Honda, and how to be an environmentally responsible motorcycle owner. Storing Your Honda ..................Transporting Your Motorcycle ................ You & the Environment ................... Tips...

  • Page 214: Storing Your Honda

    For more information about storage, refer to the Honda Motorcycle Winter Storage Guide, available from your Honda dealer (USA only). We suggest you perform the following procedures to keep your motorcycle in top condition. These storage procedures will reduce the deterioration that can occur during storage.

  • Page 215: Removal From Storage

    If your motorcycle has been stored for more than four months –– change the engine oil (page If your motorcycle has been stored for more than two months –– ask your Honda dealer to drain and replace the fuel. Charge the battery (page ) as required. Install the battery.

  • Page 216: Transporting Your Motorcycle

    Transporting Your Motorcycle If your motorcycle needs to be transported, it should be carried on a motorcycle trailer, or a truck or trailer with a flatbed area. Do not tow your motorcycle, as towing can seriously damage the transmission. When contacting a towing or transporting service, be sure to ask if they have a flatbed area, a loading ramp or power ramp to safely lift the motorcycle, and motorcycle tie-down straps.

  • Page 217: You & The Environment

    You & the Environment Owning and riding a motorcycle can be enjoyable, but you must do your part to protect nature. Following are tips on how you can be an environmentally responsible motorcycle owner. Choose Sensible Cleaners. Use a biodegradable detergent when you wash your motorcycle.
  • Page 218 Tips...

  • Page 219: Taking Care Of The Unexpected

    Taking Care of the Unexpected This section discusses the more common problems that can occur with your motorcycle while you’re riding. It tells you how to evaluate each problem and what actions you can take to try to resume riding. If the problem cannot be safely solved, this section also gives instructions on the proper way to have your motorcycle transported.

  • Page 220: Taking Care Of The Unexpected

    Taking Care of the Unexpected General Guidelines Keeping your motorcycle well-maintained is the best way to reduce the possibility of having a problem on the road. Remember to take along your owner’s manual, the tool kit that came with your motorcycle, and any other items (such as tire repair supplies and additional tools) that might help you solve a problem on your own.

  • Page 221: If Your Engine Quits Or Won't Start

    Tighten the battery lead. low (or dead) battery Charge the battery (page ). If charging doesn’t help, see your Honda dealer. faulty starter motor If all possible causes are negative, the starter motor may be faulty. See your Honda dealer.
  • Page 222 Honda dealer. loose battery cables Tighten the battery terminal bolts. weak battery Charge the battery (page ). If charging doesn’t help, see your Honda dealer. SYMPTOM: Engine starts, but stalls as you shift into gear. POSSIBLE CAUSE WHAT TO DO side stand down Raise the side stand.
  • Page 223 If applicable, switch to the recommended load octane gasoline (page ) or change your brand of gasoline. If the problem persists, see your Honda dealer. afterfires (backfires) May damage catalytic converters. See your Honda dealer. pre-ignition (runs on after May damage catalytic converters.

  • Page 224: If You Have A Flat Tire

    Honda dealer or other qualified service facility. Even with a simple puncture, this may be the safest and least troublesome solution.
  • Page 225 If you have a tire prof essionally repaired at a non- Honda f acility, we recommend that you have the work checked by your Honda dealer. TPMS wheels require special handling when changing the tire. Failure to f ollow the proper tire replacement procedure can result in damage to the TPMS sensor.
  • Page 226 Refer to Saf ety Precautions on page We recommend wheel removal be done only by your Honda dealer or another qualified mechanic. Do not attempt to remove the wheel on your own. Wheel removal requires mechanical skill and professional tools.
  • Page 227 If You Have a Flat Tire For related torque specifications, see page . Cover both sides of the front wheel with protective tape or an equivalent. The numbers indicate the disassembly sequence. protective tape Taking Care of the Unexpected...
  • Page 228 If You Have a Flat Tire (Models equipped with ABS) Taking Care of the Unexpected...
  • Page 229 If You Have a Flat Tire Installation Reassemble the removed parts in the reverse order of removal. Position the wheel between the fork legs and insert the front axle shaft from the left side, through the left fork leg and wheel hub. Align the index line of the front axle shaft with the recessed surface of the fork leg.
  • Page 230 If You Have a Flat Tire Failure to provide adequate disc-to-caliper holder clearance may damage the brake discs and impair braking efficiency. feeler gauge Taking Care of the Unexpected...
  • Page 231 Verify proper brake operation before riding. Remove the protective tapes from the front wheel. If a torque wrench was not used for installation, see your Honda dealer as soon as possible to verify proper assembly. Improper assembly may lead to loss of braking capability.
  • Page 232 Refer to Saf ety Precautions on page We recommend wheel removal be done only by your Honda dealer or another qualified mechanic. Do not attempt to remove the wheel on your own. Wheel removal requires mechanical skill and professional tools.
  • Page 233 If You Have a Flat Tire (Models equipped with Premium Audio) Taking Care of the Unexpected...
  • Page 234 Operate the brake pedal and check the brake operation. Inspect the brake system (page If a torque wrench was not used for installation, see your Honda dealer as soon as possible to verify proper assembly. Improper assembly may lead to loss of braking capability.

  • Page 235: If Your Engine Overheats

    If Your Engine Overheats Normally, the needle on your temperature gauge will rise to a point about midway between C (cold) and H (hot) and then level off. Hot weather may cause the needle to rise higher than normal. So will temporary stress such as climbing a hill.
  • Page 236 If the needle doesn’t drop, do not ride. The engine needs repair. Transport your motorcycle to a Honda dealer (page If the temperature drops to normal, check the coolant level. If it has gone down, add more coolant.

  • Page 237: If The Low Oil Pressure Indicator Lights

    Check for a possible leak. If the indicator goes off and there is no leak –– resume riding. If there is a leak –– do not ride the motorcycle until the leak is repaired by a Honda dealer. Taking Care of the Unexpected...

  • Page 238: If A Fuse Blows

    If a Fuse Blows All of the electrical circuits on your motorcycle have fuses to protect them from damage caused by excess current flow (short circuit or overload). If something electrical on your motorcycle stops working, the first thing you should check for is a blown fuse.
  • Page 239 Main Fuse Access: Check the two main fuses (A & B) to see if they are blown. To replace main fuses (A & B), see your Honda dealer for this service. Speed Limiter Fuse Access: Check the speed limiter (reverse system) fuse to see if it’s blown, see your Honda dealer for this service.
  • Page 240 If the replacement fuse of the same rating burns out in a short time, there is probably a serious electrical problem on your motorcycle. Leave the blown fuse in that circuit and have your motorcycle checked by your Honda dealer. fuse remover...

  • Page 241: If You Crash

    Sometimes, crash damage is hidden or not immediately apparent, so you should have your motorcycle thoroughly checked at a qualified service facility as soon as possible. Also, be sure to have your Honda dealer check the frame and suspension after any serious crash.

  • Page 242: If You Lose Your Key

    If you don’t know your key number, call the dealer where you purchased your Honda. They may have it listed in their records. If they don’t, transport your motorcycle to them or the nearest Honda dealer. The dealer will probably have to remove the ignition switch assembly to find the key number so they can make a key for you.

  • Page 243: If Your Battery Is Low (Or Dead)

    The greater amperage of an automobile battery when the car engine is running can damage your motorcycle’s electrical system. Bump starting is also not recommended. If you can’t charge the battery or it appears unable to hold a charge, contact your Honda dealer. Taking Care of the Unexpected...
  • Page 244 Taking Care of the Unexpected...

  • Page 245: Technical Information

    Technical Information This section contains dimensions, capacities, and other technical data, plus information on government requirements and how to break-in your motorcycle. Vehicle Identification ..................Specifications ....................Break-in Guidelines ..................Tire Pressure Monitoring System (TPMS) Explanation ......... Emission Control Systems ................

  • Page 246: Vehicle Identification

    Vehicle Identification Serial Numbers The VIN and engine serial number are required when you register your motorcycle. They may also be required when ordering replacement parts. You may record these numbers in the Quick Reference section at the rear of this manual.
  • Page 247 Vehicle Identification Color Label & Code The color label is attached inside the fuel filler compartment lid. The color code is helpful when ordering replacement parts. You may record the color and code in the Quick Reference section at the rear of this manual. color label (models not equipped with Airbag) color label...

  • Page 248: Specifications

    API service label, SAE 10W-30, JASO T 903 standard MA, Pro Honda GN4 4-stroke oil (USA & Canada) or Honda 4-stroke oil (Canada only), or an equivalent motorcycle oil Technical Information...
  • Page 249 4.1 US oz (120 cm ) cooling system, Pro Honda HP Coolant or an equivalent high recommendation quality ethylene glycol antifreeze containing corrosion protection inhibitors specifically recommended for use in aluminum engines cooling system, 4.07 US qt (3.85 )
  • Page 250 Specifications Engine Specifications displacement 111.8 cu-in (1,832 cm ) bore & stroke 2.91 2.80 in (74.0 mm 71.0 mm) compression ratio 9.8 : 1 spark plug BKR6E-11 (NGK) (standard) K20PR-U11 (DENSO) spark plug BKR5E-11 (NGK) (cold climate) K16PR-U11 (DENSO) spark plug (high BKR7E-11 (NGK) speed riding) K22PR-U11 (DENSO)
  • Page 251 Specifications Chassis & Suspension caster 29°15’ trail 4.3 in (109 mm) tire size, front 130/70R18M/C 63H DUNLOP D250F BRIDGESTONE G709 RADIAL tire size, rear 180/60R16M/C 74H DUNLOP D250 BRIDGESTONE G704 RADIAL radial, tubeless tire type tire pressure, front 36 psi (250 kPa , 2.50 kgf/cm ) (cold) tire pressure, rear 41 psi (280 kPa , 2.80 kgf/cm )
  • Page 252 Specifications Lights headlight 12 V 55 W (high) 12 V 55 W (low) brake/tail light 12 V 21/5 W turn signal lights 12 V 21/5 W (front) 12 V 21 W (rear) license light 12 V 5 W instrument light neutral indicator turn signal indicator high beam indicator...
  • Page 253 Specifications Fuses main A 30 A main B 120 A speed limit fuse 60 A external amplifier 40 A fuse (models equipped with Premium Audio) other fuses 30 A, 20 A, 15 A, 10 A, 5 A Torque Specifications 25 lbf·ft (34 N·m , 3.5 kgf·m) engine oil drain bolt engine oil filter 19 lbf·ft (26 N·m , 2.7 kgf·m)

  • Page 254: Break-In Guidelines

    Break-in Guidelines Help assure your motorcycle’s future reliability and performance by paying extra attention to how you ride during the first 300 miles (500 km). During this period, avoid full-throttle starts and rapid acceleration. Technical Information...

  • Page 255: Tire Pressure Monitoring System (Tpms) Explanation

    Tire Pressure Monitoring System (TPMS) Explanation Both tires should be checked monthly when cold, and inflated to the inflation pressure recommended by the vehicle manufacturer on the tire information label. (If your vehicle has different tires than those indicated on the vehicle tire information label, you should determine the proper tire inflation pressure for those tires.) As an added safety feature, your vehicle has been equipped with a tire...
  • Page 256 Tire Pressure Monitoring System (TPMS) Explanation Your vehicle has also been equipped with a TPMS indicator to indicate when the system is not operating properly. The TPMS indicator displays the symbol ‘‘TPMS’’ when illuminated. When the TPMS indicator is illuminated, the system may not be able to detect or signal low tire pressure as intended.

  • Page 257: Emission Control Systems

    Warranty Compliance Compliance with the terms of the Distributor’s Warranties for Honda Motorcycle Emission Control Systems is necessary in order to keep the emissions system warranty in effect. (USA only)
  • Page 258 Carbon monoxide does not react in the same way, but it is toxic. Honda Motor Co., Ltd. utilizes various systems to reduce carbon monoxide, oxides of nitrogen and hydrocarbons. Exhaust Emission Control System...
  • Page 259 Emission Control Systems Evaporative Emission Control System This motorcycle complies with the requirements of the California Air Resources Board (CARB) evaporative emission regulations. Fuel vapor from the fuel tank is directed into the charcoal canister and air cleaner where it is adsorbed and stored while the engine is stopped.
  • Page 260 Emission Control Systems Problems That May Affect Motorcycle Exhaust Emissions If you are aware of any of the following symptoms, have the vehicle inspected and repaired by your authorized Honda motorcycle dealer. Symptoms: Hard starting or stalling after starting Rough idle...

  • Page 261: Catalytic Converters

    The catalytic converters act on HC, CO, and NOx. Replacement parts must be original Honda parts or equivalents. The catalytic converters must operate at high temperature for the chemical reactions to take place.

  • Page 262: Oxygenated Fuels

    Oxygenated Fuels Some conventional gasolines are being blended with alcohol or an ether compound. These gasolines are collectively referred to as oxygenated fuels. To meet clean air standards, some areas of the United States and Canada use oxygenated fuels to help reduce emissions. If you use an oxygenated fuel, be sure it is unleaded and meets the minimum octane rating requirement.

  • Page 263: Consumer Information

    This section contains information on your warranty and how to get an official Honda Service Manual. Authorized Manuals ..................Warranty Coverage ..................Warranty Service ....................Contacting Honda ..................... Your Honda Dealer ..................The Honda Rider’s Club (USA only) .............. Reporting Safety Defects (USA only) ............. Consumer Information...

  • Page 264: Authorized Manuals

    Helm, Inc. (USA only, Canada: See your Honda dealer to order authorized manuals.) Also available but not necessary to service your model is the Honda Common Service Manual which explains theory of operation and basic service information for various systems common to all Honda motorcycles, motor scooters and ATVs.

  • Page 265: Authorized Manuals

    By completing this form you can order the materials desired. You can pay by check or money order, or charge to your credit card. Mail to Helm, Inc. at the address shown on the back of this order form (USA only). Canada: See your Honda dealer to order authorized manuals. Publication Item Description Qty.
  • Page 266 NOTE: Dealers and Companies please provide dealer or company name, and also the name of the person to whose attention the shipment should be sent. Customer Name Attention Street address/P. O. BOX Apartment Number City State Zip Code Daytime Telephone Number Check or money order enclosed payable to Helm Inc.

  • Page 267: Warranty Coverage

    There are responsibilities, restrictions, and exclusions which apply to these warranties. Please read the Warranties Booklet given to you by your Honda dealer at the time of purchase. Be sure to keep your Honda owner’s card with your Warranties Booklet (USA only).

  • Page 268: Warranty Service

    (such as brakes, tires, etc.). If you believe you have a problem with your motorcycle, call the service department of your Honda dealer. Make an appointment for an inspection and diagnosis. Remember, as the owner of the motorcycle, you will be asked to authorize that inspection.

  • Page 269: Contacting Honda

    That’s why it’s important to work to resolve any differences at the dealership level. If you wish to comment on your experiences with your Honda or with your dealer, please send your comments to the following address (USA only): Motorcycle Division, American Honda Motor Co., Inc., P.O.

  • Page 270: Your Honda Dealer

    The parts department offers Honda Genuine Parts, Pro Honda products, Honda Genuine Accessories (USA only), and Honda accessories and products (Canada only). The same quality that went into your Honda can be found in Honda Genuine replacement parts. You’ll also find comparable quality in the accessories and products available from the parts department.

  • Page 271: The Honda Rider's Club (Usa Only)

    The Honda Rider’s Club (USA only) You may be eligible for a Honda Rider’s Club of America (HRCA) membership with the purchase of your new Honda. You can log on to the HRCA Clubhouse website for details at www.hrca.honda.com. Consumer Information...

  • Page 272: Reporting Safety Defects (Usa Only)

    However, NHTSA cannot become involved in individual problems between you, your dealer, or American Honda Motor Co., Inc. To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153);...
  • Page 273 Consumer Information...
  • Page 274 Table of Contents The following presents the contents of each section of your owner’s manual. MOTORCYCLE SAFETY ................Important Safety Information ................Accessories & Modifications ................Safety Labels ......................INSTRUMENTS & CONTROLS ..............Operation Component Locations ................. Gauges & Indicators .....................

  • Page 275: Table Of Contents

    Table of Contents BEFORE RIDING ....................Are You Ready to Ride? ..................Protective Apparel .................... Rider Training ....................Is Your Motorcycle Ready to Ride? ..............Pre-ride Inspection ................... Load Limits & Guidelines ..................Loading ......................Load Limits ...................... Loading Guidelines ..................
  • Page 276 Table of Contents BASIC OPERATION & RIDING ..............Safe Riding Precautions ..................Starting & Stopping the Engine ................Preparation ......................Starting Procedure .................... Flooded Engine ....................Bank Angle Sensor Ignition Cut-off System ..........How to Stop the Engine ................... Shifting Gears .......................
  • Page 277 Table of Contents Switch Output ....................VOLUME Control ..................Tone Control ....................Fader Control ....................Ambience (AMB) ..................Beep Set ......................Auto Volume Control (AVC) ..............Muting ......................AM/FM Radio ....................Radio Antenna ....................Select Band ....................Select Station ....................Preset Stations ....................
  • Page 278 SERVICING YOUR HONDA ............... 137 Bef ore You Service Your Honda The Importance of Maintenance ..............Maintenance Safety ..................Important Safety Precautions ............... Periodic Maintenance ..................Maintenance Schedule ..................Maintenance Record ..................Service Preparations Maintenance Component Locations ..............Tool Kit ......................
  • Page 279 Catalytic Converters ..................Oxygenated Fuels ..................... CONSUMER INFORMATION ..............Authorized Manuals ..................Warranty Coverage ..................Warranty Service ....................Contacting Honda ..................... Your Honda Dealer ..................The Honda Rider’s Club (USA only) .............. Reporting Safety Defects (USA only) ............. Table of Contents...
  • Page 280 Table of Contents TABLE OF CONTENTS ................INDEX ......................QUICK REFERENCE Table of Contents...
  • Page 281 Table of Contents...
  • Page 282 ......................accessory (ACC) terminal ..................69 air pressure, tires ....................190 air temperature meter ................... 32 American Honda, contacting ................263 antenna, radio ..................... 116 Anti-Lock Brake System (ABS) ................82 apparel, protective ....................

  • Page 283: Index

    Index consumer information ..................257 controls & features ....................37 coolant ........................ . 170 coolant temperature gauge ................16, 21 crankcase breather ....................173 cruise control ......................93 customer service ....................263 defects, safety ....................
  • Page 284 ..................16, 20 Honda, contacting ...................... . 263 Rider’s Club ....................265 dealer ......................264 Honda Service Manual ..................258 horn button ......................40 identification, vehicle ..................240 ignition cut-off system, side stand ......................
  • Page 285 Index key, lost ....................... 236 kit, tool ....................... . 152 labels, safety ......................lamp check ......................17 limit, weight ......................50 load limits ......................50 loading guidelines ....................51 lock, steering ......................89 low tire pressure indicator ...................
  • Page 286 Index odometer ....................... 27 oil, engine ......................163 final drive ...................... . 174 low pressure ....................231 operation component locations ................12 overdrive indicator ..................16, 18 overheat, engine ....................229 owner’s manual storage ..................
  • Page 287 ......................78 system indicator ..................16, 18 reporting safety defects ..................266 rider training ..................... 2, 46 Rider’s Club, Honda ................... 265 riding, bad weather ...................... . 96 basic operation ....................71 clothing ......................
  • Page 288 Index speedometer ....................16, 17 stand, side ......................196 start/reverse button ....................39 starting, engine ....................... . 74 troubleshooting ....................215 steering lock ......................89 stop switch, engine ....................38 stopping engine ..................... 75 storage, motorcycle .....................
  • Page 289 Index travel trunk ......................52 tripmeter ....................... . 27 trouble, unexpected ................... . 213 troubleshooting, starting ..................215 trunk side pockets ....................61 trunk, travel ......................52 turn signal indicators ..................16, 18 vehicle identification no. (VIN) ................
  • Page 290 Memo...
  • Page 291 Memo...
  • Page 292 Memo...

  • Page 293: Quick Reference

    The following is a brief, but important collection of information you need to know about your Honda. You’ll also find space to record important notes. The engine of your Honda can be the most expensive component to repair. Proper maintenance, especially the use of the recommended fluids and filters, prevents premature wear and damage.
  • Page 294 API Service Classification SG or higher except oils labeled as energy conserving on the circular API service label, SAE 10W-30, JASO T 903 standard MA, Pro Honda GN4 4-stroke oil or equivalent 410 lbs (186 kg) Maximum Weight 419 lbs (190 kg)
  • Page 295 K16PR-U11 (DENSO) high speed riding: BKR7E-11 (NGK) K22PR-U11 (DENSO) ethylene glycol antifreeze (silicate-free) for aluminum Coolant engines in 50/50 solution with Pro Honda HP Coolant or an equivalent distilled water main A: 30 A main B: 120 A speed limiter:...
  • Page 296 Quick Reference These symbols are used in Controls & Features section: SYMBOL COMPONENT SEE PAGE engine stop switch engine stop switch START/REVERSE button headlight dimmer switch headlight dimmer switch turn signal switch horn button hazard switch Quick Reference...

This manual is also suitable for:

Gl1800 2012

Table of Contents

Save PDF
