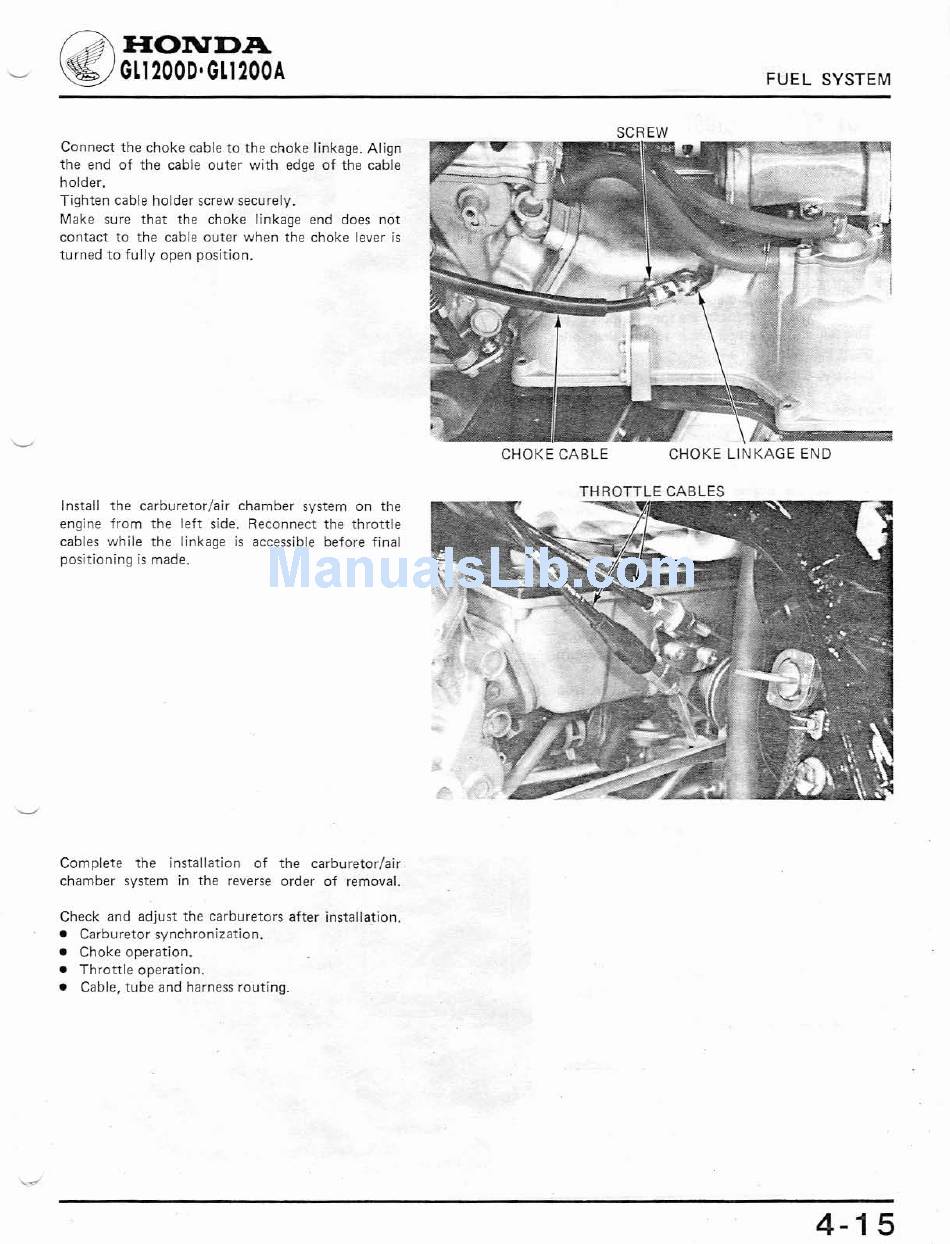

Connect the choke cable to the choke linkage. Align
the end of the cable outer with edge of the cable
holder.
Tighten cable holder screw securely.
Make sure that the choke linkage end does not
contact to the cable outer when the choke lever is
turned to fully open position.
FUEL SYSTEM
SCREW
CHOKE CABLE CHOKE LINKAGE END
Install the carburetor/air chamber system on the
engine from the left side. Reconnect the throttle
cables while the linkage is accessible before final
positioning is made.
Complete the installation of the carburetor/air
chamber system in the reverse order of removal.
Check and adjust the carburetors after installation.
• Carburetor synchronization.
• Choke operation.
• Throttle operation.
• Cable, tube and harness routing.
THROTTLE CABLES
. .
4-15
