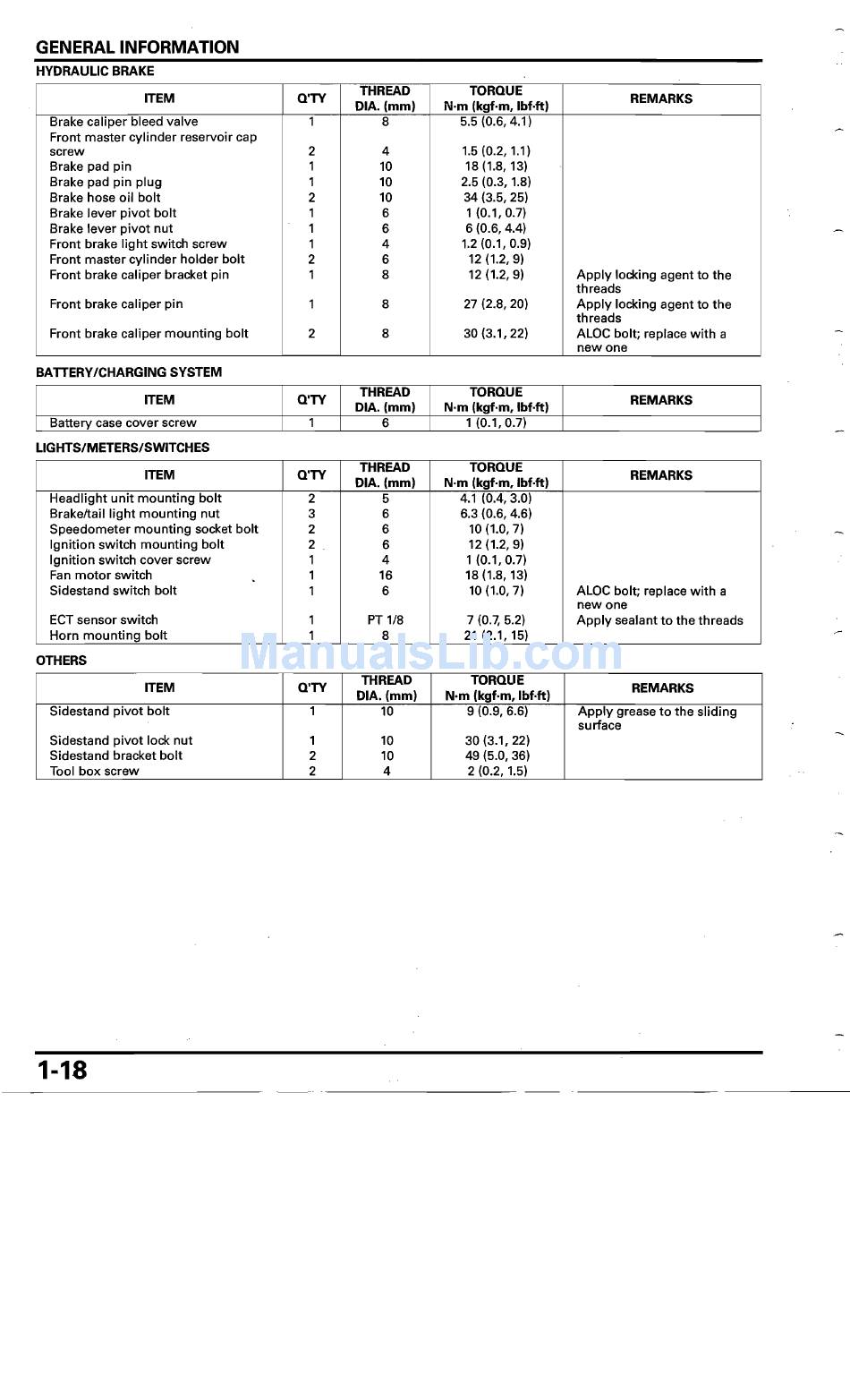

Honda VT750C2 Shadow Spirit Service Manual page 21

GENERAL INFORMATION
HYDRAULIC BRAKE
ITEM Q'TV
THREAD
DIA.(mm)
TORQUE
N'm (kgf·m, Ibf·ft)
REMARKS
Brake caliper bleed valve 1 8
5.5 (0.6,4.1)
Front master cylinder reservoir cap
screw 2 4
1.5 (0.2, 1.1)
Brake pad pin 1 10
18 (1.8, 13)
Brake pad pin plug 1 10 2.5 (0.3, 1.8)
Brake hose oil bolt 2
10 34 (3.5, 25)
Brake lever pivot bolt 1 6
1 (0.1,0.7)
Brake lever pivot nut 1 6 6 (0.6, 4.4)
Front brake light switch screw 1 4 1.2 (0.1, 0.9)
Front master cylinder holder bolt
2 6
12 (1.2,9)
Front brake caliper bracket pin 1 8
12 (1.2, 9)
Apply locking agent to the
threads
Front brake caliper pin 1 8 27 (2.8,20) Apply locking agent to the
threads
Front brake caliper mounting bolt 2 8 30(3.1,22) ALOC bolt; replace with a
new one
BATTERY/CHARGING SYSTEM
ITEM Q'TV
THREAD
DIA.(mm)
TORQUE
N·m (kgf·m, Ibf·ft)
REMARKS
Battery case cover screw 1 6
1 (0.1,0.7)
LIGHTS/METERS/SWITCHES
ITEM Q'TV
THREAD
DIA.(mm)
TORQUE
N·m (kgf·m, Ibf·ft)
REMARKS
Headlight unit mounting bolt
Brakeltail light mounting nut
Speedometer mounting socket bolt
Ignition switch mounting bolt
Ignition switch cover screw
Fan motor switch
.
Sidestand switch bolt
ECT sensor switch
Horn mounting bolt
2
3
2
2
1
1
1
1
1
5
6
6
6
4
16
6
PT 1/8
8
4.1 (0.4,3.0)
6.3 (0.6, 4.6)
10 (1.0, 7)
12 (1.2, 9)
1 (0.1,0.7)
18 (1.8,13)
10 (1.0,7)
7 (0.7, 5.2)
21 (2.1,15)
ALOC bolt; replace with a
new one
Apply sealant to the threads
OTHERS
ITEM Q'TV
THREAD
DIA.(mm)
TORQUE
N·m (kgf·m, Ibf·ft)
REMARKS
Sidestand pivot bolt
Sidestand pivot lock nut
Sidestand bracket bolt
Tool box screw
1
1
2
2
10
10
10
4
9 (0.9, 6.6)
30 (3.1, 22)
49 (5.0, 36)
2 (0.2, 1.5)
Apply grease to the sliding
surface
1-18
