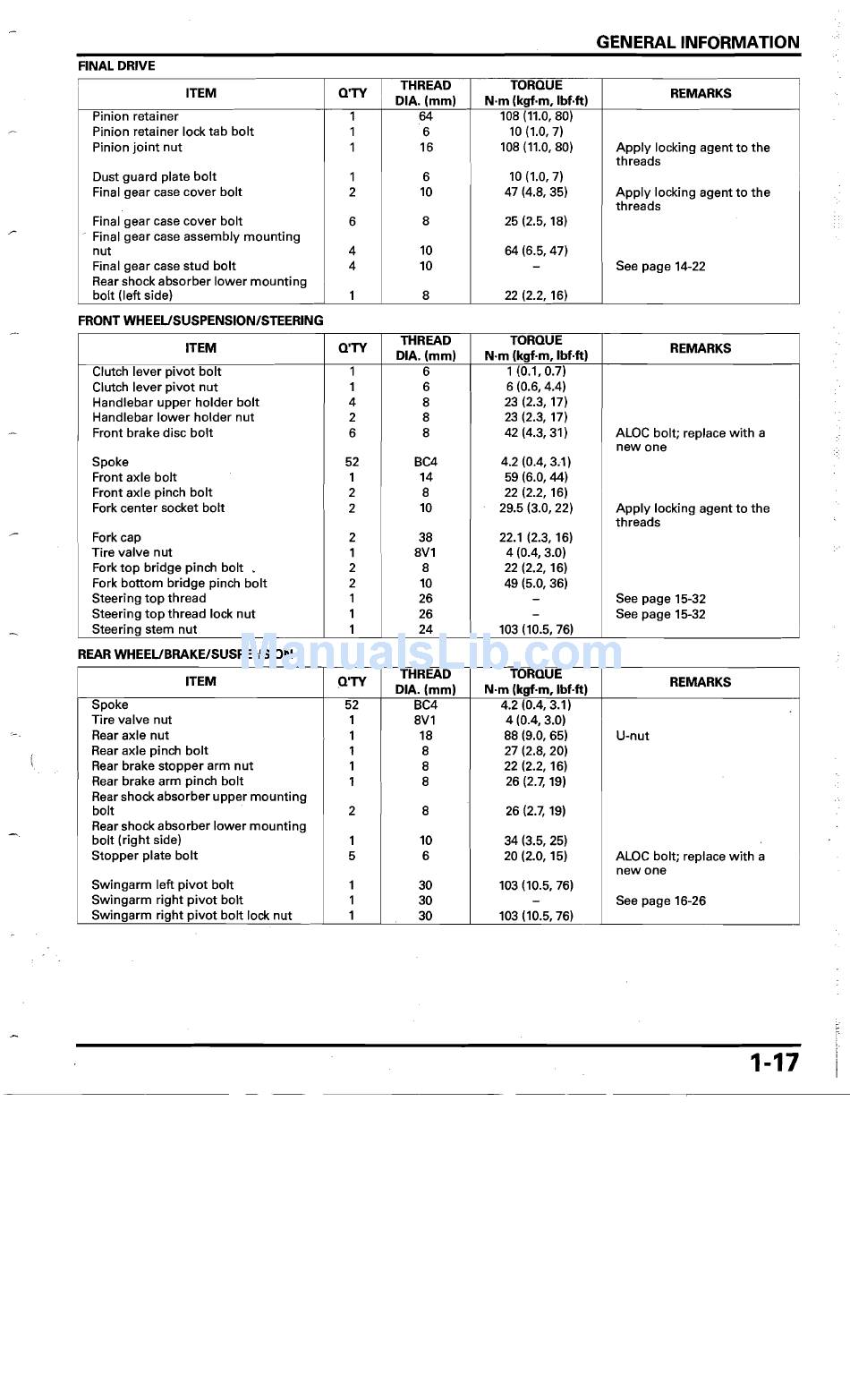

GENERAL INFORMATION
FINAL DRIVE
ITEM Q'TV
THREAD
DIA. (mm)
TORQUE
N·m (kgf·m, Ibf·ft)
REMARKS
Pinion retainer 1 64 108 (11.0, 80)
Pinion retainer lock tab bolt 1 6 10 (1.0, 7)
Pinion joint nut
1 16
108 (11.0, 80)
Apply locking agent to the
threads
Dust guard plate bolt 1 6 10 (1.0, 7)
Final gear case cover bolt
2
10 47 (4.8, 35)
Apply locking agent to the
threads
Rnalgearcasecoverbo~
. Final gear case assembly mounting
6 8 25 (2.5, 18)
nut 4
10 64 (6.5,47)
Final gear case stud bolt
Rear shock absorber lower mounting
4 10
-
See page 14-22
bolt (left side)
1 8
22 (2.2, 16)
FRONT WHEEUSUSPENSION/STEERING
ITEM Q'TV
THREAD
DIA. (mm)
TORQUE
N·m (kgf·m, Ibf·ft)
REMARKS
Clutch lever pivot bolt 1
6
1 (0.1,0.7)
Clutch lever pivot nut 1 6
6 (0.6, 4.4)
Handlebar upper holder bolt 4 8
23 (2.3, 17)
Handlebar lower holder nut 2 8
23 (2.3,17)
Front brake disc bolt 6 8
42 (4.3,31)
ALOC bolt; replace with a
new one
Spoke 52 BC4
4.2 (0.4, 3.1)
Front axle bolt 1
14 59 (6.0, 44)
Front axle pinch bolt 2 8 22 (2.2, 16)
Fork center socket bolt 2 10 29.5 (3.0, 22) Apply locking agent to the
threads
Fork cap 2 38
22.1 (2.3, 16)
Tire valve nut
1 8V1
4 (0.4, 3.0)
Fork top bridge pinch bolt
.
2 8
22 (2.2, 16)
Fork bottom bridge pinch bolt 2 10 49 (5.0, 36)
Steering top thread 1 26
-
See page 15-32
Steering top thread lock nut 1 26
-
See page 15-32
Steering stem nut 1 24 103 (10.5, 76)
REAR WHEEUBRAKE/SUSPENSION
ITEM O'TV
THREAD
DIA. (mm)
TORQUE
N·m (kgf·m, Ibf·ft)
REMARKS
Spoke
52 BC4
4.2 (0.4, 3.1)
Tire valve nut
1 8V1
4 (0.4, 3.0)
Rear axle nut 1 18 88 (9.0, 65) U-nut
Rear axle pinch bolt 1 8 27 (2.8, 20)
Rear brake stopper arm nut 1 8 22 (2.2, 16)
Rear brake arm pinch bolt
1 8
26 (2.7, 19)
Rear shock absorber upper mounting
bolt 2 8 26 (2.7, 19)
Rear shock absorber lower mounting
bolt (right side)
1 10 34 (3.5, 25)
Stopper plate bolt 5 6 20 (2.0, 15)
ALOC bolt; replace with a
new one
Swingarm left pivot bolt
1 30 103 (10.5, 76)
Swingarm right pivot bolt
1 30
-
See page 16-26
Swingarm right pivot bolt lock nut
1 30 103 (10.5, 76)
1-17
