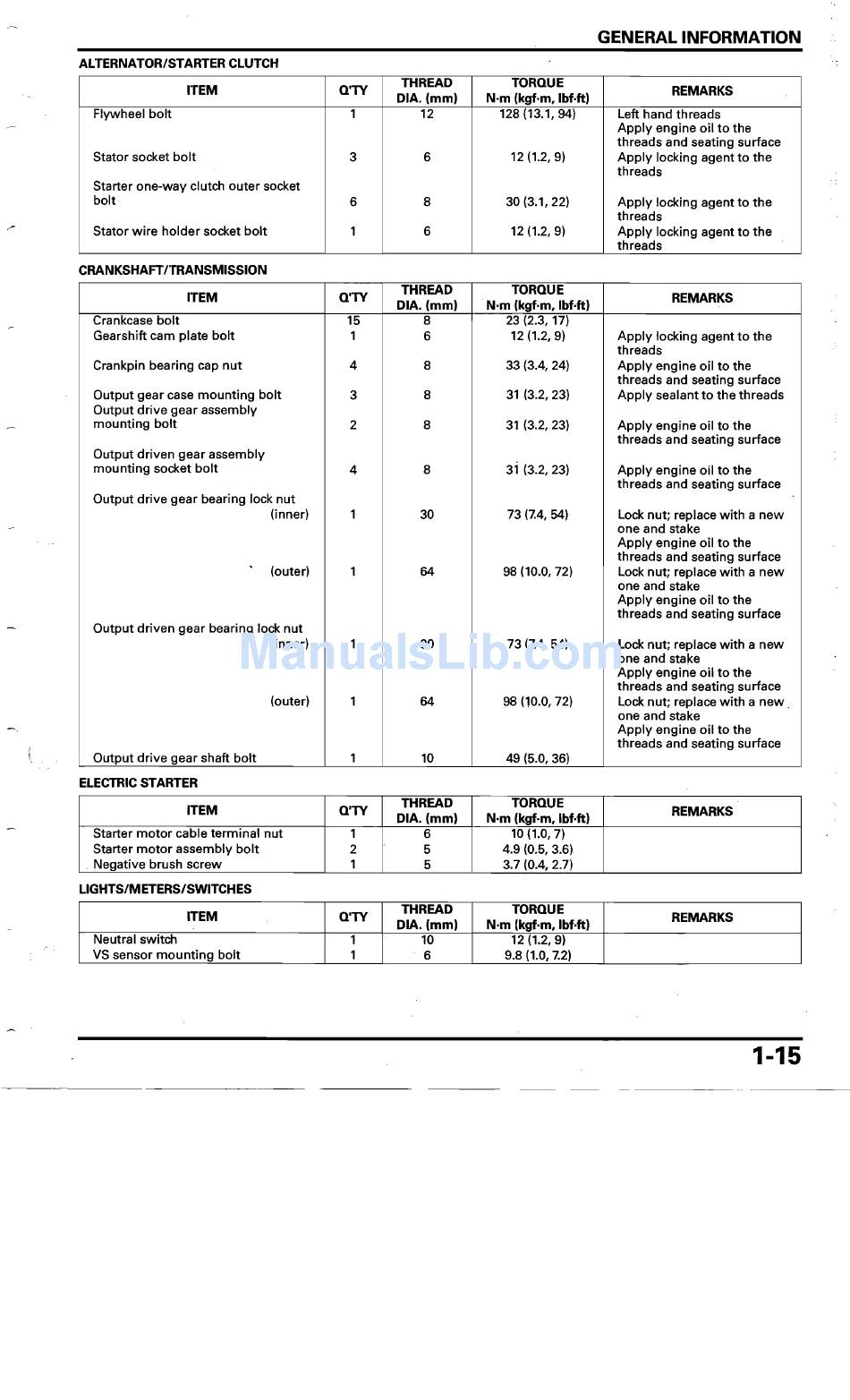

Honda VT750C2 Shadow Spirit Service Manual page 18

GENERAL INFORMATION
ALTERNATOR/STARTER CLUTCH
ITEM Q'TY
THREAD
DIA. (mm)
TORQUE
N'm (kgf·m, Ibf·ft)
REMARKS
Flywheel bolt
Stator socket bolt
Starter one-way clutch outer socket
bolt
Stator wire holder socket bolt
1
3
6
1
12
6
8
6
128 (13.1, 94)
12(1.2,9)
30 (3.1, 22)
12 (1.2, 9)
Left hand threads
Apply engine oil to the
threads and seating surface
Apply locking agent to the
threads
Apply locking agent to the
threads
Apply locking agent to the
threads
CRANKSHAFT/TRANSMISSION
ITEM Q'TY
THREAD
DIA. (mm)
TORQUE
N·m (kgf·m, Ibf·ft)
REMARKS
Crankcase bolt 15 8
23 (2.3, 17)
Gearshift cam plate bolt
1 6 12 (1.2, 9) Apply locking agent to the
threads
Crankpin bearing cap nut 4 8 33 (3.4, 24) Apply engine oil to the
threads and seating surface
Output gear case mounting bolt
Output drive gear assembly
3 8
31 (3.2,23)
Apply sealant to the threads
mounting bolt
Output driven gear assembly
2 8 31 (3.2,23)
Apply engine oil to the
threads and seating surface
mounting socket bolt
Output drive gear bearing lock nut
4
8 3; (3.2,23)
Apply engine oil to the
threads and seating surface
(inner)
1
30
73 (7.4, 54)
Lock nut; replace with a new
one and stake
Apply engine oil to the
.
(outer)
Output driven gear bearing lock nut
1 64 98 (10.0, 72)
threads and seating surface
Lock nut; replace with a new
one and stake
Apply engine oil to the
threads and seating surface
(inner)
1 30 73 (7.4, 54) Lock nut; replace with a new
one and stake
Apply engine oil to the
threads and seating surface
(outer)
1 64 98 (10.0, 72) Lock nut; replace with a new.
one and stake
Apply engine oil to the
threads and seating surface
Output drive gear shaft bolt 1
10
49 (5.0, 36)
ELECTRIC STARTER
ITEM Q'TY
THREAD
DIA. (mm)
TORQUE
N·m (kgf·m, Ibf·ft)
REMARKS
Starter motor cable terminal nut
Starter motor assembly bolt
. Negative brush screw
1
2
1
6
5
5
10 (to, 7)
4.9 (0.5, 3.6)
3.7 (0.4, 2.7)
LIGHTS/METERS/SWITCHES
ITEM Q'TY
THREAD
DIA. (mm)
TORQUE
N·m lkgf·m, Ibf·ft)
REMARKS
Neutral switch
VS sensor mounting bolt
1
1
10
6
12 (1.2, 9)
9.8 (1.0,7.2)
1-15
