VACON® NX All-in-One
Application Guide
10.113 (ID 355) Frequency Converter Temperature Limit Value
Location in the menu:
P2.3.21 (Local/Remote Control Application, Multi-Step Speed Control Application, PID Control Application)
P2.3.4.12 (Multi-Purpose Control Application)
P2.3.2.12 (Pump and Fan Control Application)
Use this parameter to set the limit supervision value for the temperature when activating the temperature limit supervision func-
tion.
Parameter ID 354 supervises this temperature value.
10.114 (ID 356) Analog Supervision Signal
Location in the menu: P2.3.4.13 (Multi-Purpose Control Application)
Use this parameter to select the analog input to monitor.
10.115 (ID 357) Analog Supervision Low Limit
Location in the menu: P2.3.4.14 (Multi-Purpose Control Application)
Use this parameter to set the low limit for the analog input selected to be monitored.
See
10.116 (ID 358) Analog Supervision High
10.116 (ID 358) Analog Supervision High Limit
Location in the menu: P2.3.4.15 (Multi-Purpose Control Application)
Use this parameter to set the high limit for the analog input selected to be monitored.
These parameters set the low and high limits of the signal selected with parameter ID 356.
A
ID358
ID357
1
C
0

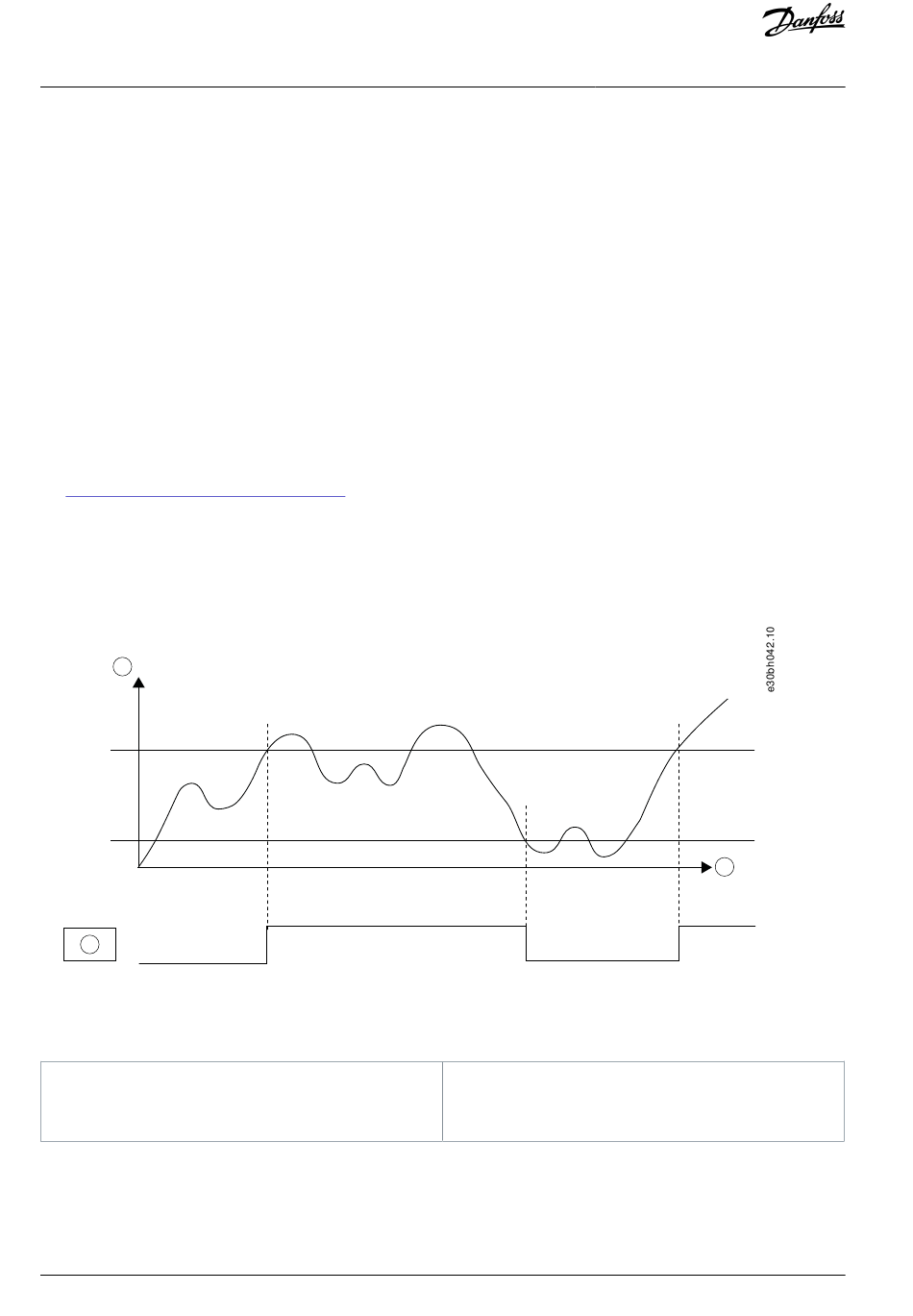

Illustration 50: An Example of On/Off-control
A
AI, selected with parameter ID 356
B
Time
In this example, the programming of parameter ID 463 = B.1.
10.117 (ID 359) PID Controller Minimum Limit
Location in the menu: P2.2.30 (PID Control Application)
Use this parameter to set the minimum limit for the PID controller output.
204 | Danfoss A/S © 2023.02
Limit.
C
Parameter Descriptions
RO1
AB296635287482en-000301 / DPD00903
[s]
B
