VACON® NX All-in-One
Application Guide
A
Signal programmed to digital output
B
DO1 or DO2 output
10.227 (ID 489) Digital Output 2 Signal Selection
Location in the menu: P2.3.2.1 (Multi-Purpose Control Application)
Use this parameter to connect the digital output signal to the digital output of your selection.
TTF programming method must be applied to this parameter (see
See
10.224 (ID 486) Digital Output 1 Signal
10.228 (ID 490) Digital Output 2 Function
Location in the menu: P2.3.2.2 (Multi-Purpose Control Application)
Use this parameter to select the function for the digital output signal.
See
10.72 (ID 312) Digital Output
10.229 (ID 491) Digital Output 2 On-Delay
Location in the menu: P2.3.2.3 (Multi-Purpose Control Application)
Use this parameter to set the ON delay for the digital output.
See
10.225 (ID 487) Digital Output 1
10.230 (ID 492) Digital Output 2 Off-Delay
Location in the menu: P2.3.2.4 (Multi-Purpose Control Application)
Use this parameter to set the OFF delay for the digital output.
See
10.226 (ID 488) Digital Output 1
10.231 (ID 493) Adjust Input
Location in the menu: P2.2.1.4 (Multi-Purpose Control Application)
Use this parameter to select the signal that adjusts the frequency reference of the motor.
For selection 5 "Signal from fieldbus (FBProcessDataIN), see
G2.9.
A
44 Hz
40 Hz
36 Hz

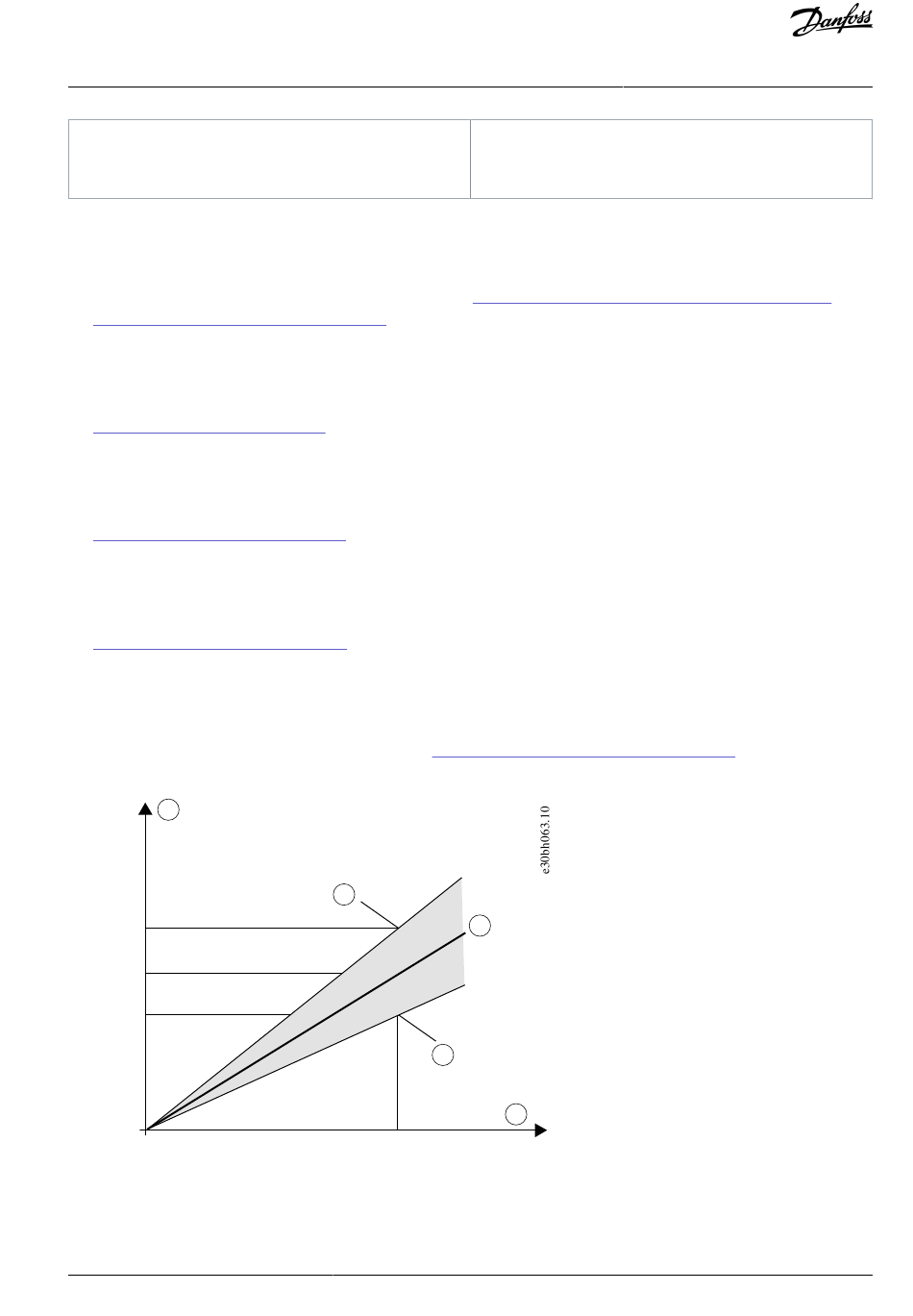

Illustration 67: An Example of Adjust Input
Danfoss A/S © 2023.02
Selection.
Function.
On-Delay.
Off-Delay.
10.624 Fieldbus Control Parameters (IDs 850–859)
B
D
C
ON-delay
D
OFF-delay
10.626 "Terminal to Function" (TTF) Programming
C
E
AB296635287482en-000301 / DPD00903 | 229
Parameter Descriptions
Principle).
and parameter group
