FWD f
out
REV
1
DIN
2
DIN

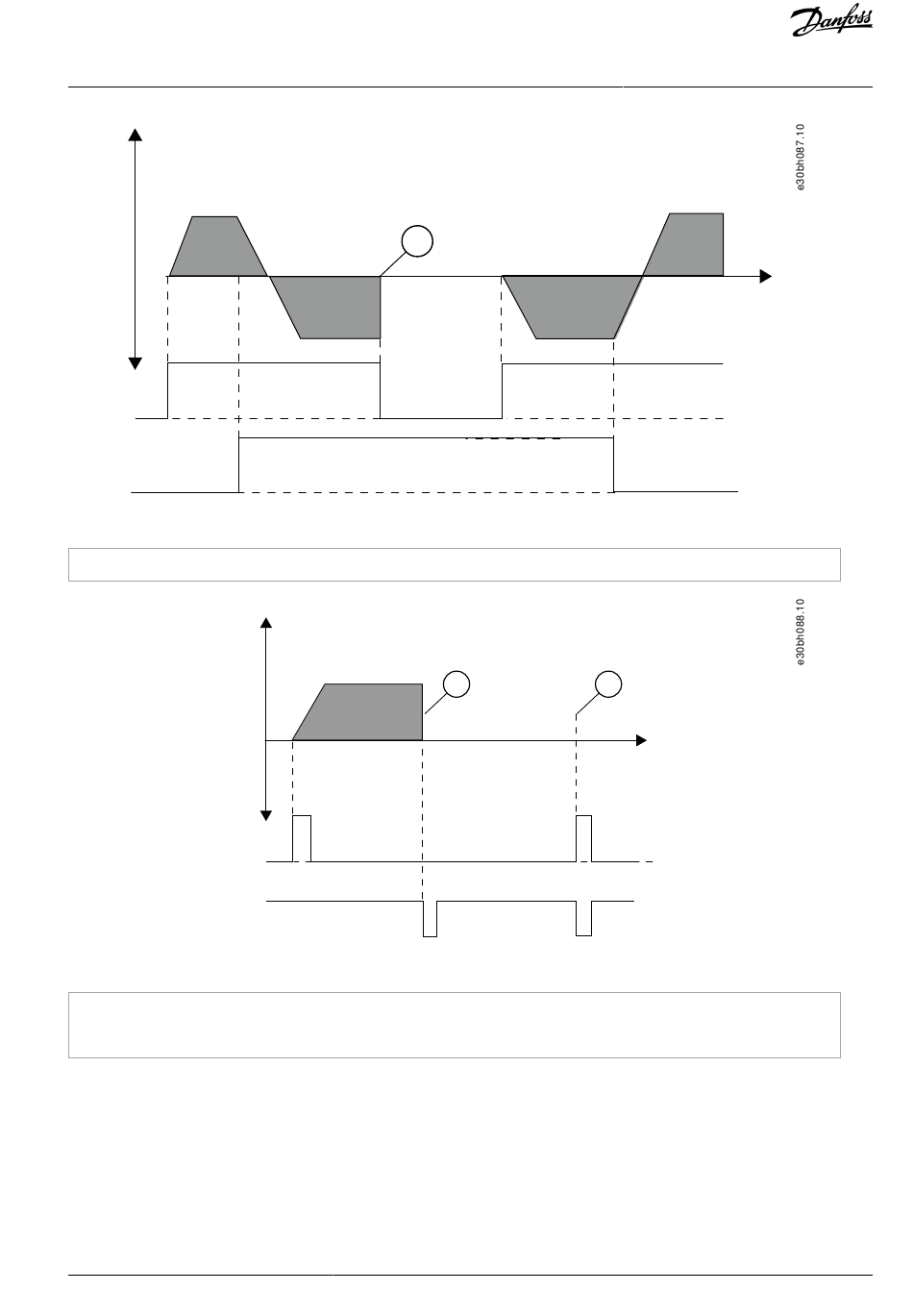

Illustration 32: Start, Stop, Reverse
A Stop function (ID 506) = coasting
REV
DIN1
Start
DIN2
Stop
Illustration 33: Start Pulse/ Stop Pulse
A
Stop function (ID 506) = coasting
B If Start and Stop pulses are simultaneous, the Stop pulse overrides the Start pulse.
10.61 (ID 301) DIN 3 Function
Location in the menu:
• P2.17 (Basic Application)
• P2.2.2 (Standard Application, Local/Remote Control Application, Multi-Step Speed Control Application, PID Control Application)
Use this parameter to select the function for the digital input A3.
