10.66 (ID 306) Reference Filter Time
Location in the menu: P2.2.7 (Standard Application)
Use this parameter to set the filtering time to filter disturbances from the analog input signals AI1 and AI2.
Long filtering time makes regulation response slower.

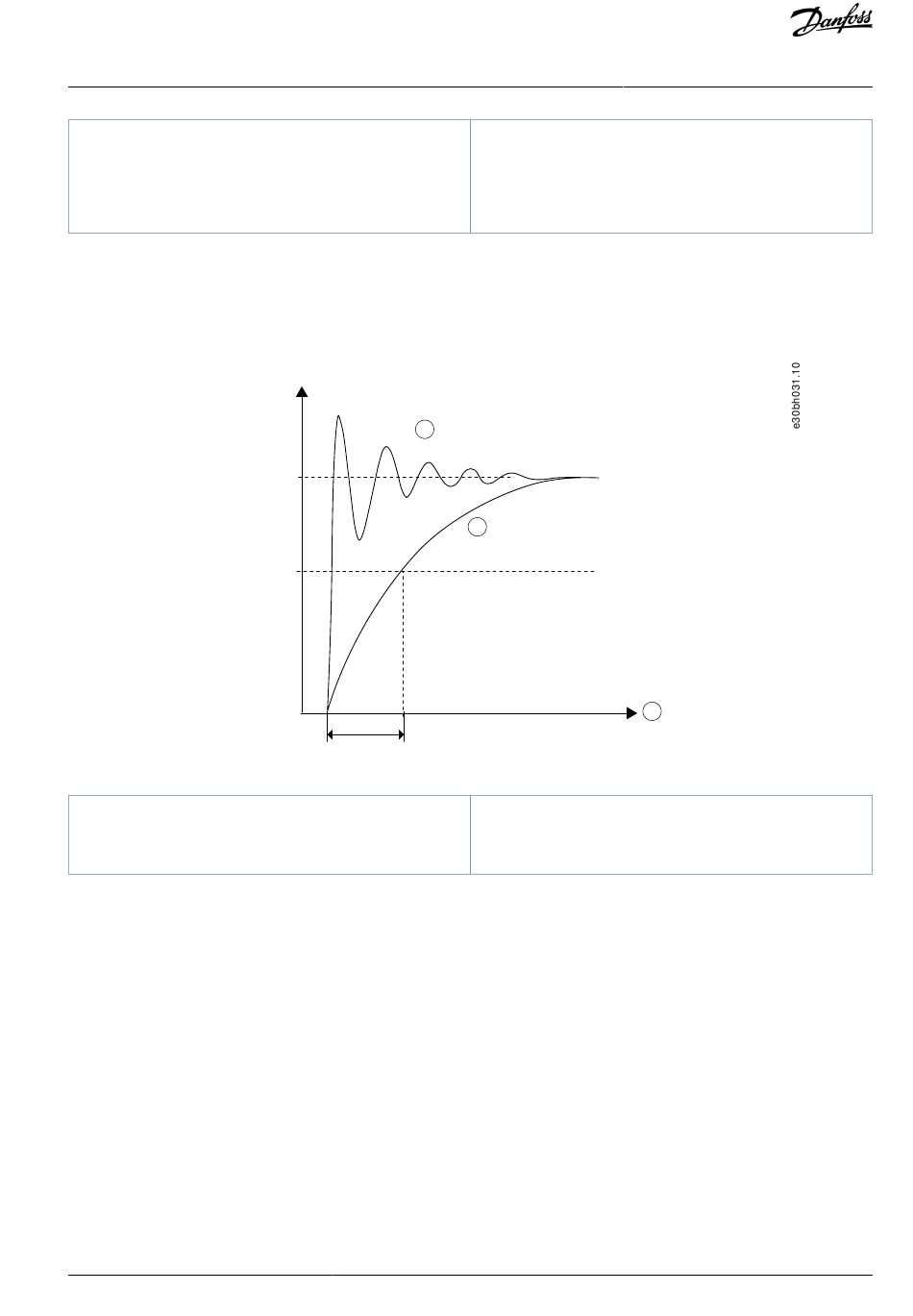

Illustration 37: Reference Filtering
A Unfiltered signal
B Filtered signal
10.67 (ID 307) Analog Output 1 Function
Location in the menu:
• P2.16 (Basic Application)
• P2.3.2 (Standard Application, Local/Remote Control Application, Multi-Step Speed Control Application, PID Control Application)
• P2.3.5.2 (Multi-Purpose Control Application)
• P2.3.3.2 (Pump and Fan Control Application)
Use this parameter to select the function for the analog output 1 signal.
10.68 (ID 308) Analog Output 1 Filter Time
Location in the menu:
• P2.3.3 (Standard Application, Local/Remote Control Application, Multi-Step Speed Control Application, PID Control Application)
• P2.3.5.3 (Multi-Purpose Control Application)
• P2.3.3.3 (Pump and Fan Control Application)
Use this parameter to set the filtering time of the analog output 1 signal.
Setting this parameter value to 0 deactivates filtering.
