10.542 (ID 3508) Modified Value
Location in the menu: P2.13.2.7 (Multi-purpose Control Application)
Use this parameter to give new value to the point selected with ID 3507.
10.543 (ID 3509) Baseline Data Selector
Location in the menu: P2.13.2.9 (Multi-purpose Control Application)
Use this parameter to select which array points can be monitored in monitor group M1.24.1 Baseline data.
10.544 (ID 3511) Current Mean Factor
Location in the menu: P2.13.3.3.1 (Multi-purpose Control Application)
The several statistical data points (mean, minimum, maximum, and standard) from the baseline model can be combined into one
threshold value. Use this parameter to set the mean factor in the threshold value. If the threshold value is zero, the mean factor is
not used.
Threshold value = MeanFactor ∗ mean + MinFactor ∗ min + MaxFactor ∗ max + StdFactor ∗ stddev
10.545 (ID 3512) Current Min Factor
Location in the menu: P2.13.3.3.2 (Multi-purpose Control Application)
The several statistical data points (mean, minimum, maximum, and standard) from the baseline model can be combined into one
threshold value. Use this parameter to set min factor in the threshold value. If the threshold value is zero, the min factor is not used.
See the formula in 10.544 (ID 3511) Current Mean
10.546 (ID 3513) Current Max Factor
Location in the menu: P2.13.3.3.3 (Multi-purpose Control Application)
The several statistical data points (mean, minimum, maximum, and standard) from the baseline model can be combined into one
threshold value. Use this parameter to set the max factor in the threshold value. If the threshold value is zero, the max factor is not
used.
See the formula in 10.544 (ID 3511) Current Mean
10.547 (ID 3514) Current Std Factor
Location in the menu: P2.13.3.3.4 (Multi-purpose Control Application)
The several statistical data points (mean, minimum, maximum and standard) from the baseline model can be combined into one
threshold value. Use this parameter to set the std factor in the threshold value. If the threshold value is zero, the std factor is not
used.
See the formula in 10.544 (ID 3511) Current Mean
10.548 (ID 3515) Current Interpolation Type
Location in the menu: P2.13.3.3.5 (Multi-purpose Control Application)
Use this parameter to select interpolation type for the notification threshold values across frequency points.
Threshold
Value
Value 1
Value 2
Value 0
f0 f1 f2

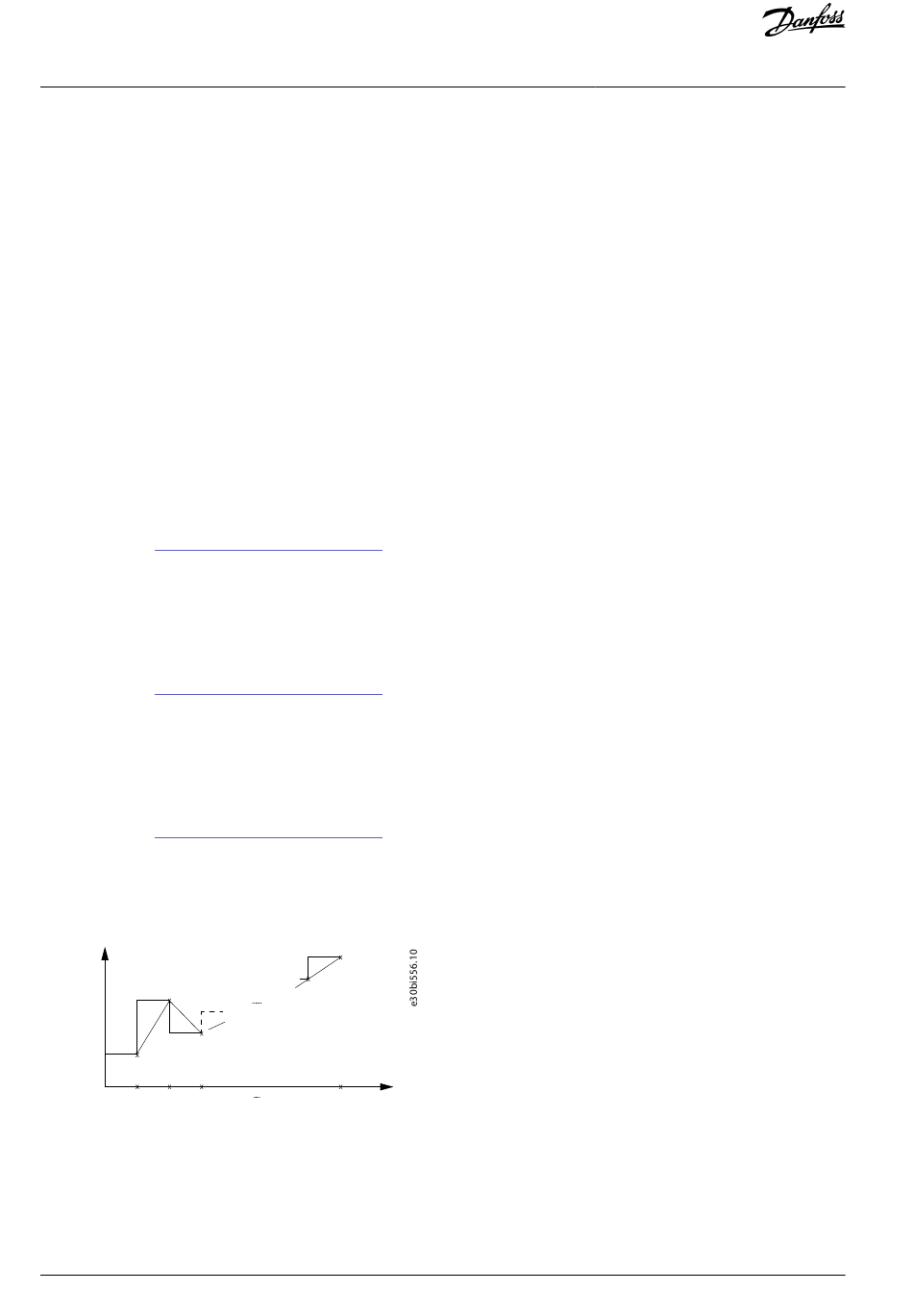

Illustration 95: Current Interpolation Type
10.549 (ID 3516) Current Warning S1 Mode
Location in the menu: P2.13.3.4.1 (Multi-purpose Control Application)
Use this parameter to select the warning S1 mode which is used for calculating warning S1 notification threshold.
