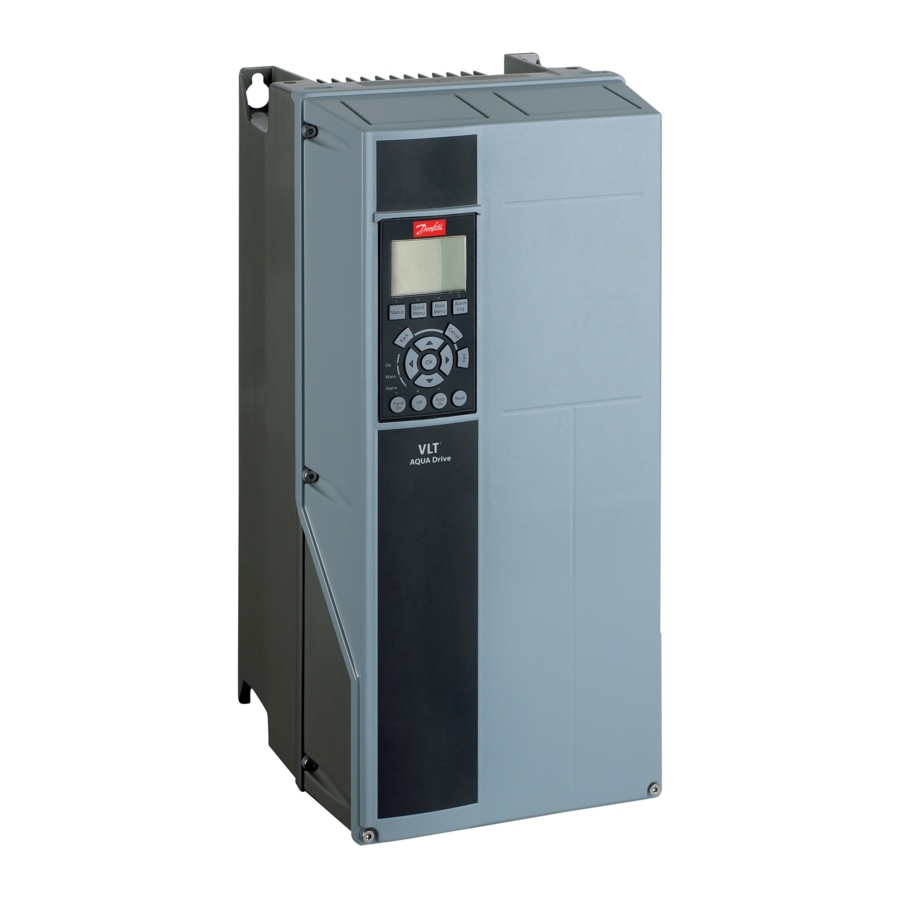

Danfoss VLT FC Series Manual

Pre-installation

Pre-Installation Considerations

• Modules contained in spare part kits may come from different manufacturers than original parts, but are compatible.
• Ensure that the environment is free of airborne dust and contaminants that can accumulate on the thermal compound.
• To avoid a premature IGBT failure, use thermal grease to create a proper thermal interface between the IGBT modules and the heatsink.

Refer to the product service manual for disassembly/reassembly procedures.
NOTICE
Follow proper ESD precautions to prevent damage to sensitive components

Installation Procedure

1. Clean the heat sink with a clean cloth and a solvent or alcohol solution before installing the IGBT module.
2. Apply thermal grease to the bottom of the IGBT module.
   • Thermal grease may separate inside the packet. Apply light pressure to the outside of the packet for one minute to mix contents that may have settled.
   • Apply a layer of grease to the bottom of the module. Excess grease around the module is not a problem.
3. Place the IGBT module in position and screw hand-tight using the mounting screws provided with the spare part kit. Wait one minute before torquing the screws.
4. Slowly tighten the screws, in the order shown in Illustration 1.1, to 50% of the torque value provided in Table 1.1 (maximum 20 revolutions per minute).

   Table 1.1 Torque Instructions


   Bus bar connection torque	Mounting torque	Tightening order
   44 in-lb (5 Nm)	44 in-lb (5 Nm)	Hand tight: 1-2-3-4 Full torque: 4-3-2-1

5. Continue to slowly tighten the mounting screws to 100% of the torque value (maximum 5 revolutions per minute).
