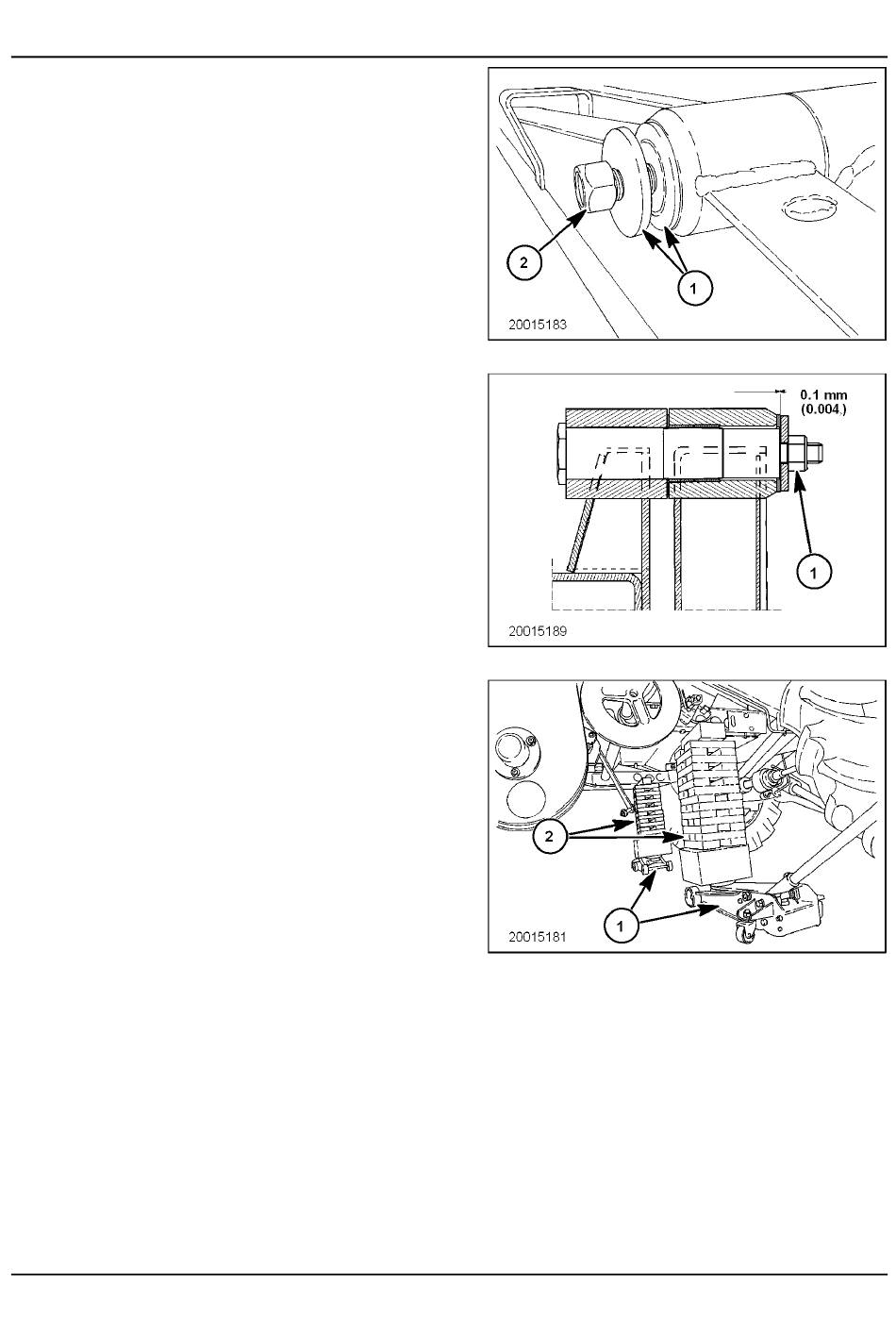

11.
Install the washers (1) and nut (2) onto the pivot
shaft. Tighten the nut securely.
12.
Adjust the lock nut (1) to gain 0.1 mm (0.004 in)
clearance between the two washers.
13.
Lower the floor jacks (1) Remove the wood blocks.
Next operation:
Install the cleaning fan. See Fan - Install (K.62.B.52 - F.10.A.15).
CROP PROCESSING - CLEANING Primary cleaning
K.62.B / 158
2 4/7/2006
10
20015183_1245
11
20015189
12
20015181_1246
