Keysight Technologies X Series Service Manual page 426

Replaceable Parts
Hardware

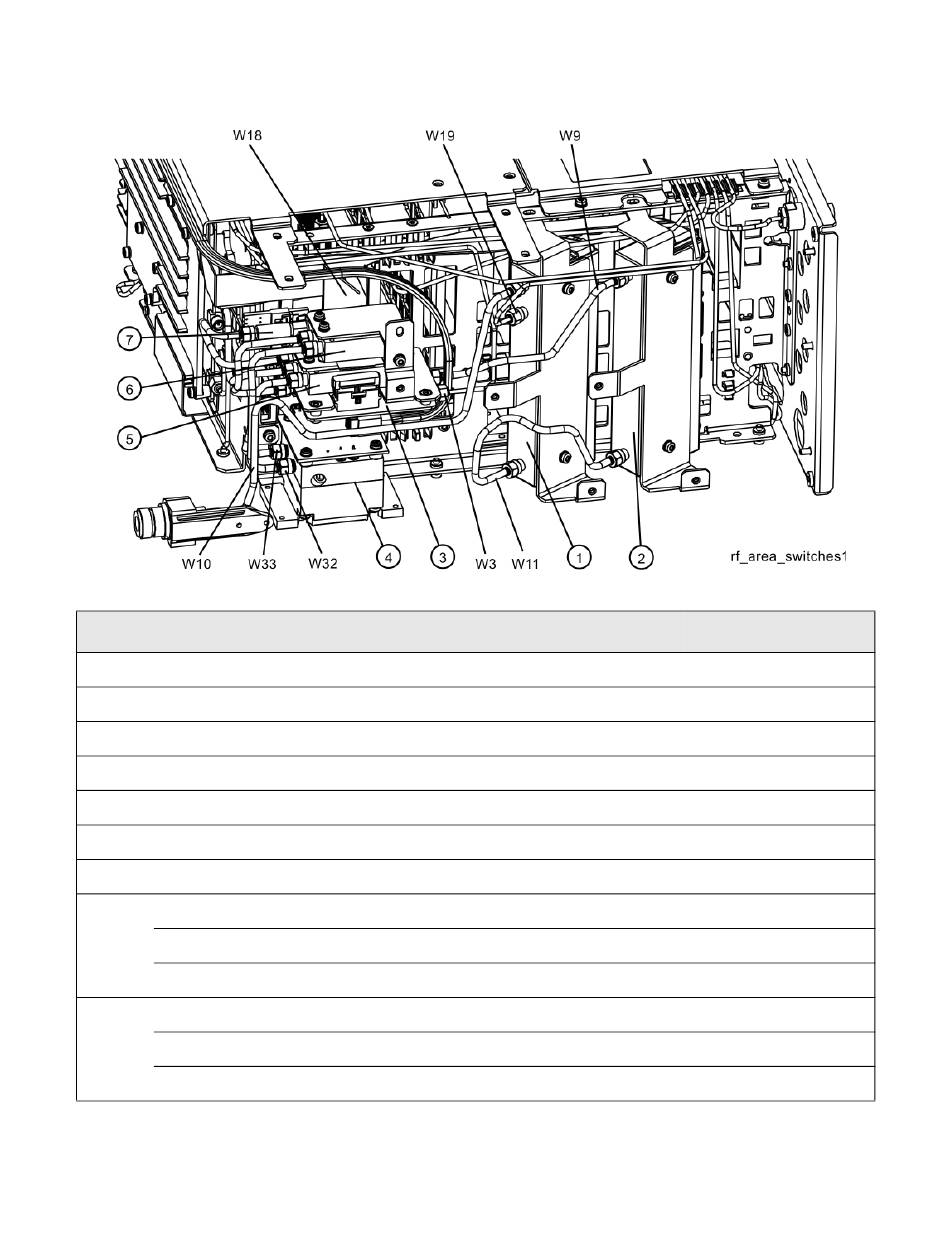

Figure 14-11 RF Area - Options B40, MPB, or DP2
Item Description
1 A9 RF Attenuator A
2 A10 RF Attenuator B
3 A11 Low Band Switch Assembly
4 A12 YTF Preselector (except Option 503)
5 SW1 Coaxial Switch (Options B40, MPB, or DP2)
6 SW2 Coaxial Switch (Options B40, MPB, or DP2)
7 AT1 Fixed Attenuator, 6 dB
W3 Cable Assembly, A11J2 to A13J2 (Semi Rigid)
Serial number < MY/SG50510001, Option 503, 507, 513, 526
Serial number ≥ MY/SG50510001 , Option 503, 507, 513, 526
W9 Cable Assembly, A10 Output to A11J1 (Semi Rigid)
Serial number < MY/SG50510001, Option 503, 507, 513, 526
Serial number ≥ MY/SG50510001, Option 503, 507, 513, 526
426
(0 to 4 dB)
(0 to 66 dB)
Keysight Part Number
33360-60008
33321-60083
E4410-60121
5087-7382
N1810-60069
N1810-60069
08493-60026
E4410-20162
N9020-20101
E4410-20159
N9020-20153
Keysight N9010A EXA Service Guide
