RF Section Troubleshooting (RF/Microwave Analyzers)
Troubleshooting
2. L.O. Synthesizer Assembly Verification
Press the following keys on the analyzer:
Refer to
Assembly (1).

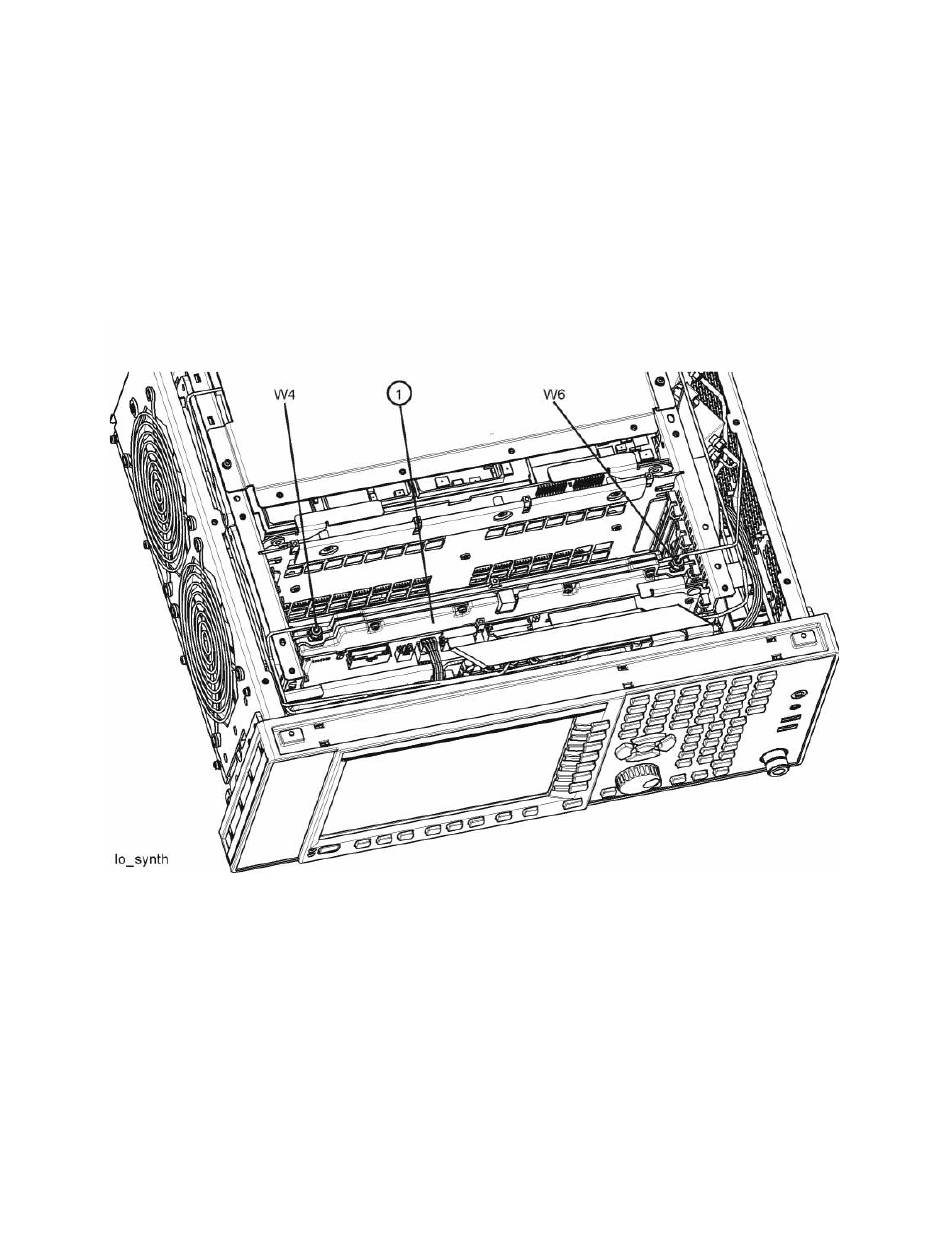

Figure 4-7
W4 and W6 Location
154
FREQ (Channel), 1 GHz
SPAN (X Scale)
Zero Span
Figure
4-7. Disconnect cable W4 at A14J740 of the L.O. Synthesizer
