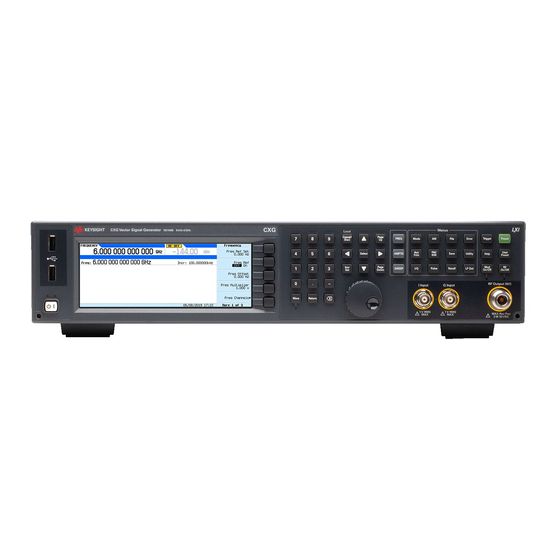

- Page 1 Keysight X-Series Signal Generators Instrument Security and Removable Memory Card Option 006 Upgrade Kit Note: For the latest revision of this installation note, go to the following website: http://www.keysight.com/find/mxg Installation Note Part Number: N5180-90066 Published in USA January 2015...
- Page 2 The information contained in this document is subject to change without notice. Keysight Technologies makes no warranty of any kind with regard to this material, including but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
- Page 3 To Be Performed By: ..... . (X) Keysight Technologies Service Center (X) Personnel Qualified by Keysight Technologies (X) Customer Estimated Installation Time: ....
-
Page 4: Installation Kit Parts List
Instrument Security and Removable Memory Card Option 006 Upgrade Kit Installation Kit Parts List Item Quantity Description Part Number IC 8GB Flash Memory SMT 1819-1026 Bag Plastic (air cap) 9222-0993 Cover, SD Card N5180-00027 5010-7769 Media Binder Installation Note N5180-90066 a. -
Page 5: Run The Self Tests
Instrument Security and Removable Memory Card Option 006 Upgrade Kit Check Signal Generator Operation Use the following procedure to confirm that the signal generator powers up and that the internal check does not identify any errors. The internal check evaluates the operation of the signal generator and returns an error message if it detects a problem. - Page 6 Instrument Security and Removable Memory Card Option 006 Upgrade Kit Redeem and Install the Option 006 License Redeem and install the Option 006 license key by following the instructions provided on the enclosed Entitlement Certificate. Installation Note N5180-90066...
-
Page 7: Install Sd Memory Card
Instrument Security and Removable Memory Card Option 006 Upgrade Kit Install SD Memory Card 1. Place the signal generator flat with the rear panel facing you. 2. Locate the SD Card slot on the right side of the instrument, shown in Figure 1. Figure 1 SD Card Slot 3. - Page 8 Instrument Security and Removable Memory Card Option 006 Upgrade Kit 4. Insert the left side of SD Card cover into the slot as shown in Figure 3. Figure 3 Attach SD Card Cover 5. Hand tighten the screw on the SD Card cover to secure closure. See Figure 4. Figure 4 Secure SD Card Cover Installation Note N5180-90066...
- Page 9 Instrument Security and Removable Memory Card Option 006 Upgrade Kit Enable the Memory Card Use the following procedure if you want to store all user data to the SD card. Toggle to “On” position. Remove the SD card from the instrument prior to instrument sanitization. CAUTION Refer to the Security Features and Document of Volatility for Keysight Signal Generators...
- Page 10 Instrument Security and Removable Memory Card Option 006 Upgrade Kit Installation Note N5180-90066...
