C
ONFIGURING THE

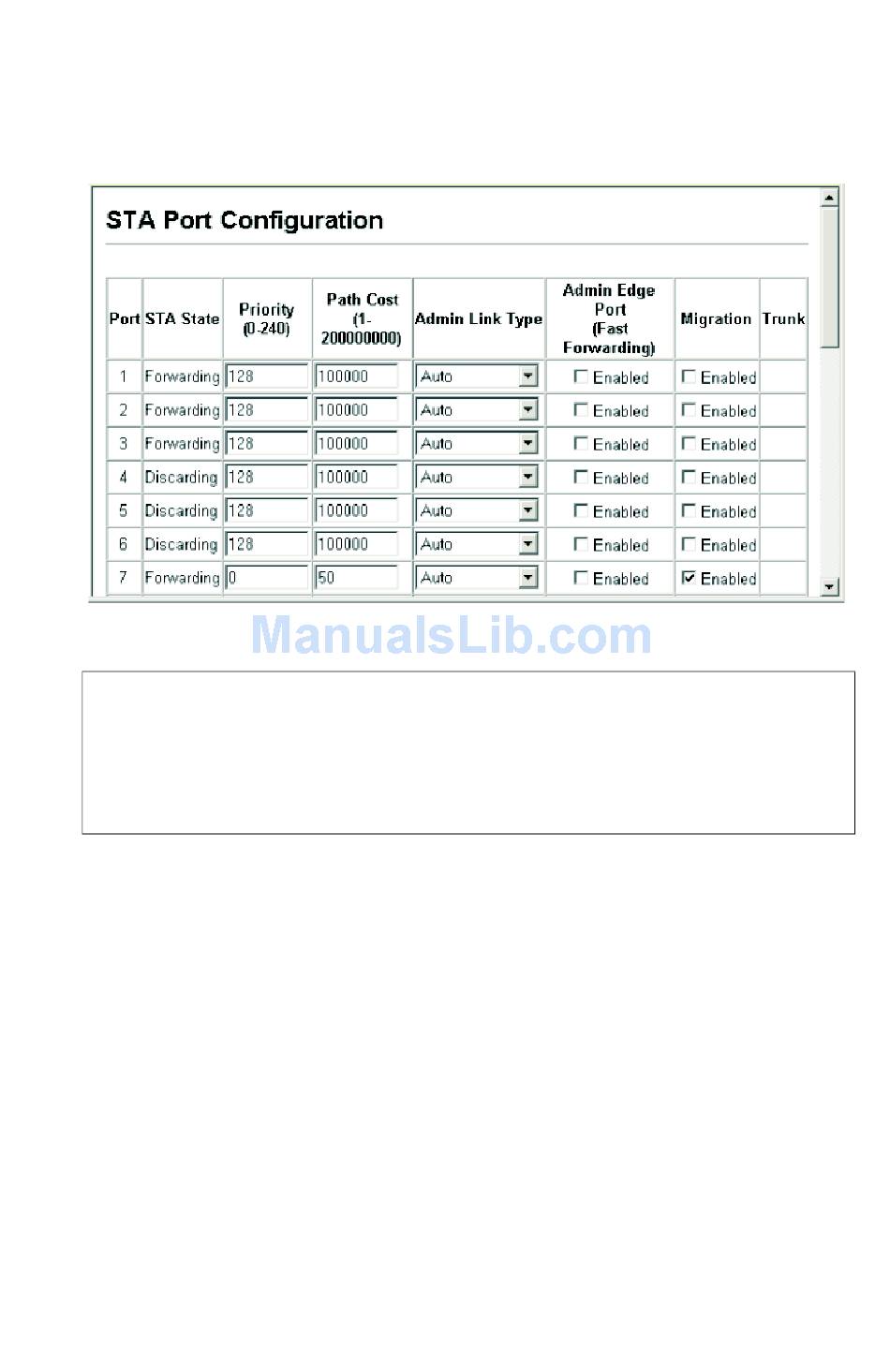

Web – Click Spanning Tree, STA Port Configuration or STA Trunk
Configuration. Modify the required attributes, then click Apply.
CLI – This example sets STA attributes for port 7.
Console(config)#interface ethernet 1/7
Console(config-if)#spanning-tree port-priority 0
Console(config-if)#spanning-tree cost 50
Console(config-if)#spanning-tree link-type auto
Console(config-if)#no spanning-tree edge-port
Console(config-if)#spanning-tree protocol-migration
Console(config-if)#

VLAN Configuration

Overview

In large networks, routers are used to isolate broadcast traffic for each
subnet into separate domains. This switch provides a similar service at
Layer 2 by using VLANs to organize any group of network nodes into
separate broadcast domains. VLANs confine broadcast traffic to the
originating group, and can eliminate broadcast storms in large networks.
This also provides a more secure and cleaner network environment.
3-102
S
WITCH
4-119
4-155
4-154
4-158
4-156
4-159
