Configuring Uplink and Downlink Ports

Use the Private VLAN Link Status page to set ports as downlink or uplink
ports. Ports designated as downlink ports can not communicate with any
other ports on the switch except for the uplink ports. Uplink ports can
communicate with any other ports on the switch and with any designated
downlink ports.

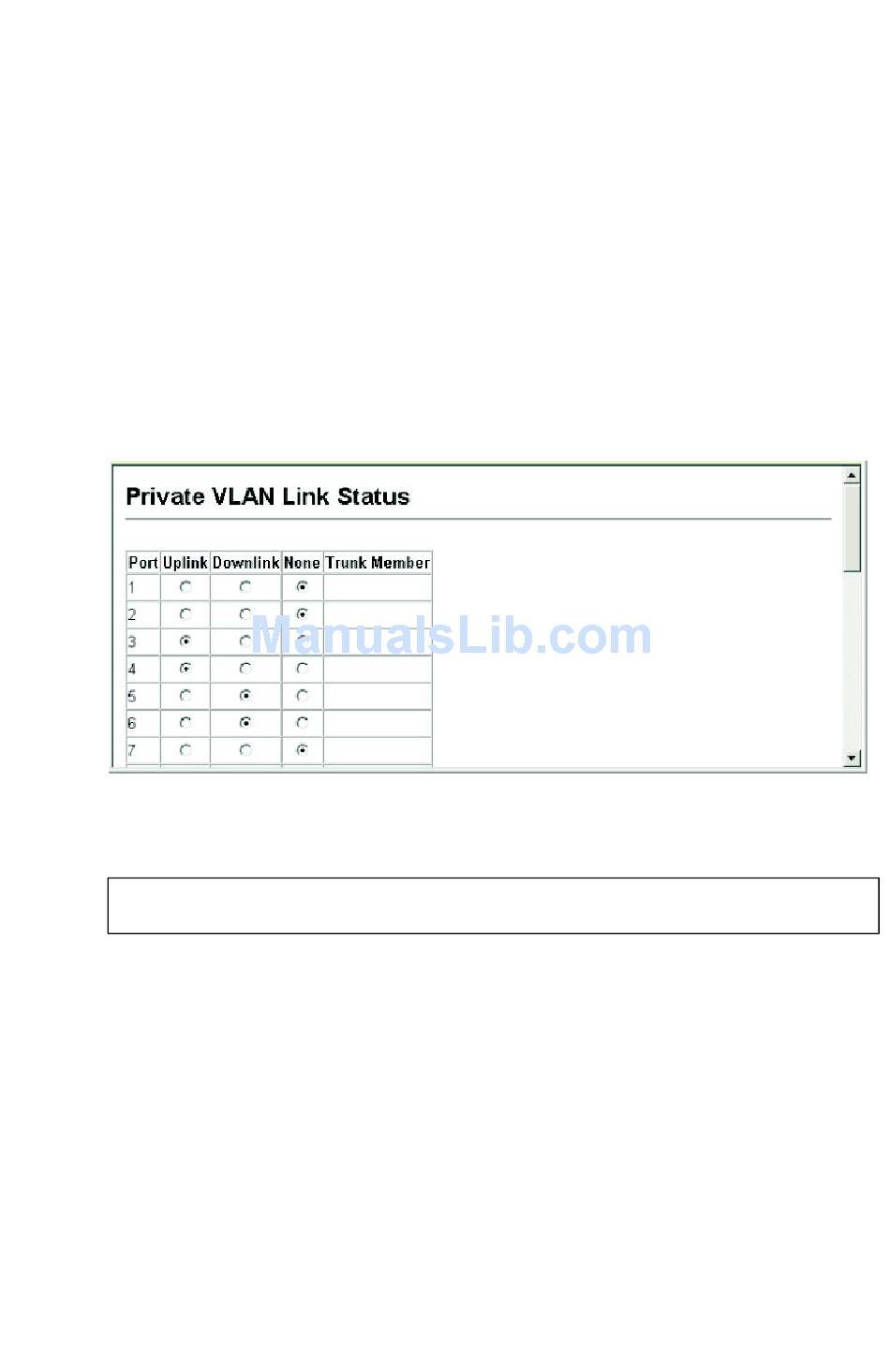

Web – Click Private VLAN, Private VLAN Link Status. Mark the ports
that will serve as uplinks and downlinks for the private VLAN, then click
Apply.
CLI – This configures ports 3 and 4 as uplinks and ports 5 and 6 as
downlinks.
Console(config)#pvlan uplink 1/3-4 downlink 1/5-6
Console(config)#
