Displaying Dynamically Learned Arp Entries - SMC Networks SMC6724L3 Management Manual

• MAC Address – MAC address statically mapped to the corresponding
IP address. (Valid MAC addresses are hexadecimal numbers in the
format: xx-xx-xx-xx-xx-xx.)
• Entry Count – The number of static entries in the ARP cache.

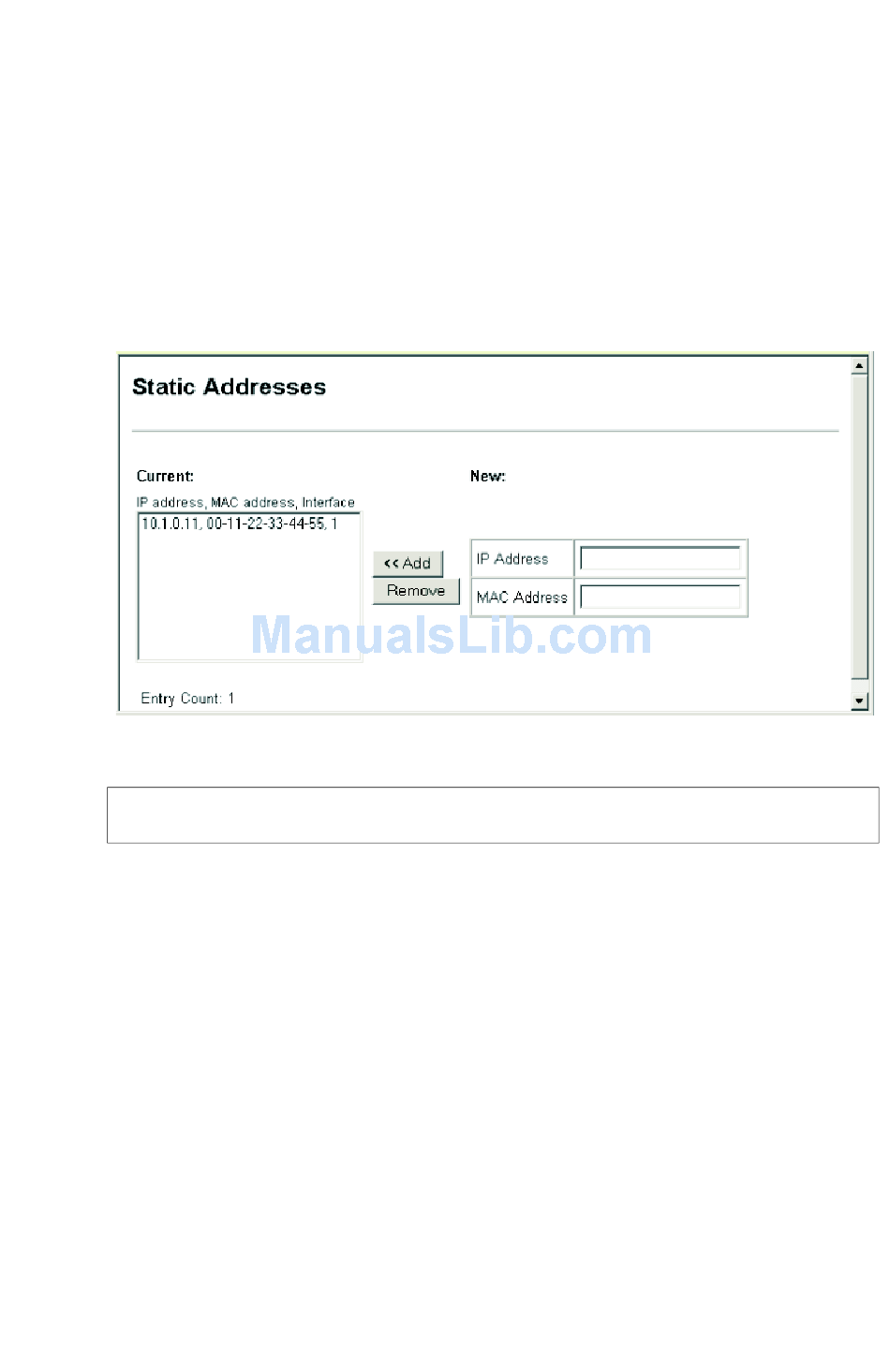

Web - Click IP, ARP, Static Addresses. Enter the IP address, the
corresponding MAC address, and click Apply.
CLI - This example sets a static entry for the ARP cache.
Console(config)#arp 10.1.0.11 00-11-22-33-44-55
Console(config)#

Displaying Dynamically Learned ARP Entries

The ARP cache contains entries that map IP addresses to the
corresponding physical address. Most of these entries will be dynamically
learned through replies to broadcast messages. You can display all of the
dynamic entries in the ARP cache, change specific dynamic entries into
static entries, or clear all dynamic entries from the cache.
Command Attributes
• IP Address – IP address of a dynamic entry in the cache.
• MAC Address – MAC address mapped to the corresponding IP address.
• Interface – VLAN interface associated with the address entry.
IP R
OUTING
