• Subnet Mask – This mask identifies the host address bits used for
routing to specific subnets. (Default: 255.0.0.0)
• Default Gateway – IP address of the gateway router between this device
and management stations that exist on other network segments.
(Default: 0.0.0.0)

Manual Configuration

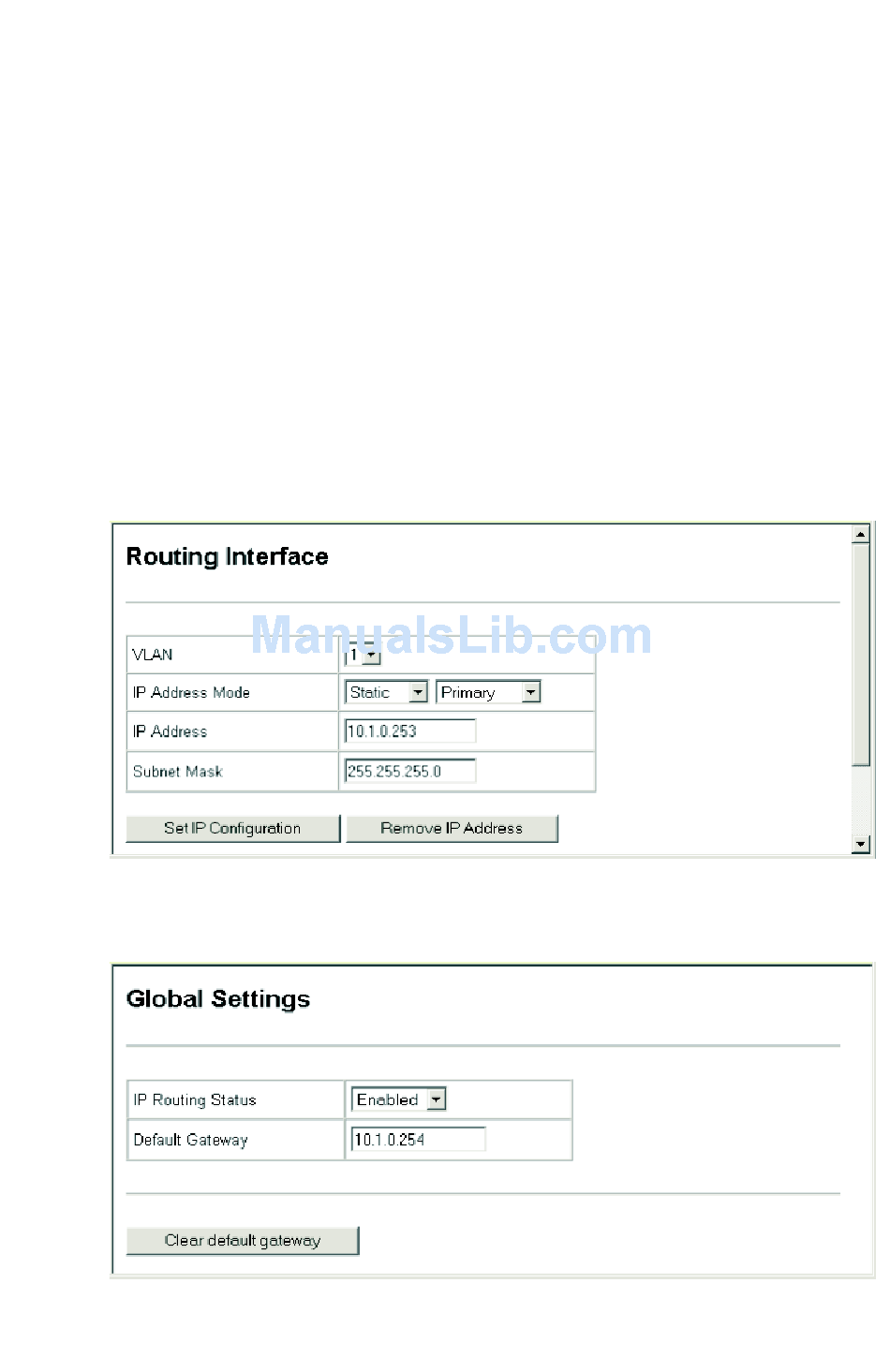

Web – Click IP, General, Routing Interface. Select the VLAN to which the
management station is attached, set the IP Address Mode to "Static" and
specify a "Primary" interface, enter the IP address and subnet mask, then
click Set IP Configuration.
Click IP, Global Setting. If this switch and management stations exist on
other network segments, then specify the default gateway, and click Apply.
