Configuration Options

Configurable parameters have a dialog box or a drop-down list. Once a
configuration change has been made on a page, be sure to click on the
"Apply" or "Apply Changes" button to confirm the new setting. The
following table summarizes the Web page configuration buttons.
Button
Revert
Refresh
Apply
Apply Changes
Notes: 1. To ensure proper screen refresh, be sure that Internet Explorer
2. When using Internet Explorer 5.0, you may have to manually

Panel Display

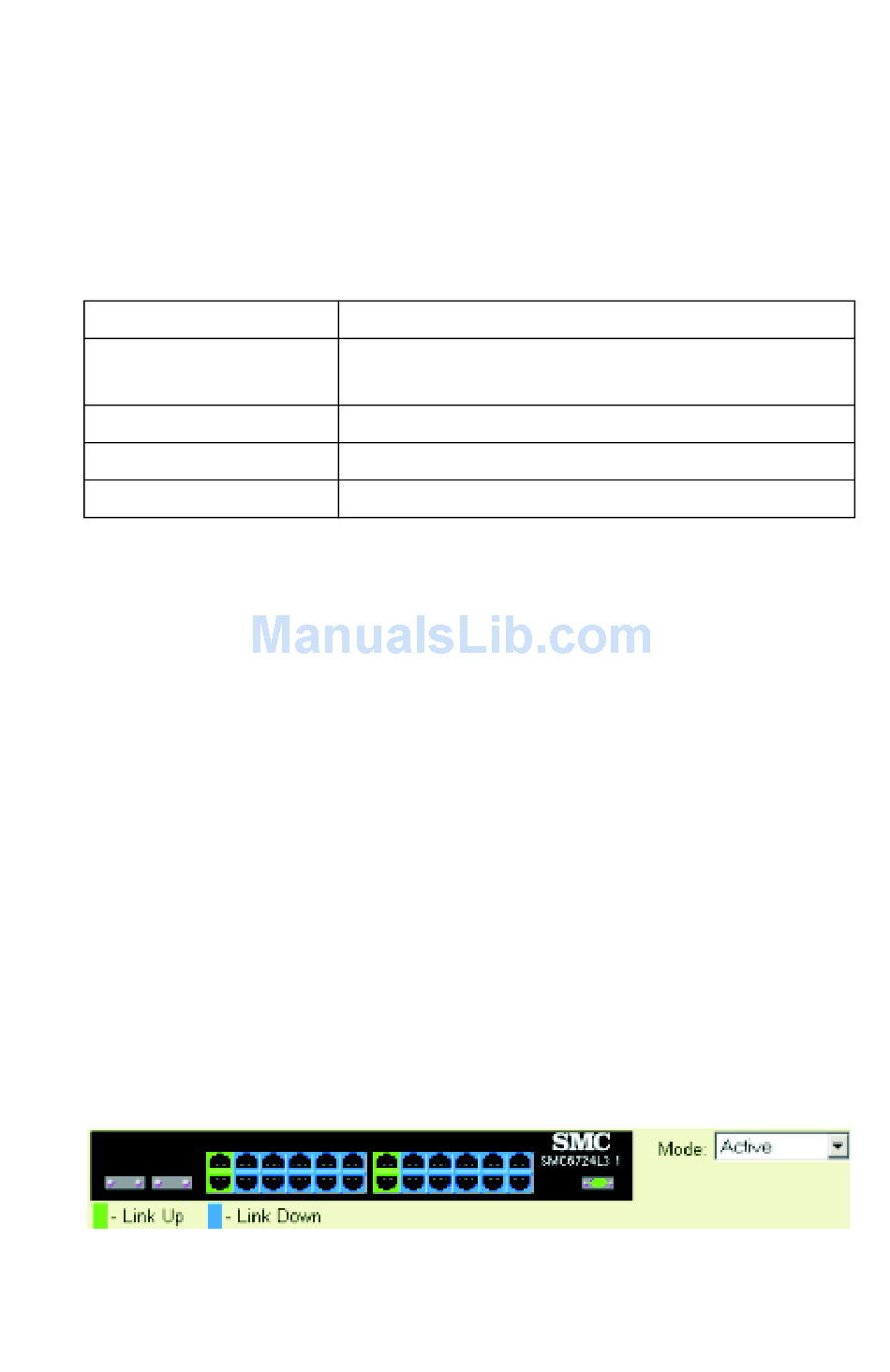

The Web agent displays an image of the switch's ports, indicating whether
each link is up or down. The Mode can be set to display different
information for the ports, including Active (i.e., up or down), Duplex (i.e.,
half or full duplex), or Flow Control (i.e., with or without flow control).
Clicking on the image of a port opens the Port Configuration page as
described on page 3-67.
3-4
S
WITCH
Action
Cancels specified values and restores current values
prior to pressing "Apply" or "Apply Changes."
Immediately updates values for the current page.
Sets specified values to the system.
Sets specified values to the system.
5.x is configured as follows: Under the menu "Tools / Internet
Options / General / Temporary Internet Files / Settings," the
setting for item "Check for newer versions of stored pages"
should be "Every visit to the page."
refresh the screen after making configuration changes by
pressing the browser's refresh button.
