C
ONFIGURING THE
• Speed/Duplex Status – Shows the current speed and duplex mode.
(Auto, or fixed choice)
• Flow Control Status – Indicates type of flow control currently in use.
(IEEE 802.3x, Back-Pressure or None)
• Autonegotiation – Shows if auto-negotiation is enabled or disabled.
• Trunk Member
• Creation
via LACP.
1: Port Information only.
2: Trunk Information only

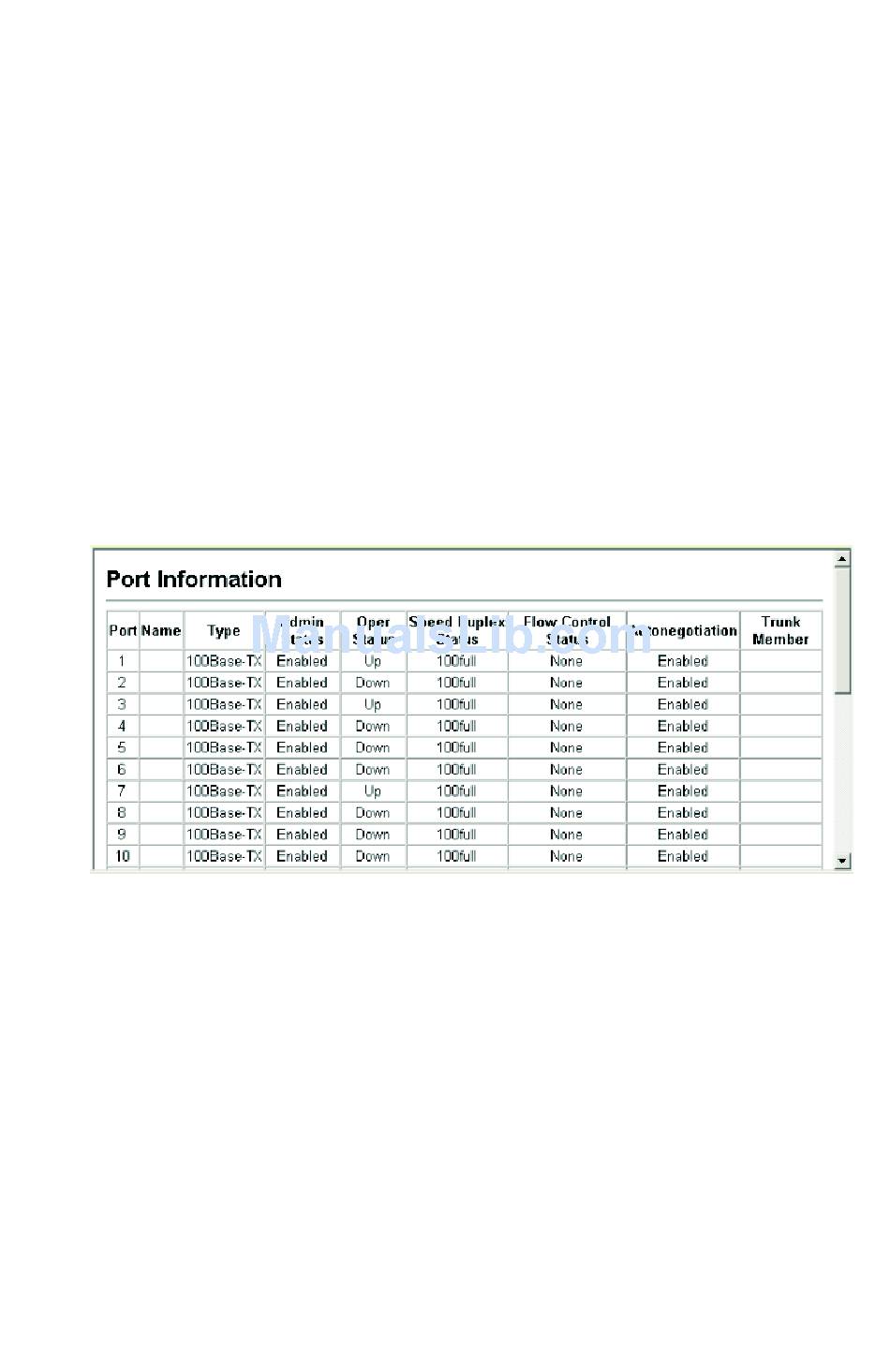

Web – Click Port, Port Information or Trunk Information.
Field Attributes (CLI)
Basic information:
• Port type – Indicates the port type. (1000BASE-T, 1000BASE-SX,
1000BASE-LX)
• MAC Address – The physical layer address for this port. (To access this
item on the Web, see "Setting the Switch's IP Address" on page 3-17.)
Configuration:
• Name – Interface label.
• Port admin – Shows if the interface is enabled or disabled (i.e., up or
down).
3-64
S
WITCH
1
– Shows if port is a trunk member.
2
– Shows if a trunk is manually configured or dynamically set
