Displaying Link State Database Information - SMC Networks SMC6724L3 Management Manual

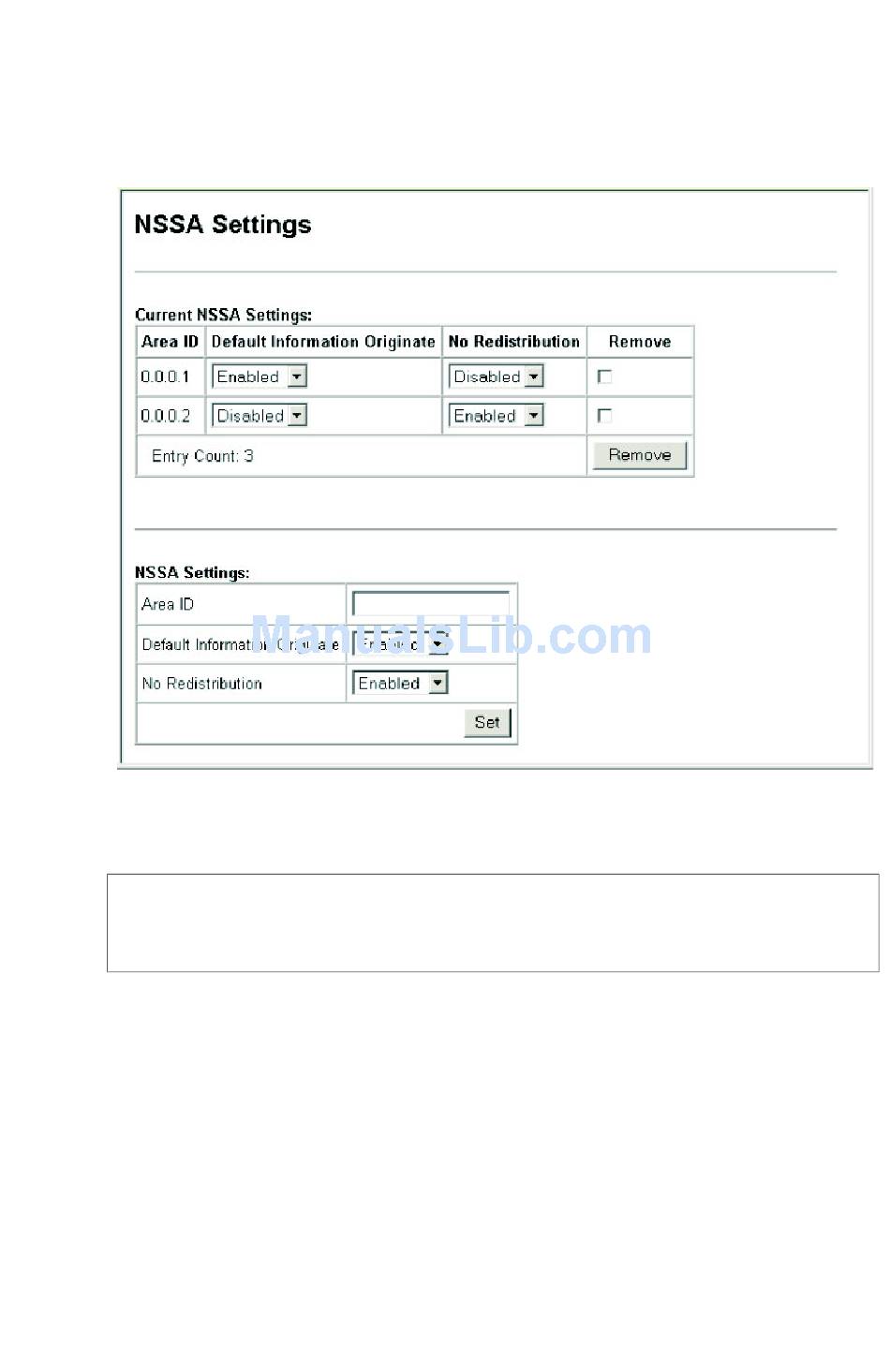

Web - Click Routing Protocol, OSPF, NSSA Settings. Create a new NSSA
or modify the routing behavior for an existing NSSA, and click Apply.
CLI - This example configures area 0.0.0.1 as a stub and sets the cost for
the default summary route to 10.
Console(config-router)#area 0.0.0.1 nssa
default-information-originate
Console(config-router)#area 0.0.0.2 nssa no-redistribution
Console(config-router)#

Displaying Link State Database Information

OSPF routers advertise routes using Link State Advertisements (LSAs).
The full collection of LSAs collected by a router interface from the
attached area is known as a link state database. Routers that are connected
to multiple interfaces will have a separate database for each area. Each
router in the same area should have an identical database describing the
topology for that area, and the shortest path to external destinations.
IP R
OUTING
