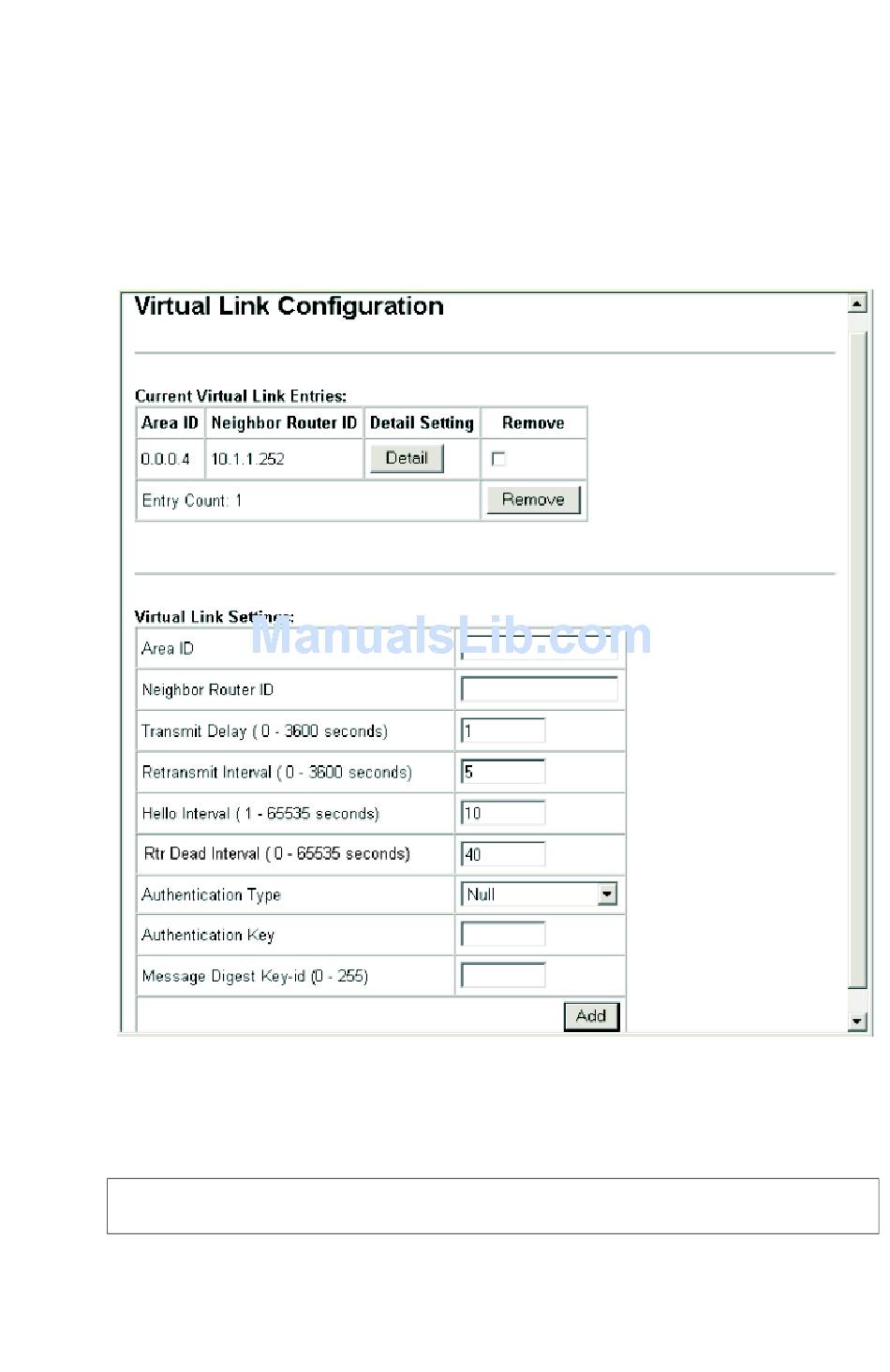

Web - Click Routing Protocol, OSPF, Virtual Link Configuration. To
create a new virtual link, specify the Area ID and Neighbor Router ID,
configure the link attributes, and click Add. To modify the settings for an
existing link, click the Detail button for the required entry, modify the link
settings, and click Set.
CLI - This example configures a virtual link from the ABR adjacent to
area 0.0.0.4, through a transit area to the neighbor router 10.1.1.252 at the
other end of the link which is adjacent to the backbone.
Console(config-router)#area 0.0.0.0 virtual-link 10.1.1.252
Console(config-router)#
