Remove the Drive Backplane
"Remove the DVD Drive" on page 113
■
"Remove a Fan Module" on page 132
■
Remove all fan modules.
"Remove the Fan Tray" on page 80
■
"Rotate the Drive Cage to the Service Position" on page 82
■
3.

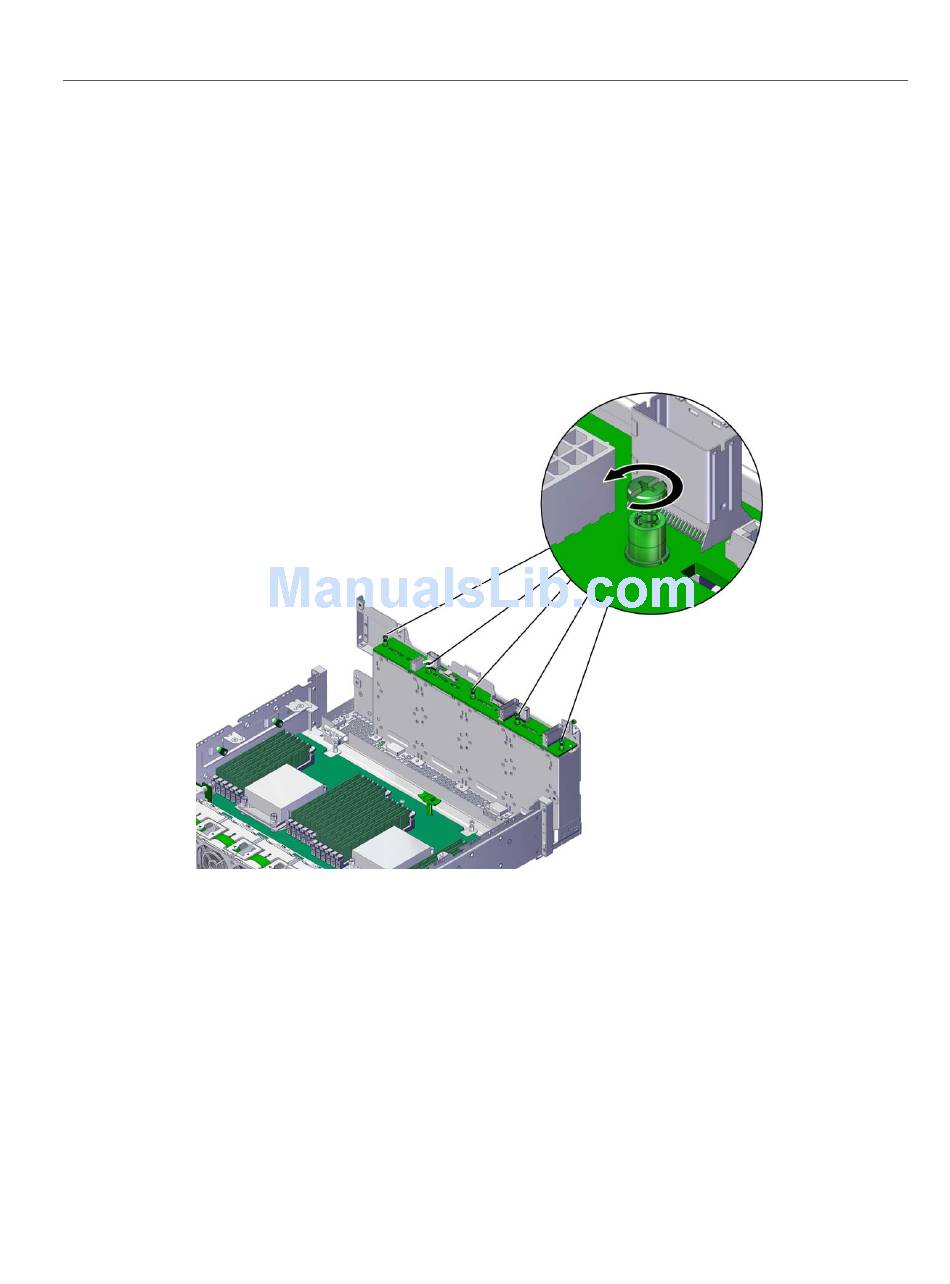

Loosen the five screws from the drive backplane.
174
Netra Server X5-2 Service Manual • October 2016
