System Cable Configuration

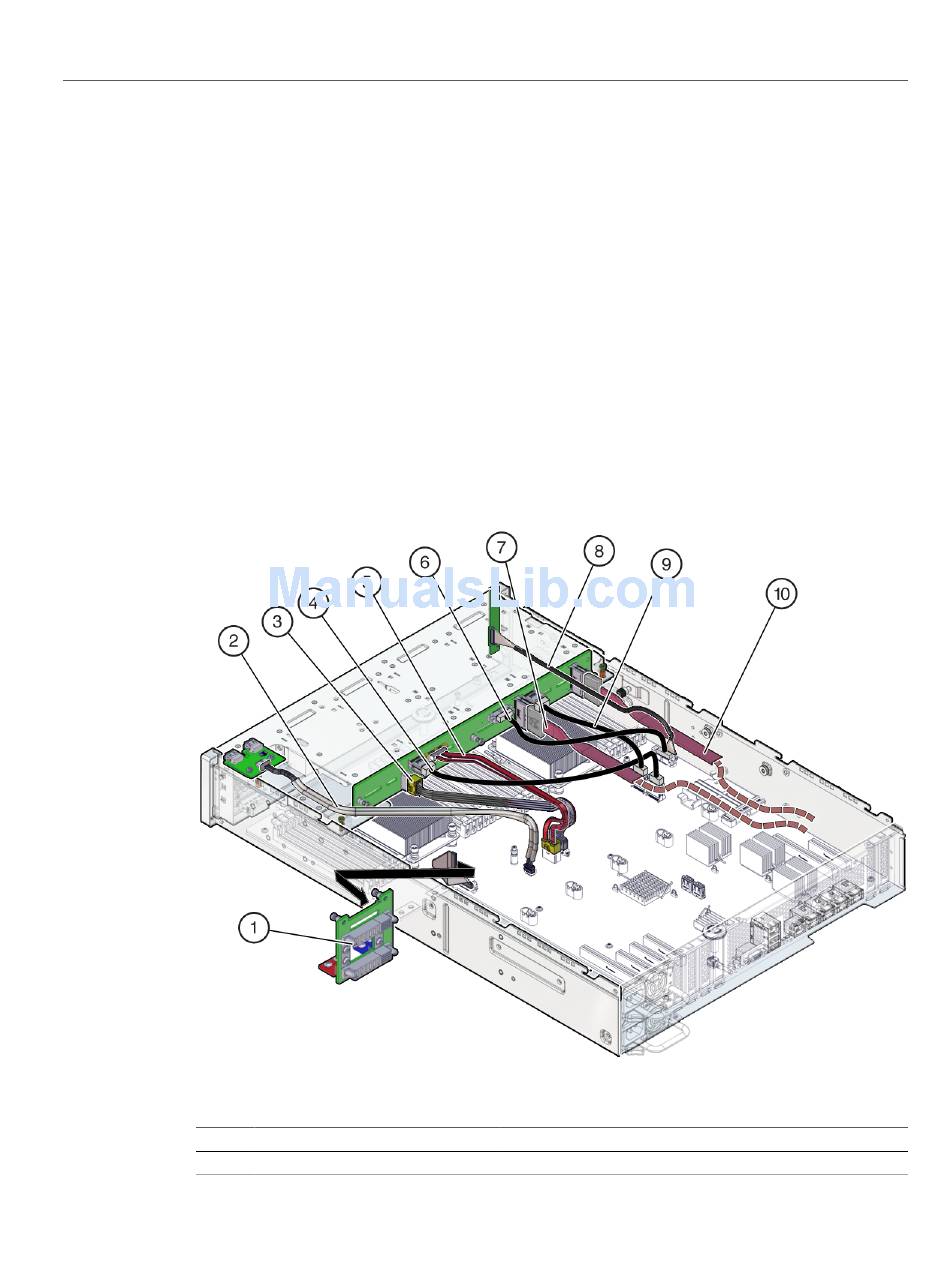

This illustration identifies system cables routed throughout the chassis interior.
No.
1
156 Netra Server X5-2 Service Manual • October 2016
Description
PDB signal cable
Links
"Remove the PDB Signal Cable" on page 167
