3.

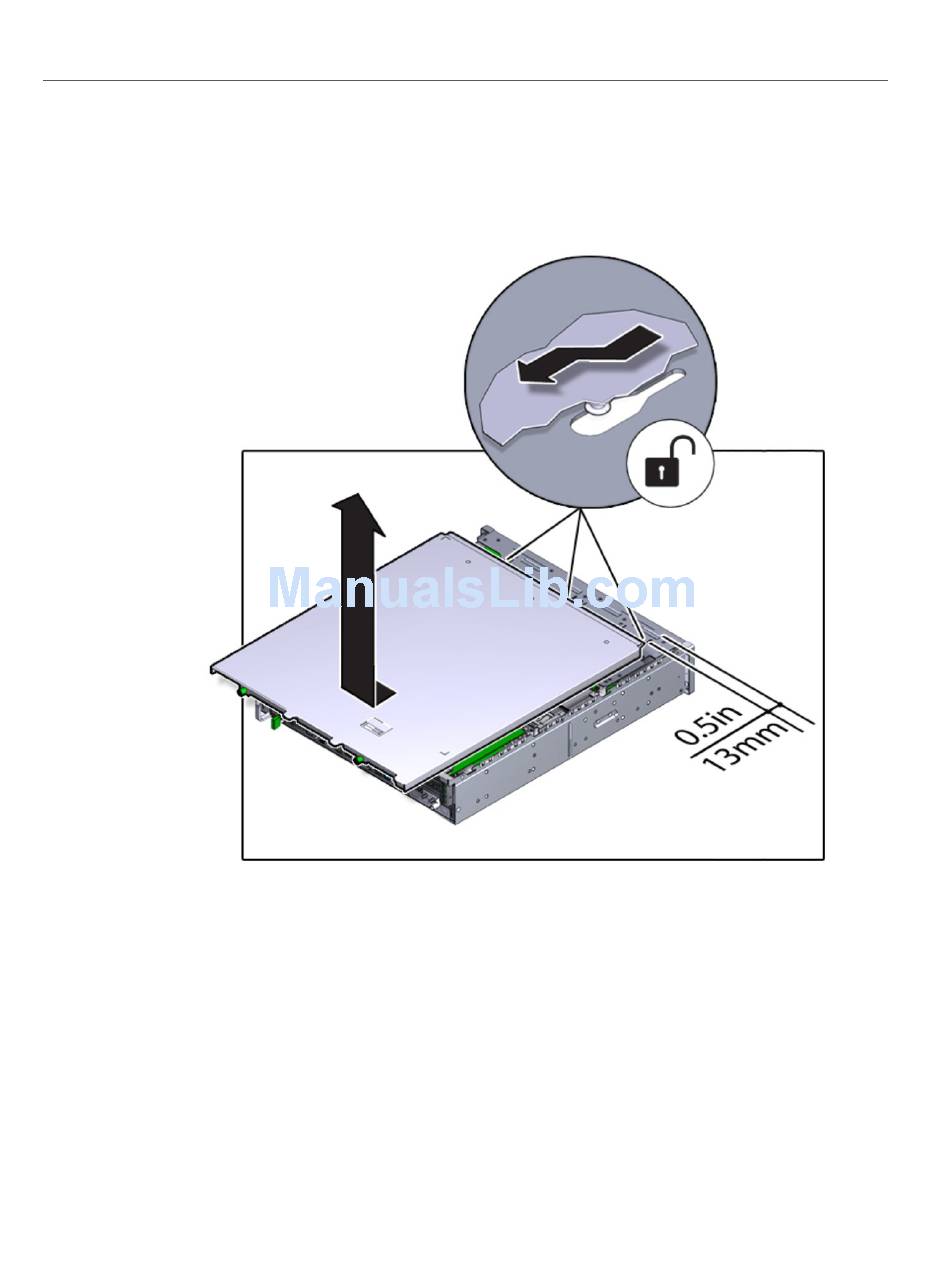

Slide the top cover rearward 0.5 in (13 mm) and lift it straight up and off the
chassis.
Set the top cover aside.
Consider your next step.
4.
Service these components:
■
"Servicing Fan Modules" on page 129
■
"Servicing PCIe Cards" on page 137
■
"Servicing the Battery" on page 145
■
"Servicing the USB Flash Drive" on page 149
■
Or, remove the fan tray.
■
Remove the Top Cover
Preparing for Service
79
