Remove the Air Duct

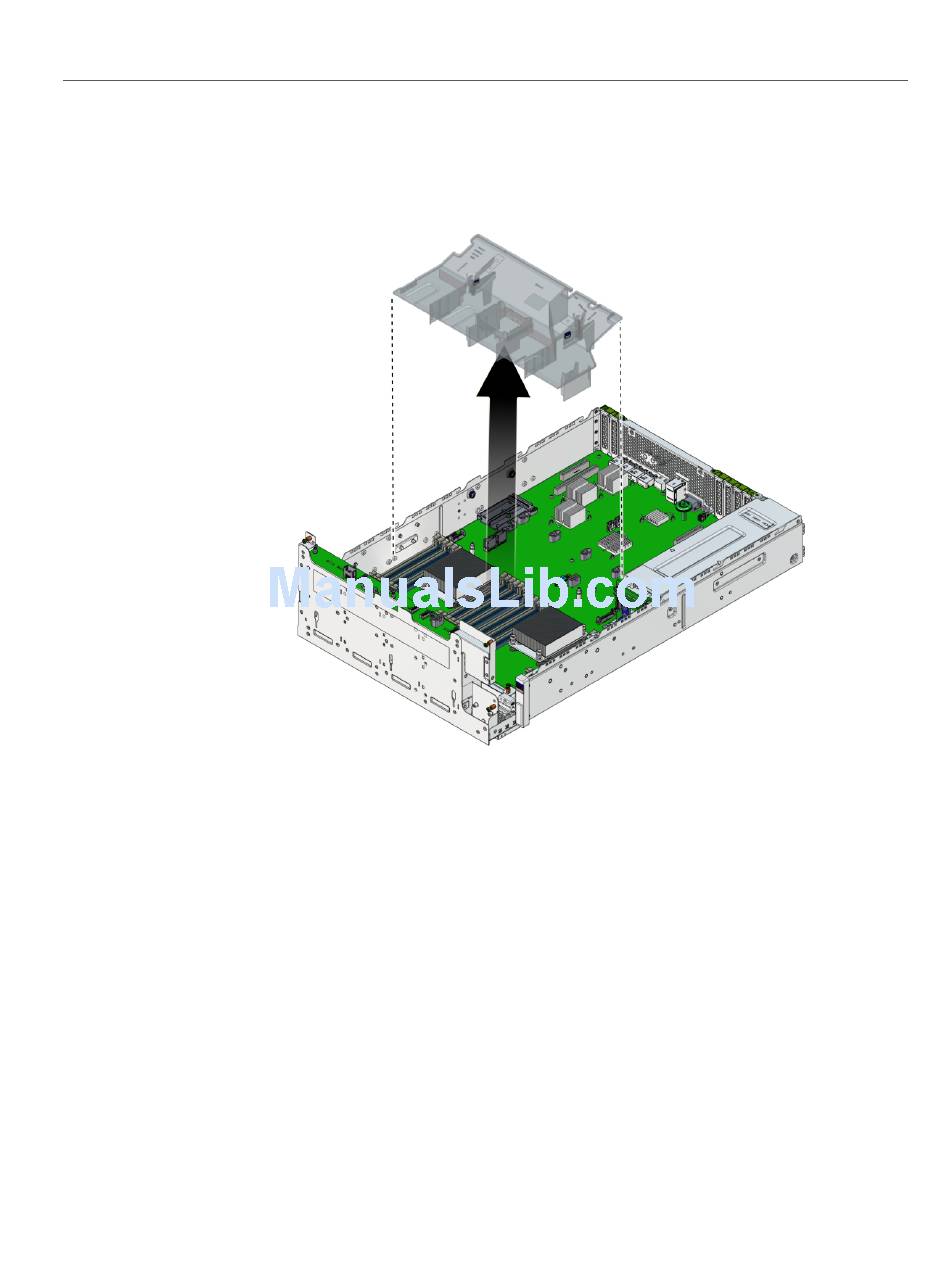

6. Lift the air duct straight up and off the alignment pins.
Set the air duct aside.
7.
Consider your next step.
8.
Service these components:
■
■
■
Or, remove the PSU duct.
■
See
Related Information
"Rotate the Drive Cage to the Service Position" on page 82
■
"Install the Air Duct" on page 249
■
"Remove the PSU Duct" on page 87
■
86 Netra Server X5-2 Service Manual • October 2016
"Servicing DIMMs" on page 181
"Servicing the LED Board" on page 211
"Remove the PSU Duct" on page 87.
