Install the PDB Signal Cable

Installing a cable is a cold-service operation. You must power off the server before installing the
cable.
Consider your first step.
1.
If you are replacing a cable, remove the faulty or obsolete cable first, then return to this
■
procedure,
See "Remove the PDB Signal Cable" on page
If you are installing a cable as part of another component's removal or installation
■
procedure, go to

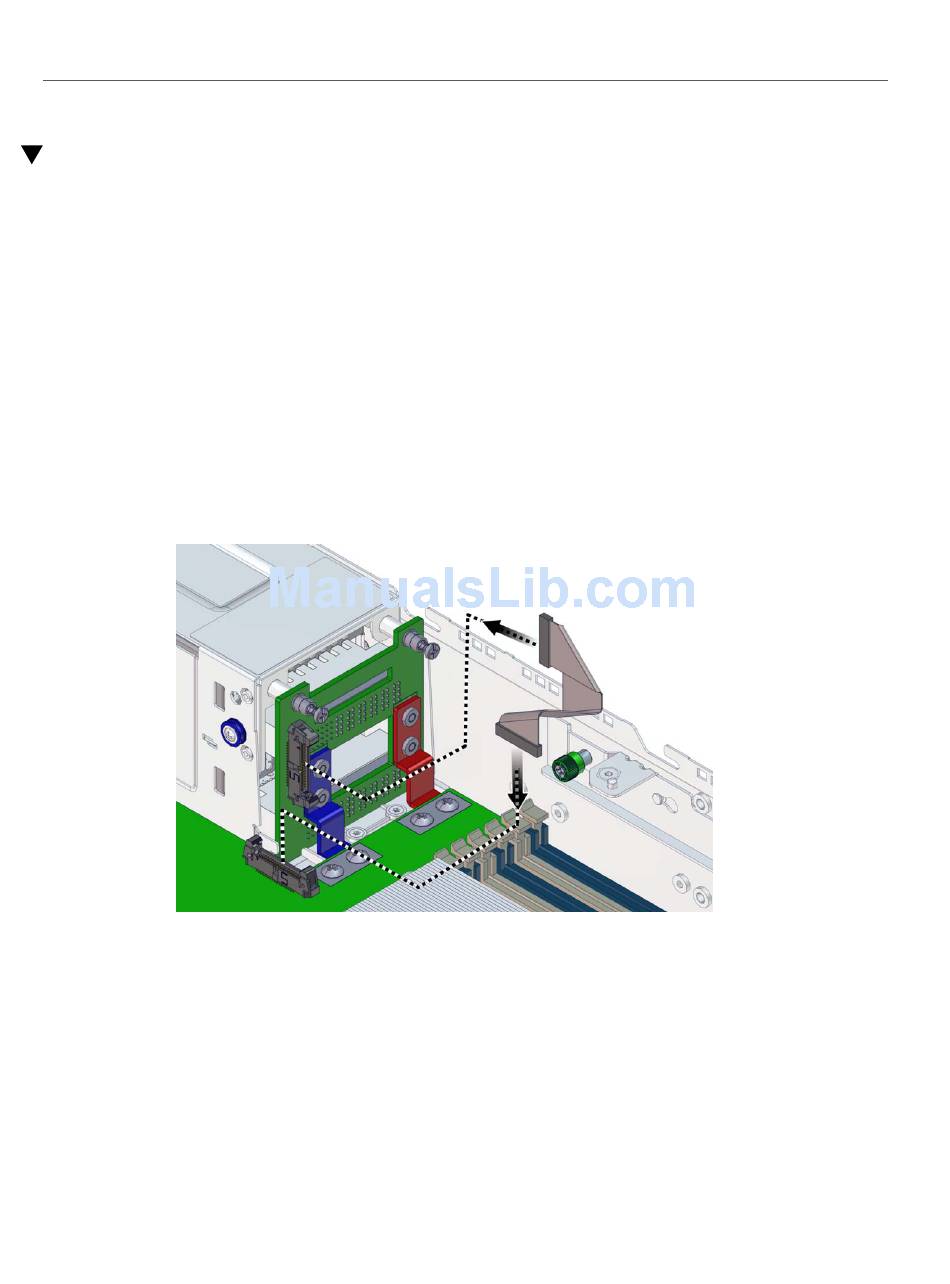

Connect the PDB signal cable to the motherboard connector and the PDB.
2.
3. Review this information, and complete these prerequisites in this order.
"Install the PSU Duct" on page 248
■
"Install the Air Duct" on page 249
■
"Secure the Drive Cage" on page 253
■
"Install the Fan Tray" on page 255
■
"Install a Fan Module" on page 133
■
Install all fan modules.
"Install the Filter" on page 91
■
Step 2.
Step 2.
Install the PDB Signal Cable
167.
Servicing the System Cables 169
